Removal Procedure

Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
Remove the water deflector. Refer to Water Deflector Replacement - Door .
Remove the door latch assembly. Refer to Latch Replacement - Front Door .
Remove the 2 screws (2) that retain the lock actuator (1) to the latch.

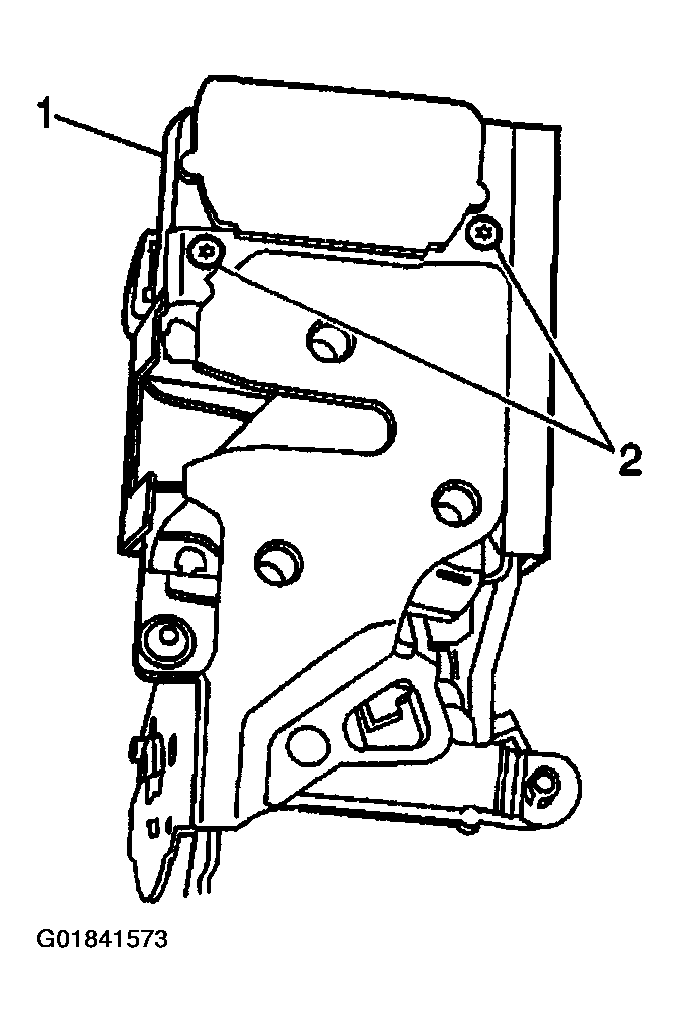

Fig 1: Removing 2 Screws That Retain Lock Actuator To Latch - Rear inside
Courtesy of GENERAL MOTORS CORP.
Simultaneously lift up on and rotate the actuator away from the latch in order to disengage the rubber bumper (1) from the latch.
Remove the actuator from the latch.

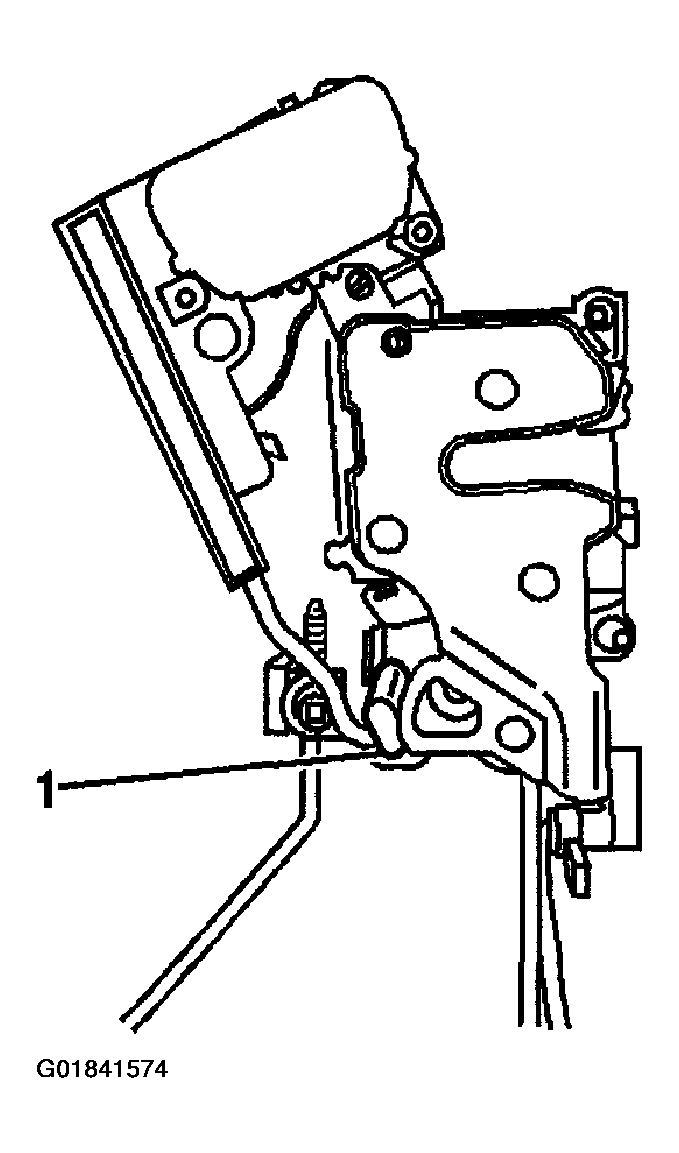

Fig 2: Removing Actuator From Latch - Rear inside
Courtesy of GENERAL MOTORS CORP.
