Removal Procedure

CAUTION: Before removing the spring, cover the spring with a towel to prevent the spring from flying and possibly causing damage or personal injury.

Remove the door hinge spring using the J 36604 .

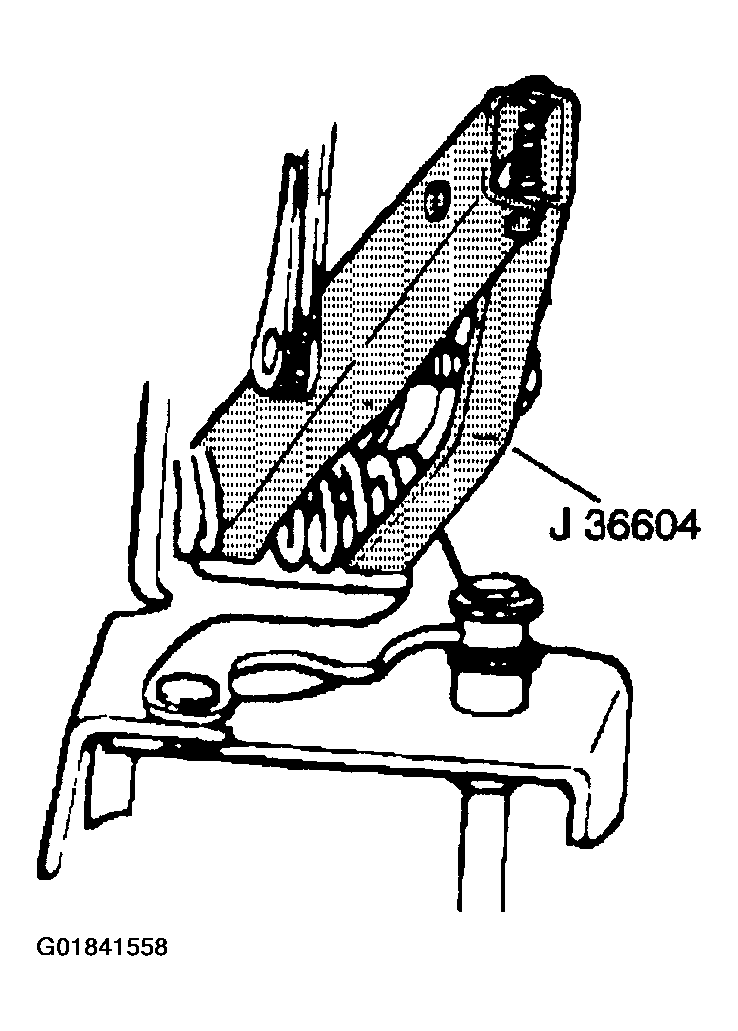

Fig 1: Removing Door Hinge Spring Using J 36604
Courtesy of GENERAL MOTORS CORP.
Remove the C-clips that retain the door hinge roller pins.
Support the door in the open position.
Remove the door hinge roller pins from the vehicle.
Use a soft-faced hammer and locking pliers in order to remove the hinge pins.
Position the door away from the hinge. Remove and discard the old bushings.

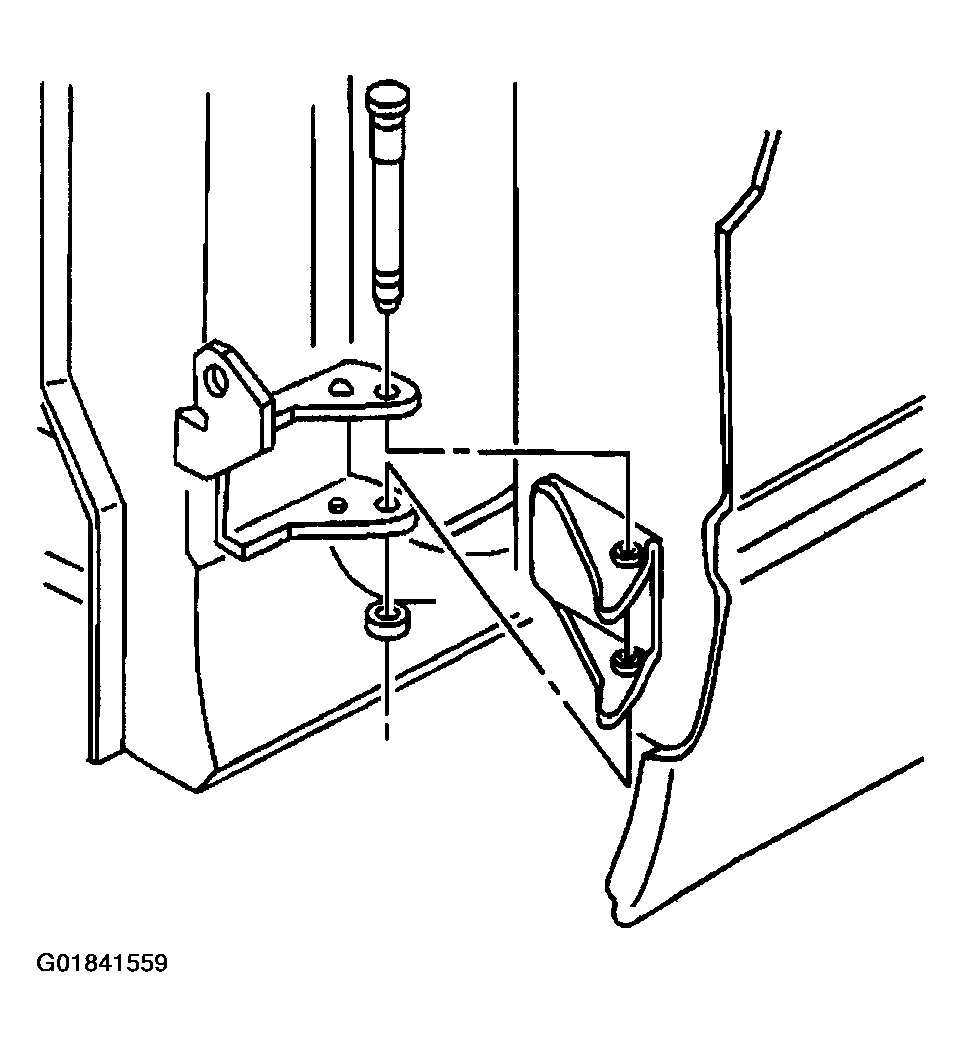

Fig 2: Removing Door Hinge Roller Pins From Vehicle
Courtesy of GENERAL MOTORS CORP.
