Removal Procedure

  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door (Utility)  or Trim Panel Replacement - Side Rear Door (Extended Cab P/U Only) .
  2. Remove the inside door handle rod (2).
  3. Remove the inside door handle retaining rivets.
  4. Remove the inside door handle from the door by sliding the handle rearward.

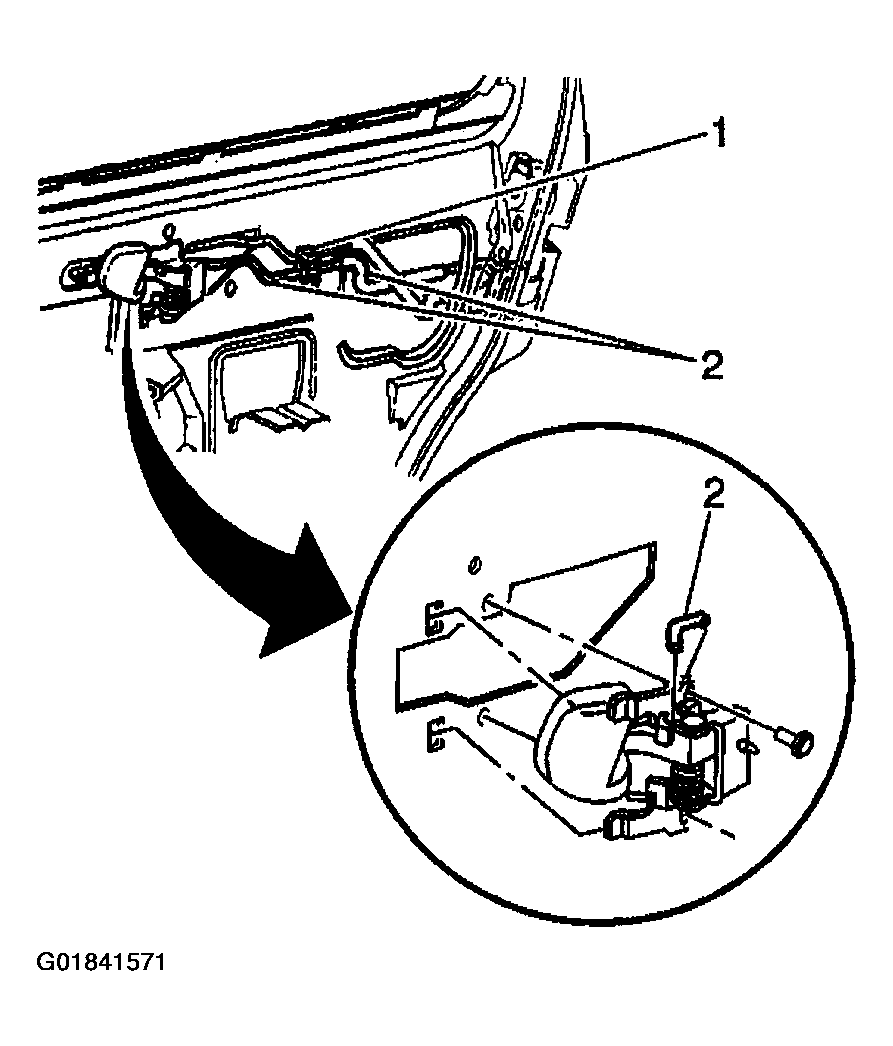

    Fig 1: Removing Inside Door Handle Rod - Rear inside
    G01841571Courtesy of GENERAL MOTORS CORP.
