Power Windows Inoperative - All

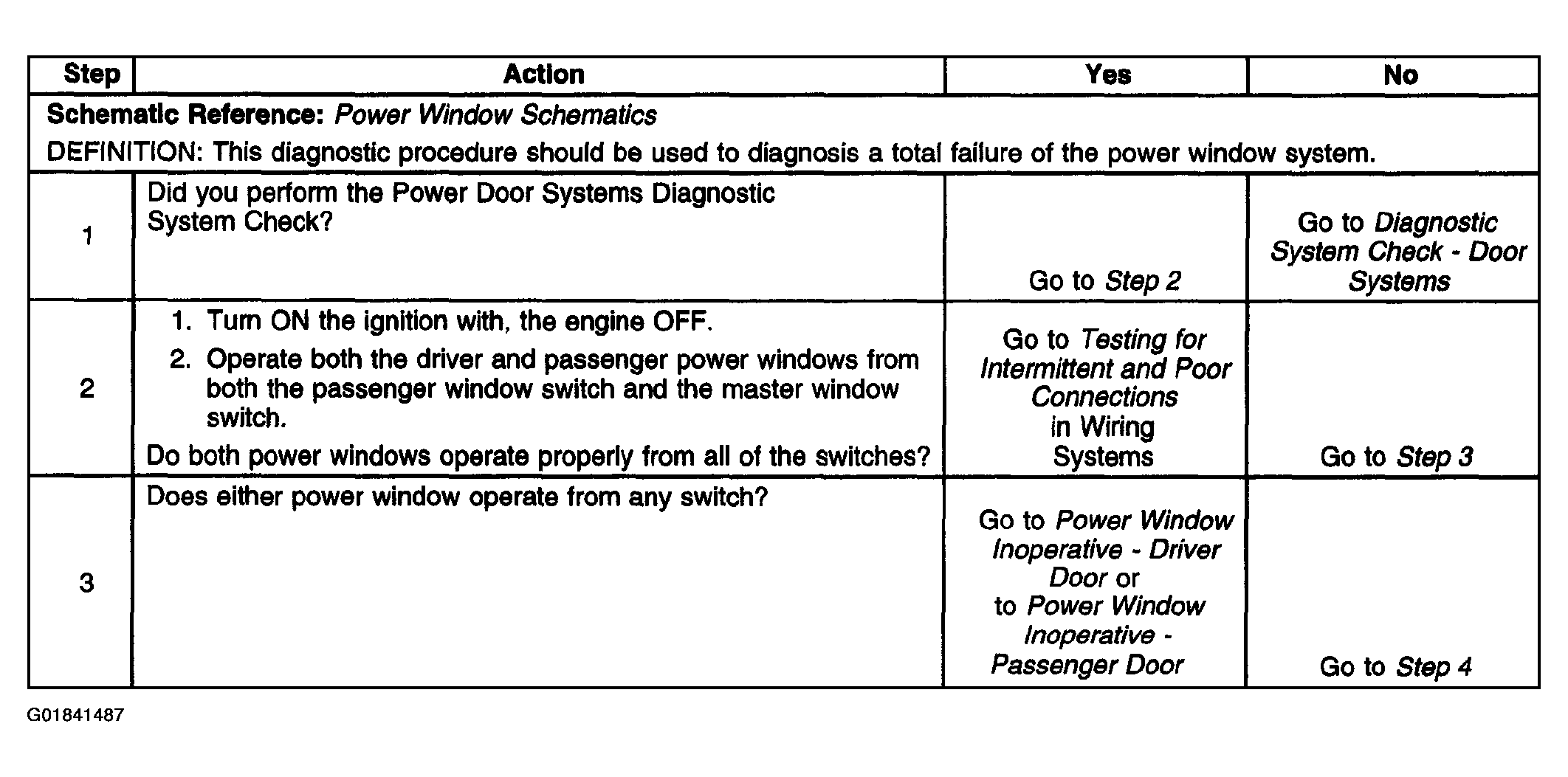

Fig 1: Power Windows Inoperative - All (1 Of 2)
G01841487Courtesy of GENERAL MOTORS CORP.

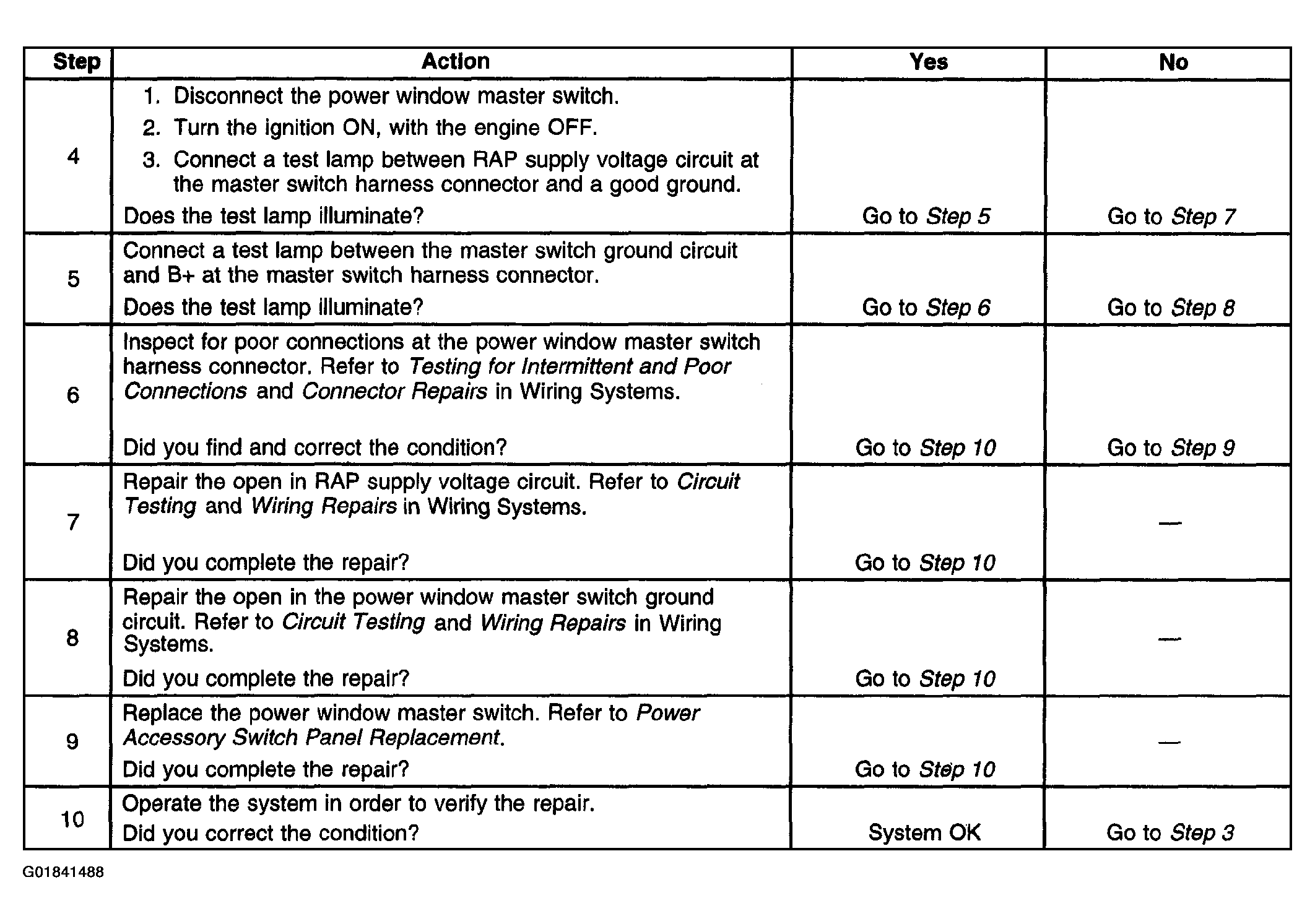

Fig 2: Power Windows Inoperative - All (2 Of 2)
G01841488Courtesy of GENERAL MOTORS CORP.

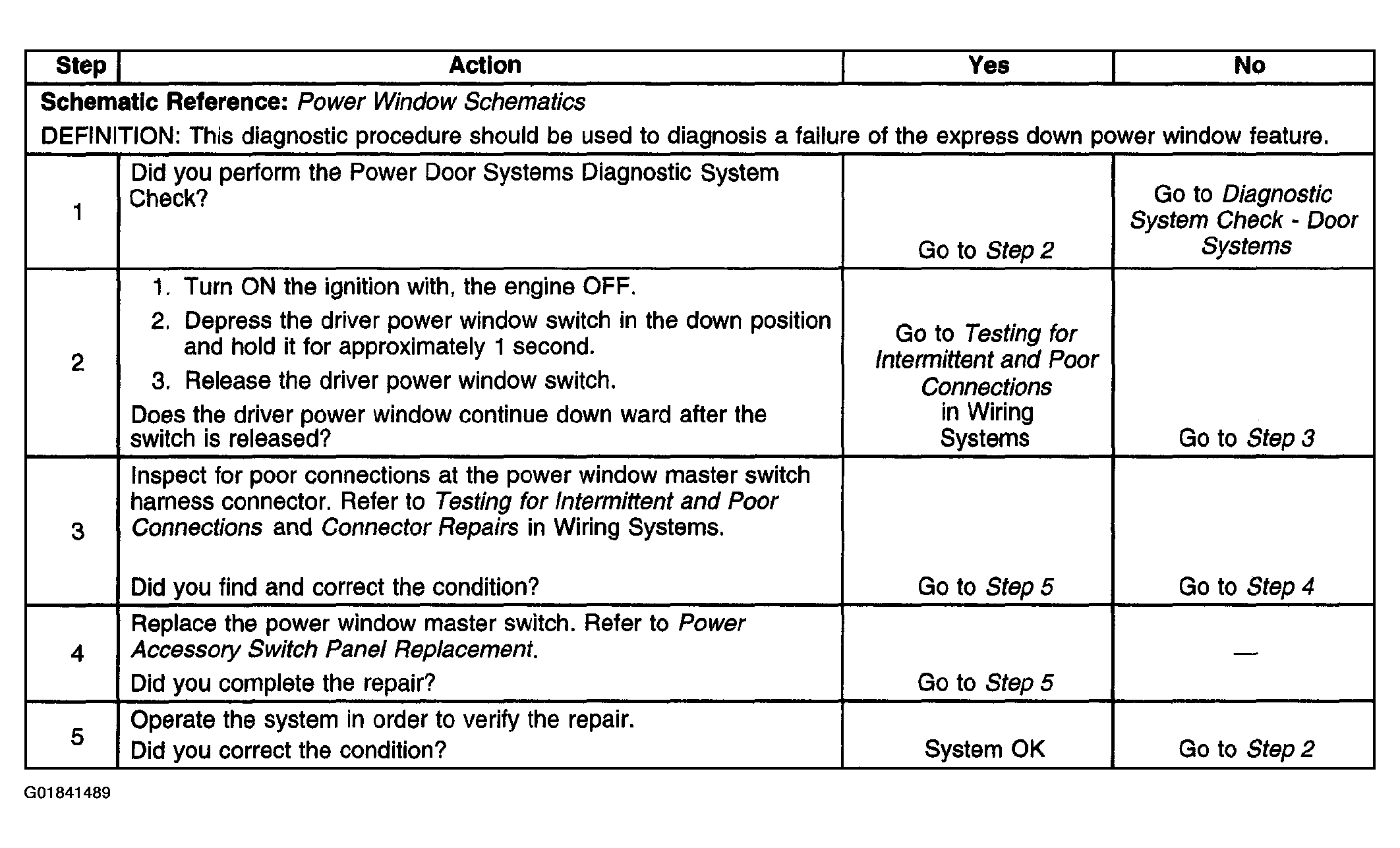

Fig 3: Power Windows Inoperative - Express Down Function
G01841489Courtesy of GENERAL MOTORS CORP.
