Power Window Inoperative - Passenger Door

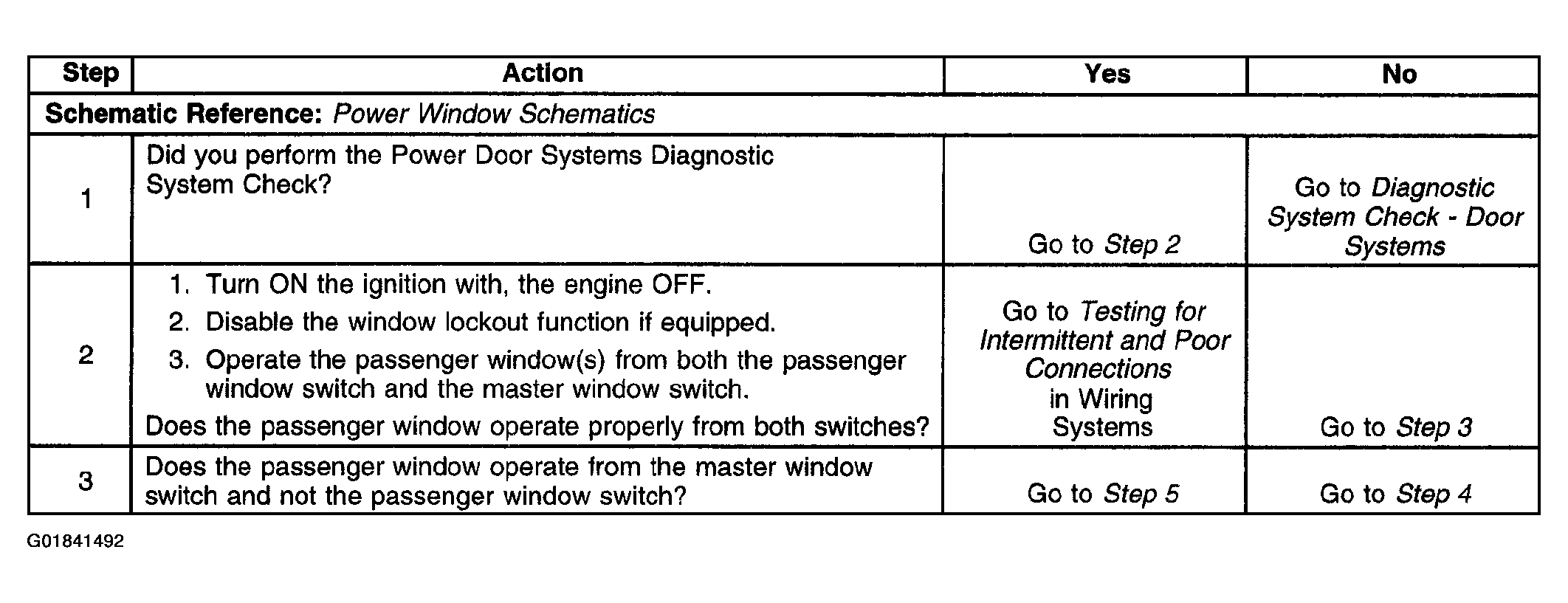

Fig 1: Power Window Inoperative - Passenger Door (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

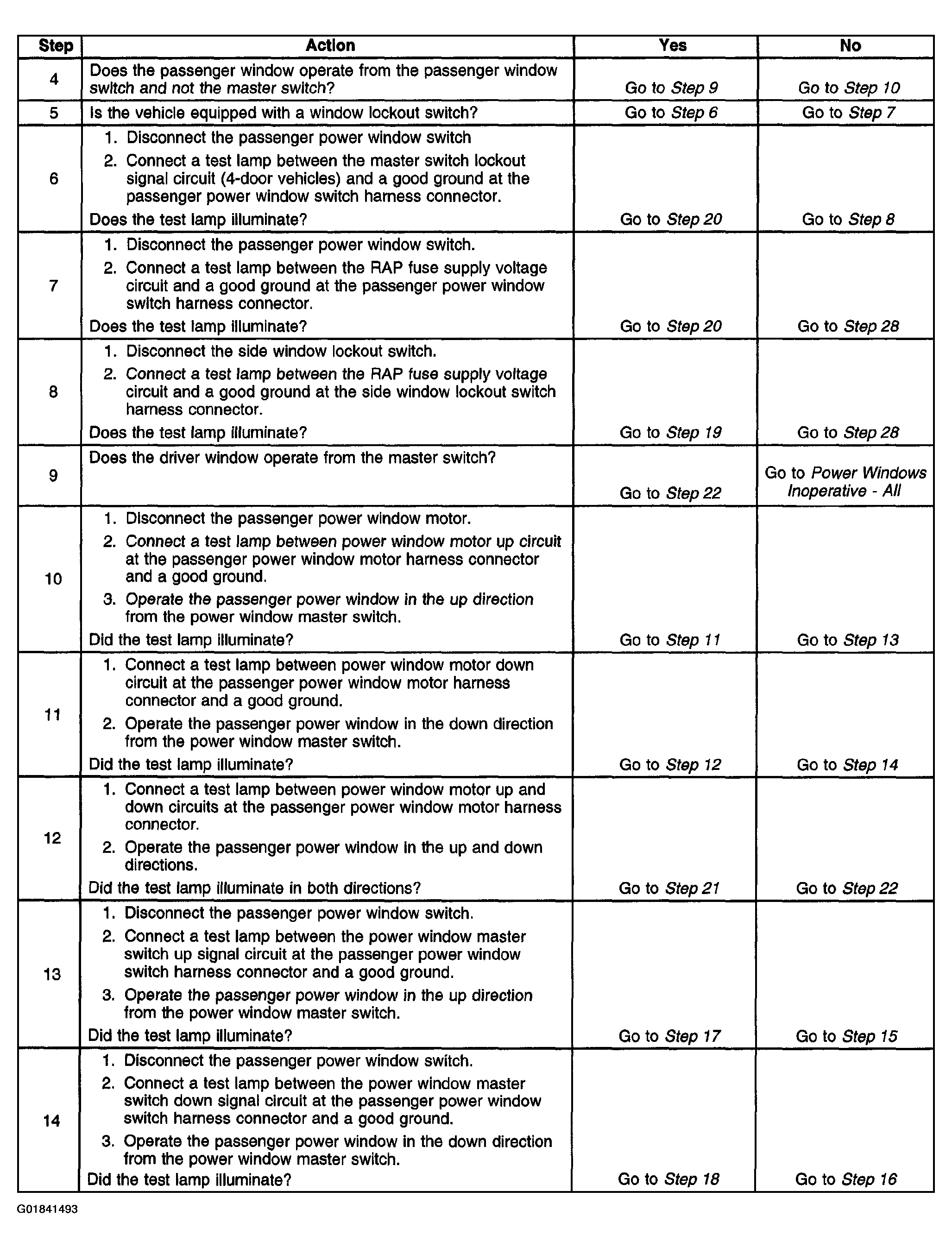

Fig 2: Power Window Inoperative - Passenger Door (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

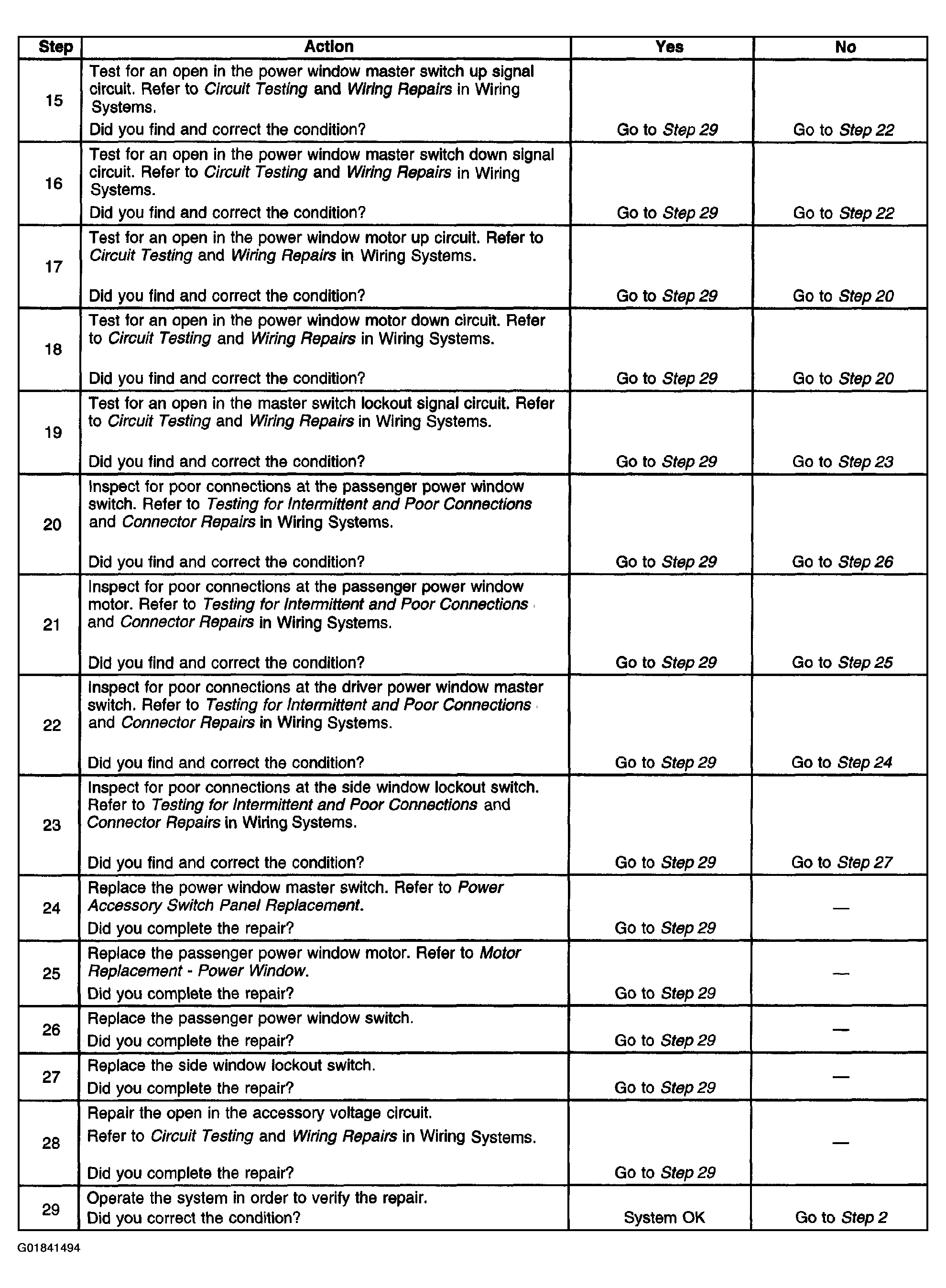

Fig 3: Power Window Inoperative - Passenger Door (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
