Power Window Inoperative - Driver Door: Overview

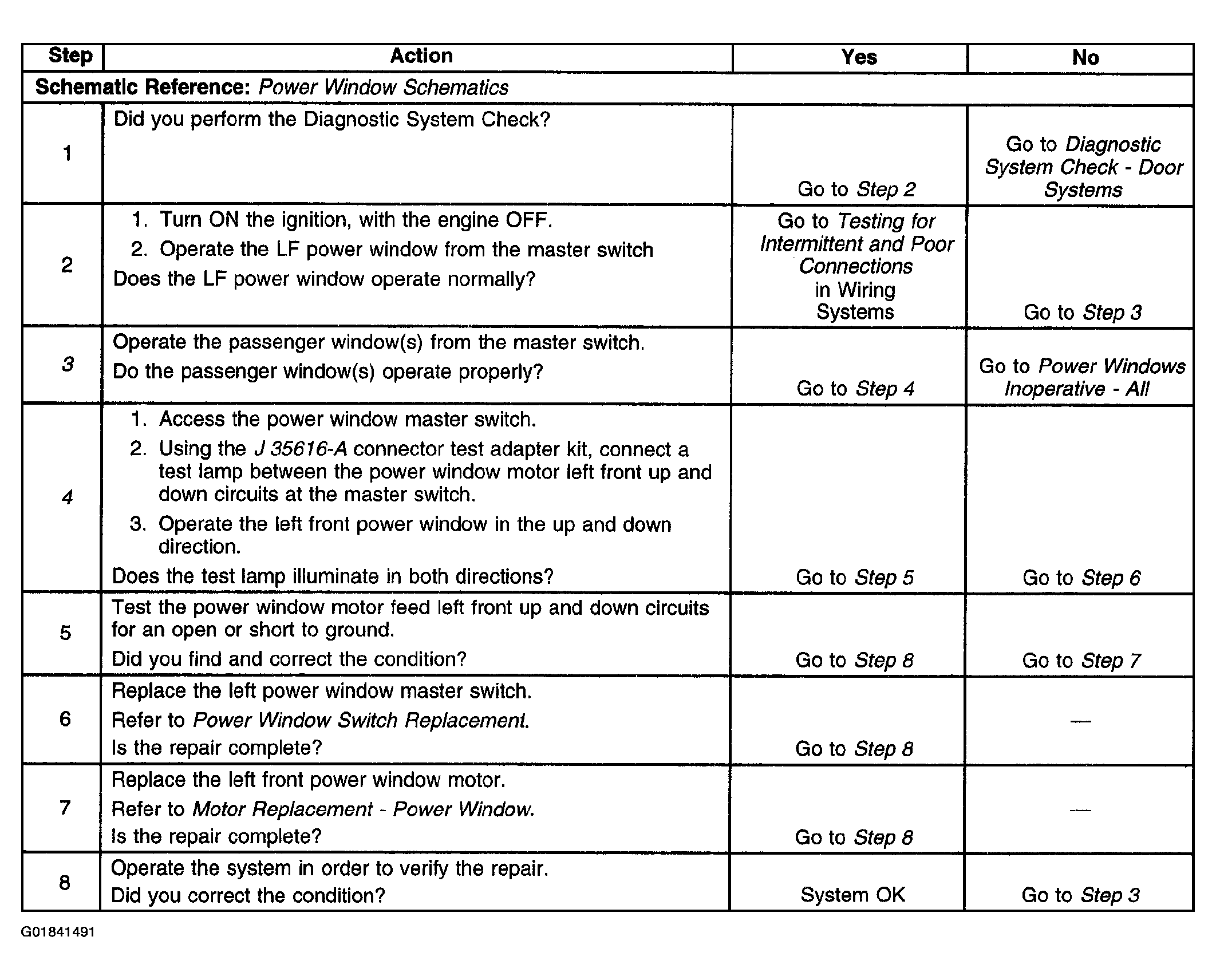

Fig 1: Power Window Inoperative - Driver Door
G01841491Courtesy of GENERAL MOTORS CORP.

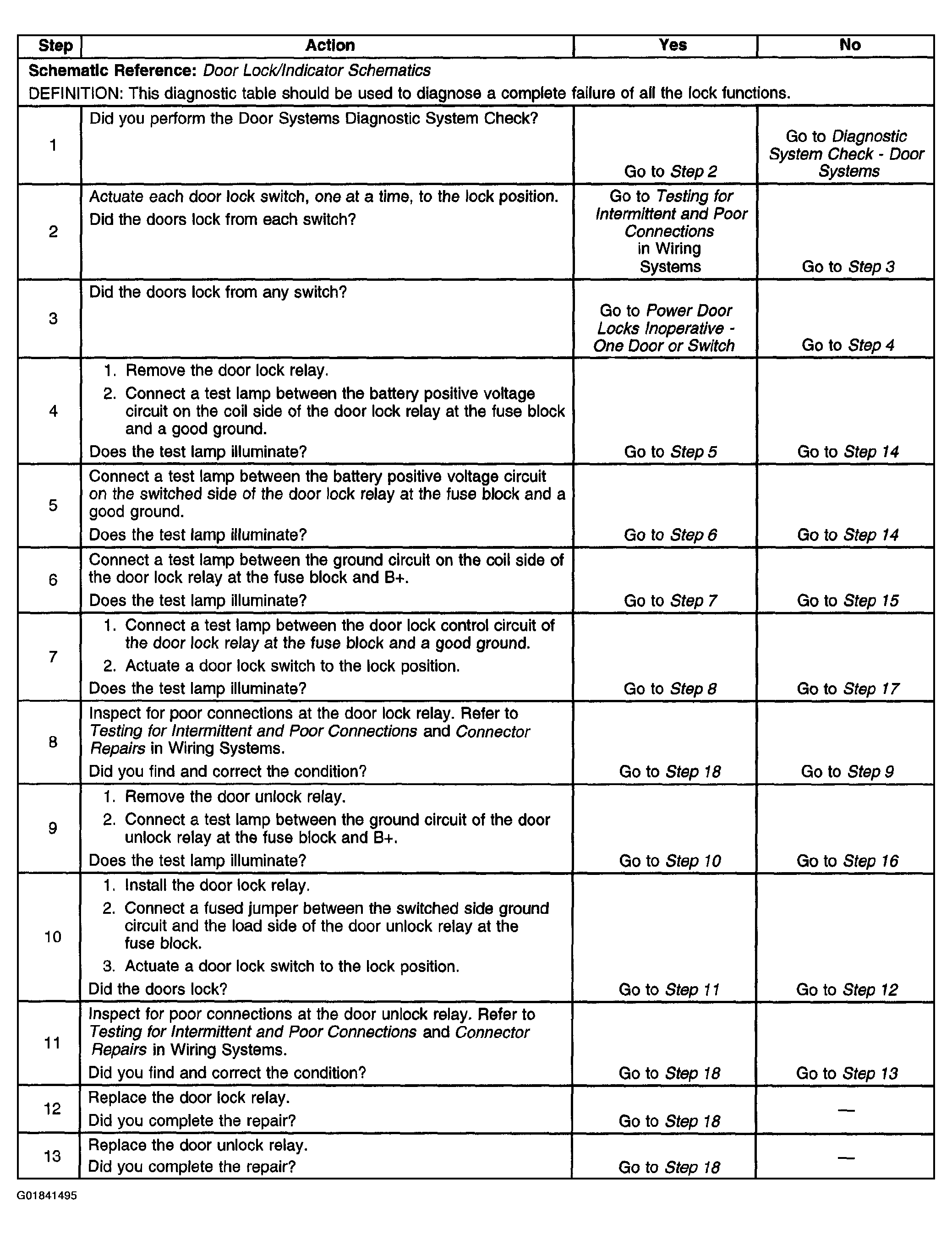

Fig 2: Power Door Locks - Lock Inoperative Unlock Operates - Driver Door (1 Of 2)
G01841495Courtesy of GENERAL MOTORS CORP.

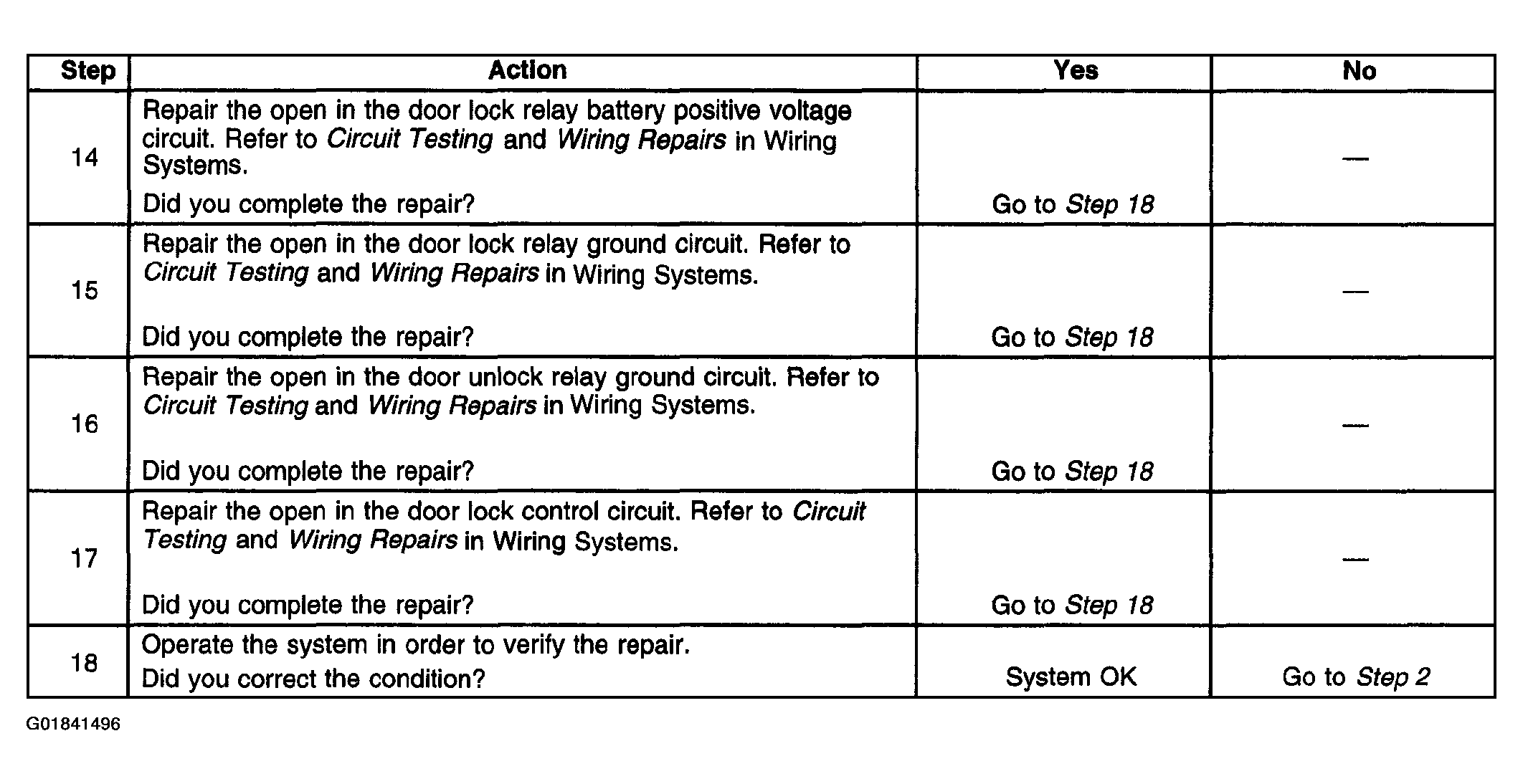

Fig 3: Power Door Locks - Lock Inoperative Unlock Operates - Driver Door (2 Of 2)
G01841496Courtesy of GENERAL MOTORS CORP.
