Power Mirrors - Folding Inoperative

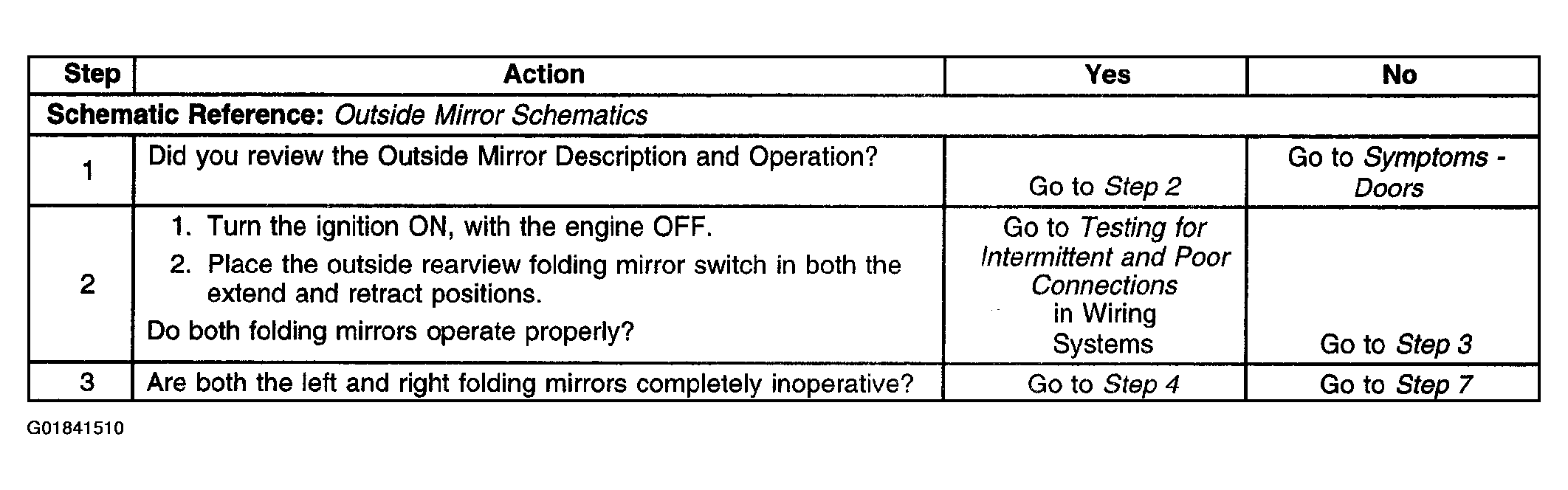

Fig 1: Power Mirrors - Folding Inoperative (1 Of 2)
G01841510Courtesy of GENERAL MOTORS CORP.

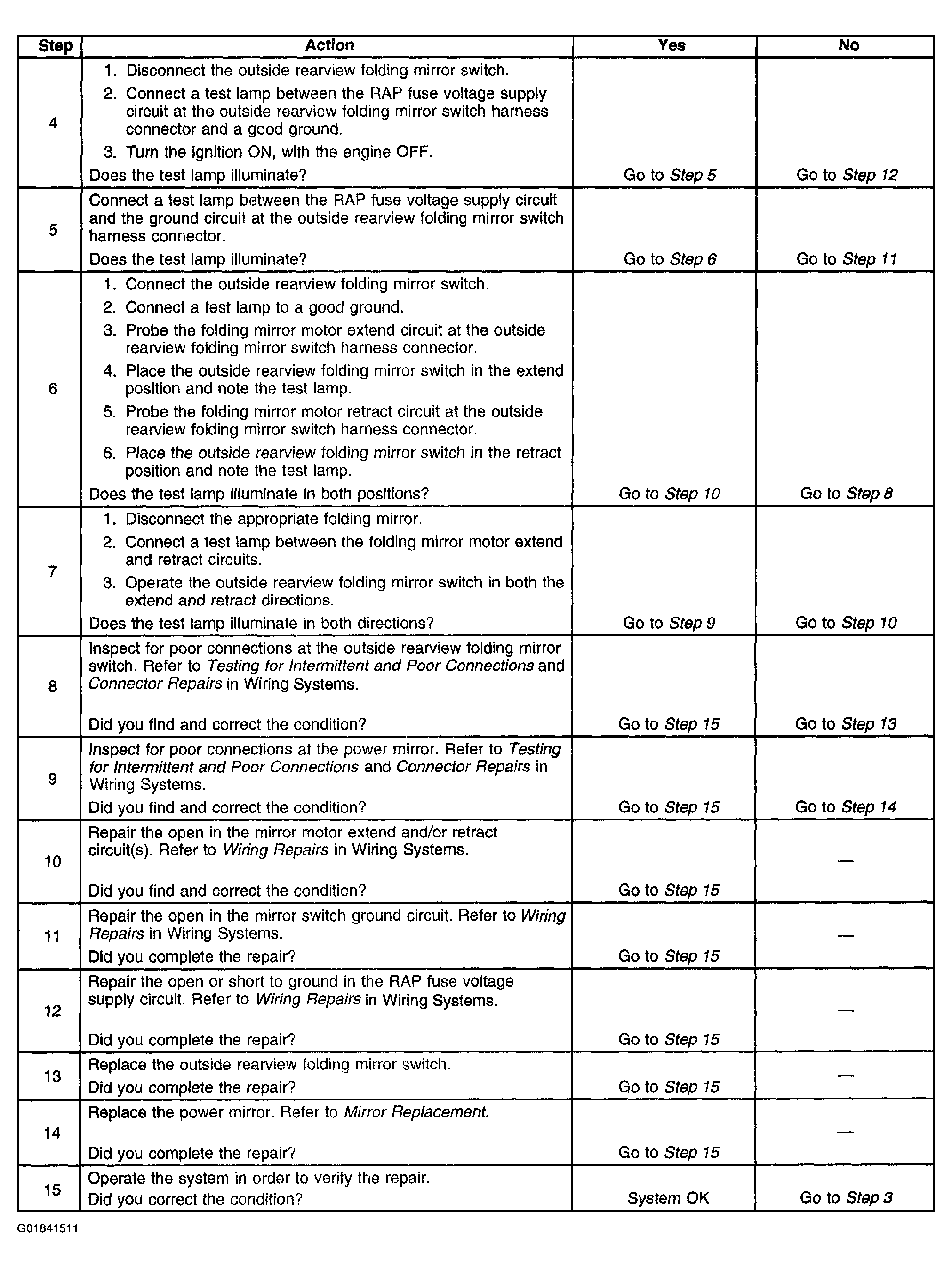

Fig 2: Power Mirrors - Folding Inoperative (2 Of 2)
G01841511Courtesy of GENERAL MOTORS CORP.
