Power Door Locks - Unlock Inoperative Lock Operates

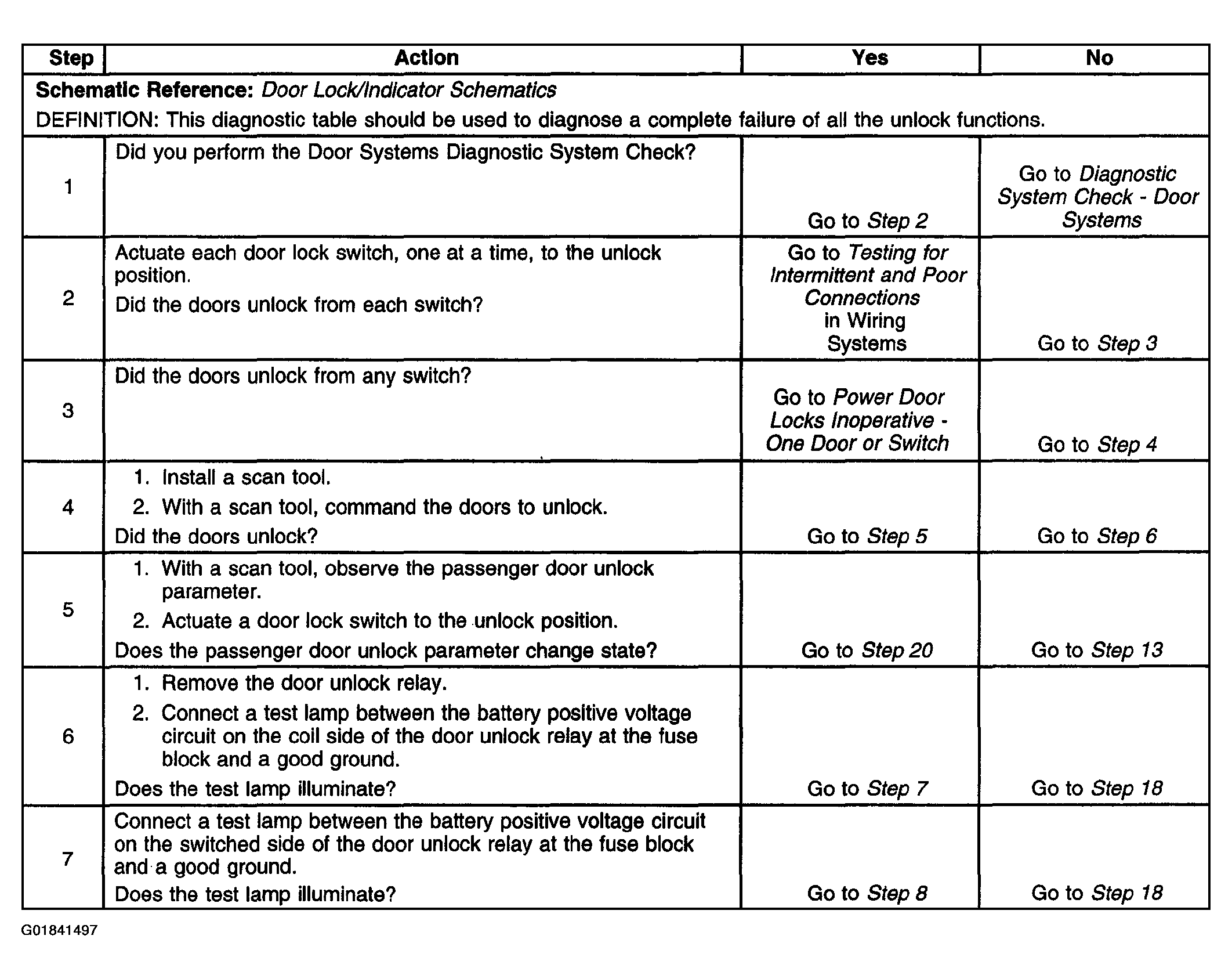

Fig 1: Power Door Locks - Unlock Inoperative Lock Operates (1 Of 2)
G01841497Courtesy of GENERAL MOTORS CORP.

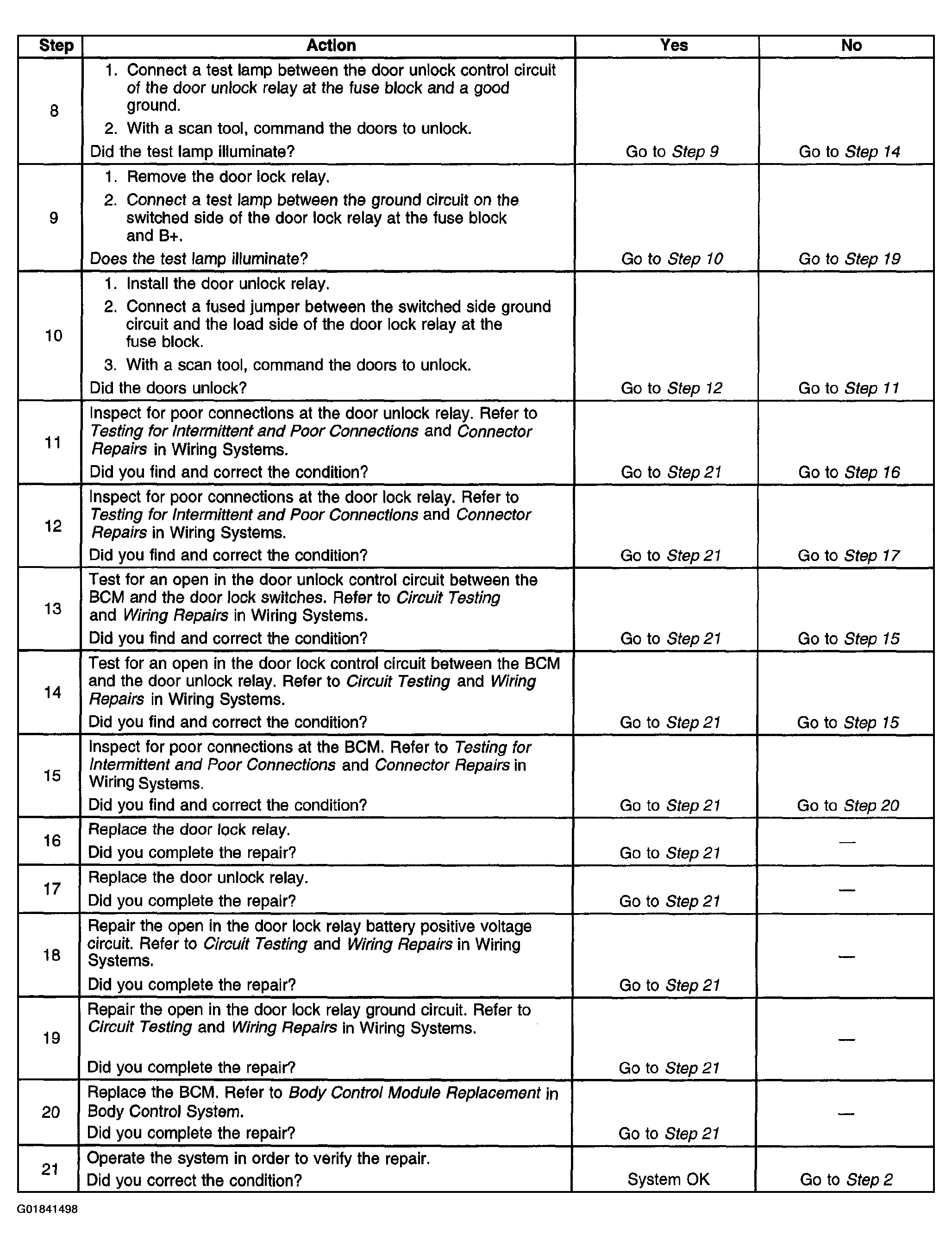

Fig 2: Power Door Locks - Unlock Inoperative Lock Operates (2 Of 2)
G01841498Courtesy of GENERAL MOTORS CORP.
