Power Door Lock Inoperative - Driver Door

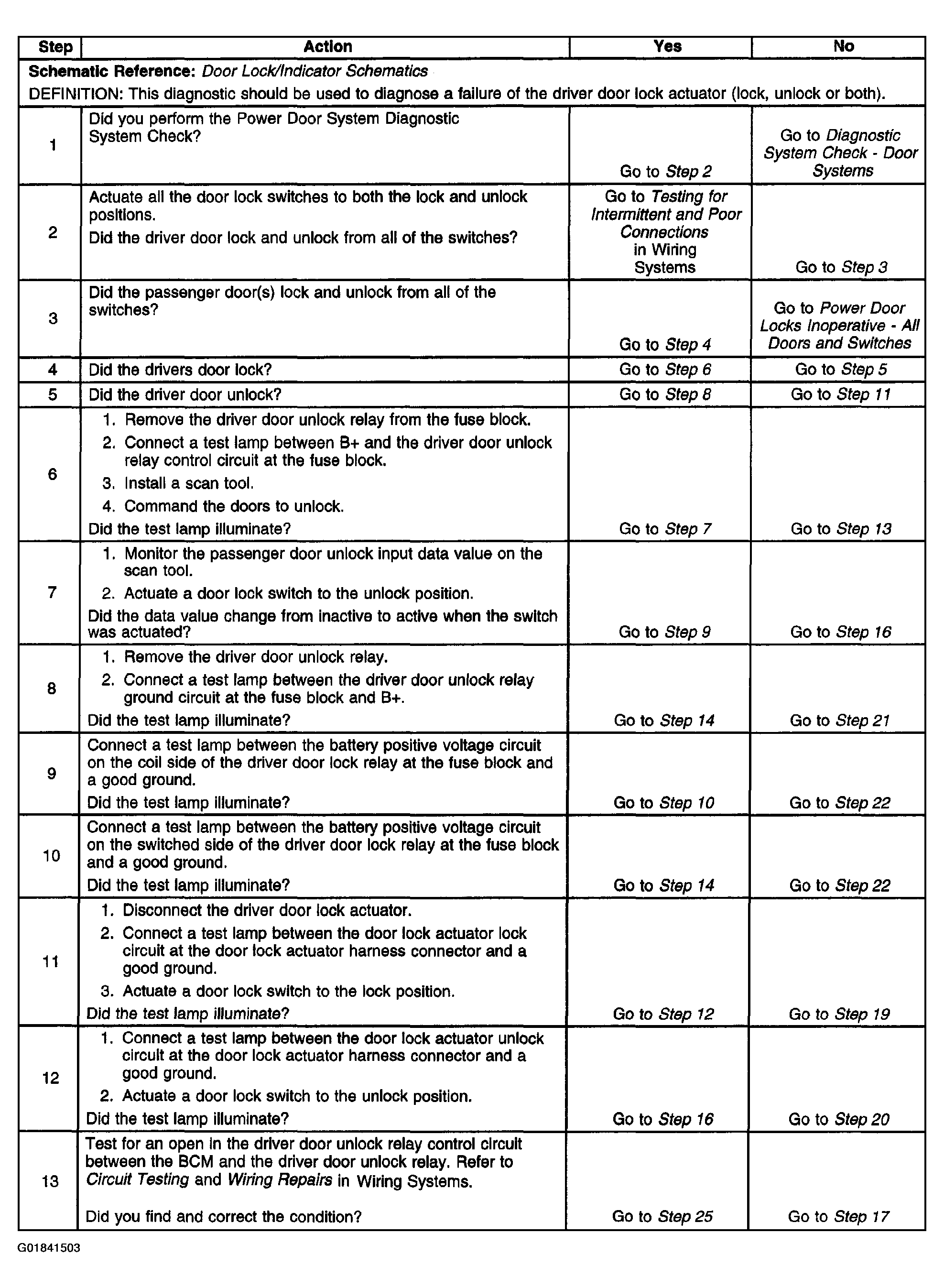

Fig 1: Power Door Lock Inoperative - Driver Door (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

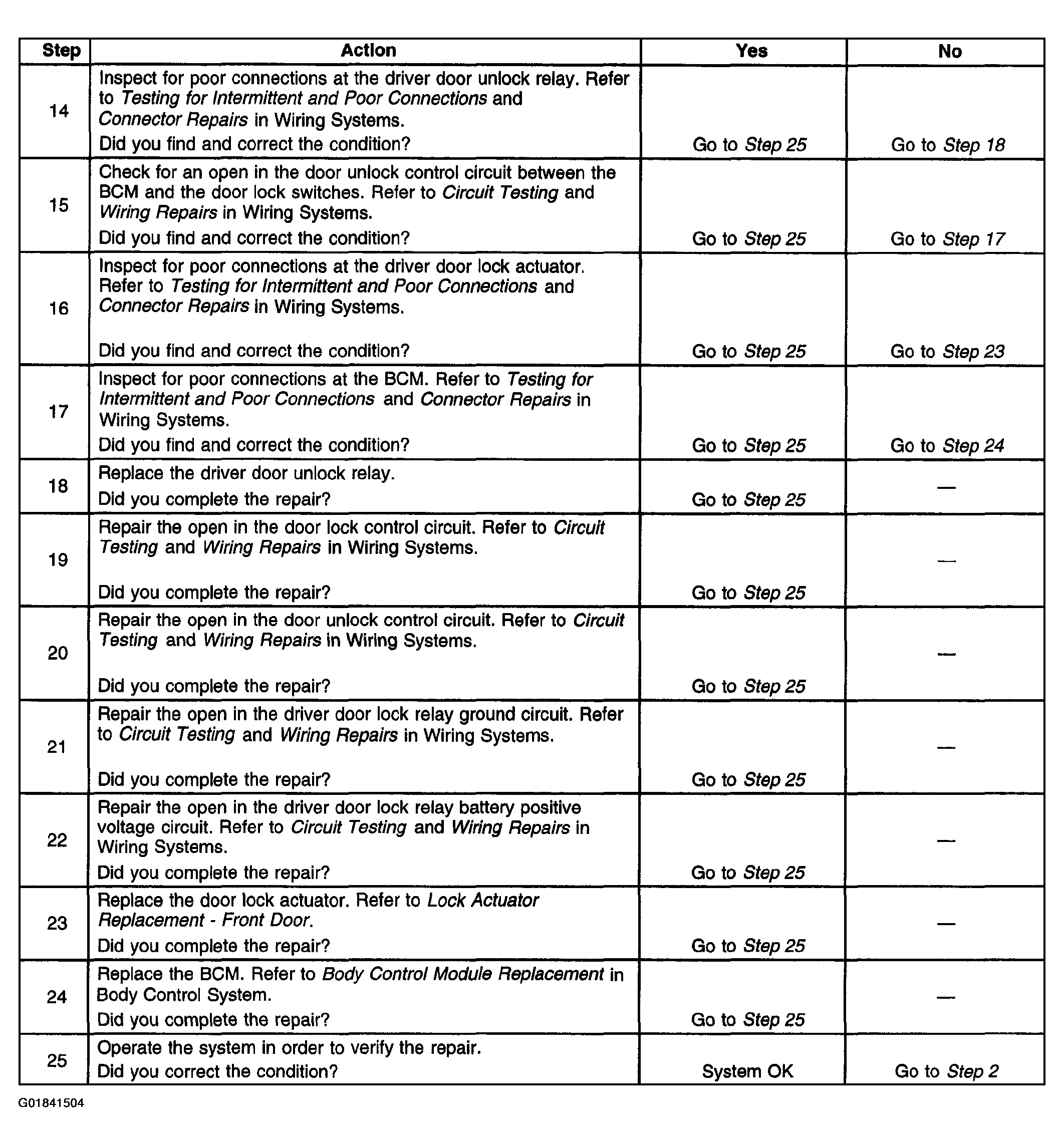

Fig 2: Power Door Lock Inoperative - Driver Door (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
