Heated Mirrors Inoperative
Heated Mirrors Inoperative

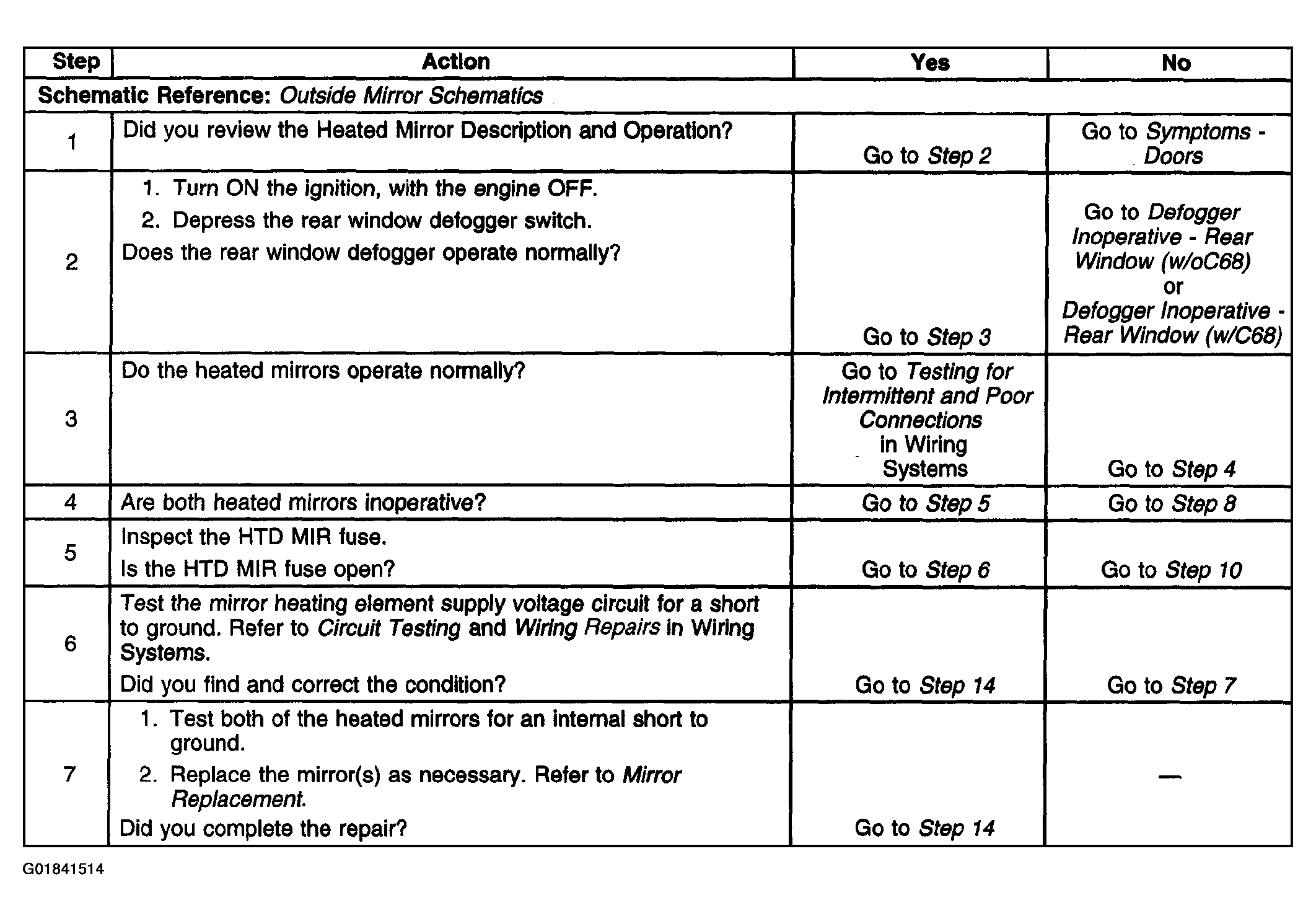

Fig 1: Heated Mirrors Inoperative (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

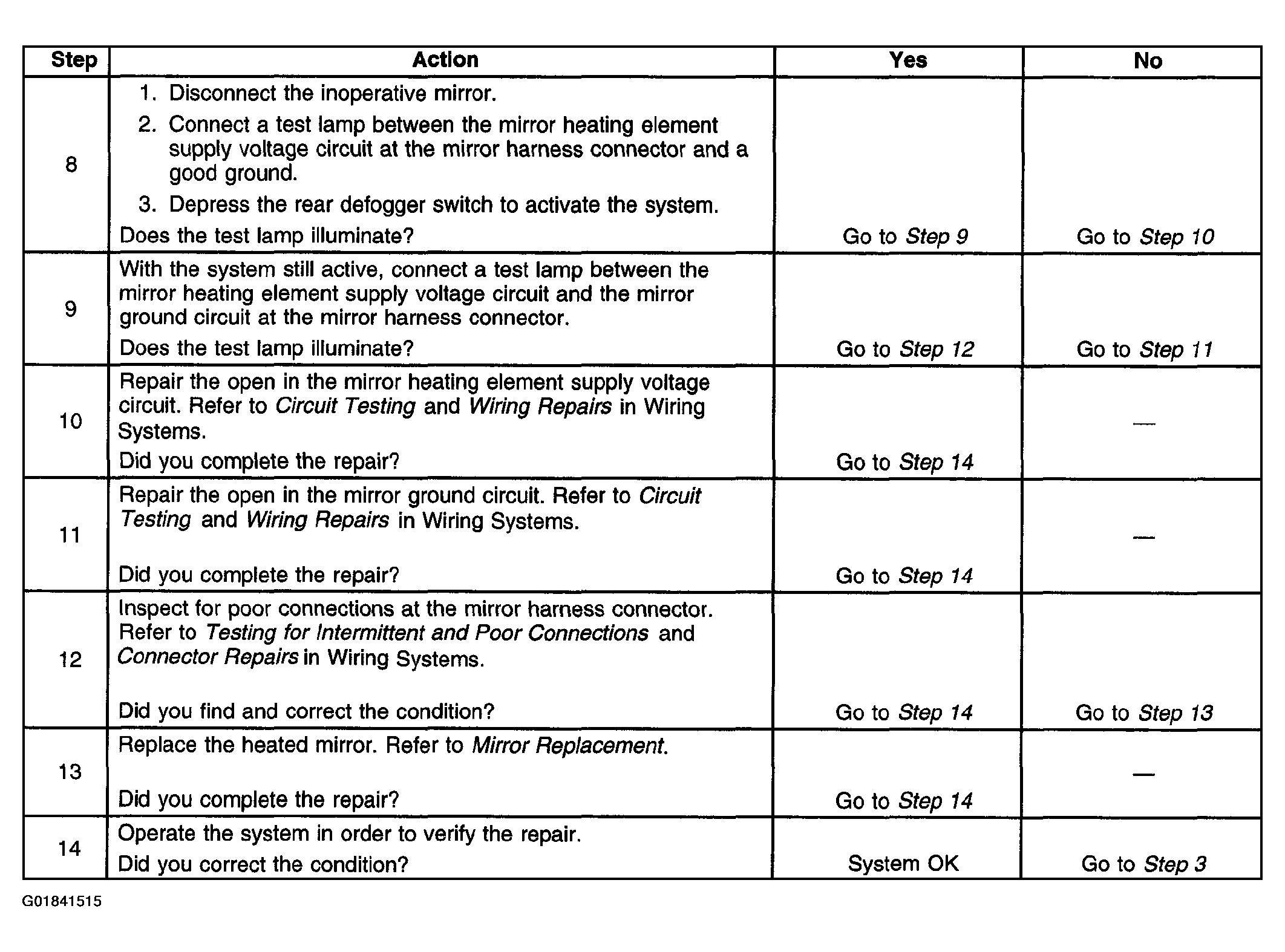

Fig 2: Heated Mirrors Inoperative (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
