Removal Procedure

  1. Open the sunroof until the wind deflector springs are exposed.
  2. Remove the sunroof. Refer to Sunroof Replacement .
  3. Drill out the rivets that secure the wind deflector springs to the sunroof assembly.
  4. Remove the wind deflector springs.
  5. Remove the wind deflector from the sunroof assembly.

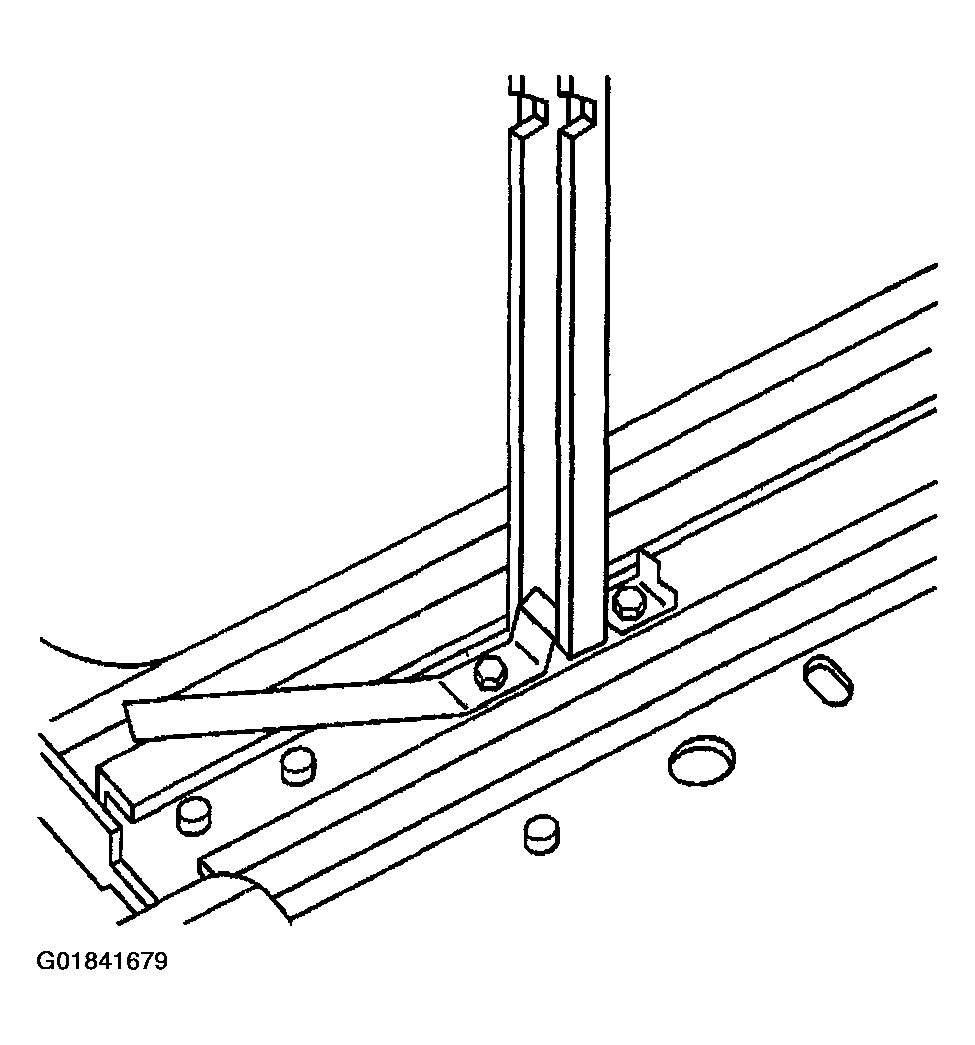

    Fig 1: Drill Out Rivets That Secure Wind Deflector Springs To Sunroof Assembly
    G01841679Courtesy of GENERAL MOTORS CORP.
