Installation Procedure
- Install the wind deflector to the sunroof assembly.

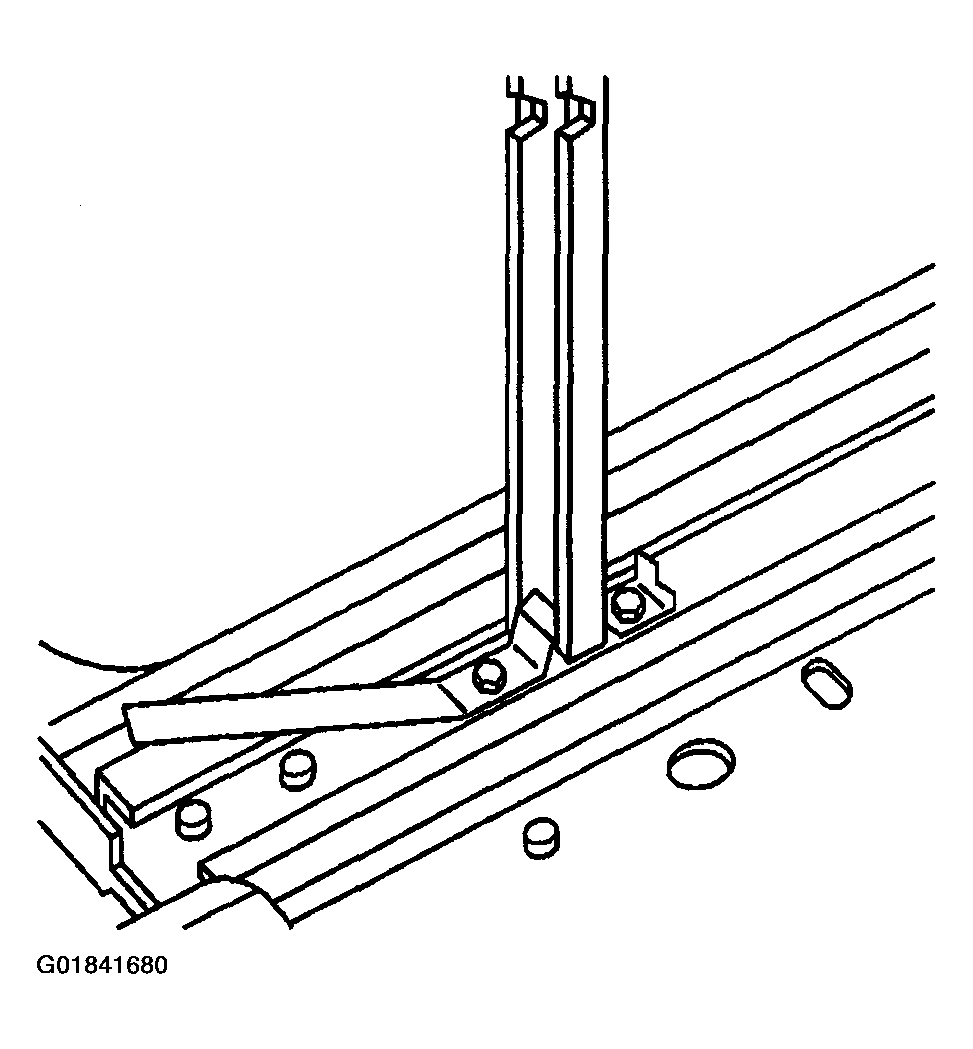

- Install the wind deflector springs.
Ensure that the wind deflector springs are installed on the correct side of the sunroof. The lower section of the notch at the rear of the spring must be on the outboard side of the sunroof assembly .
- Install the rivets that secure the wind deflector springs to the sunroof assembly.
- Install the sunroof. Refer to Sunroof Replacement .
Ensure that the tabs at the front of the wind deflector are tucked under the front edge of the roof opening.
- Close the sunroof.
