Removal Procedure

  1. Pull the roof drip weatherstrip from the door opening frame.
  2. Remove any remaining weather strip material or adhesive.

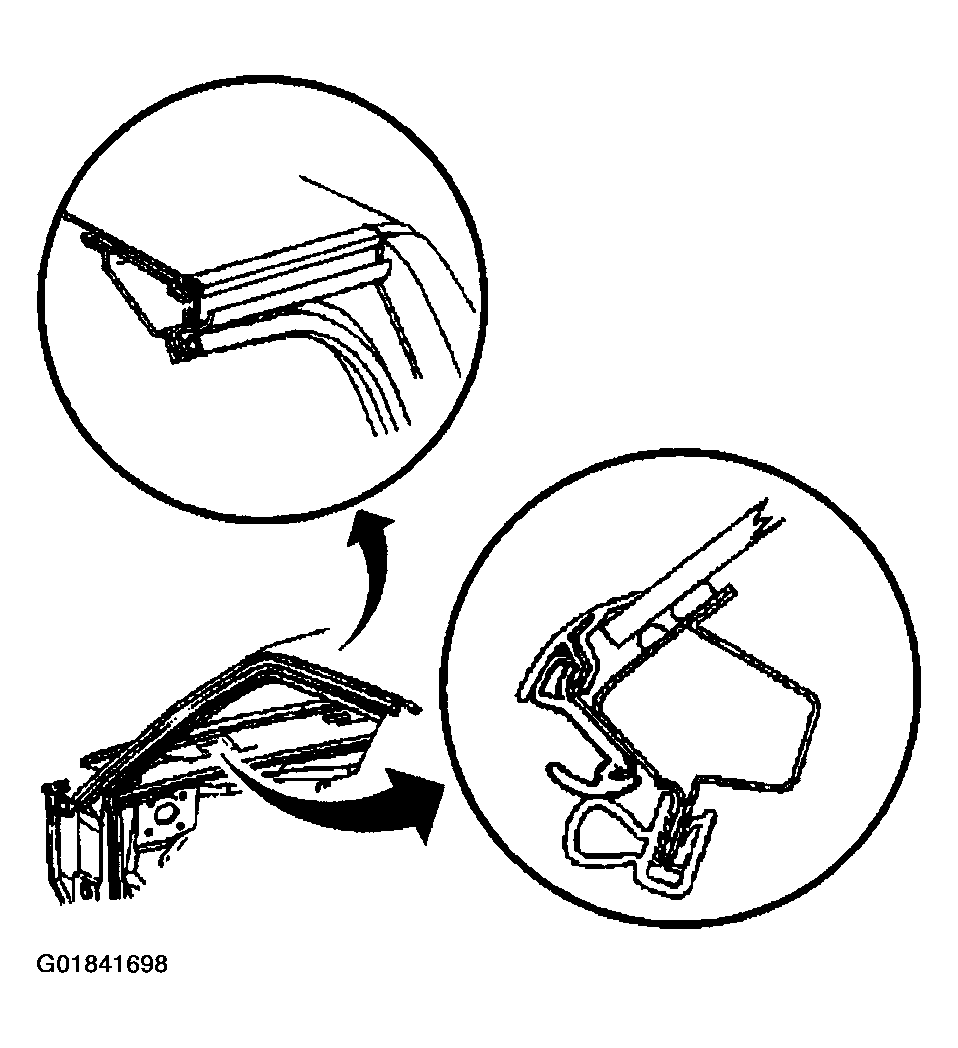

    Fig 1: Pulling Roof Drip Weatherstrip From Door Opening Frame
    G01841698Courtesy of GENERAL MOTORS CORP.
