Removal Procedure

  1. Remove the sunroof glass. Refer to Sunroof Glass Panel Replacement
  2. Slide the sunshade forward.
  3. Flex the center of the sunshade downward while pulling up and forward on the front center of the sunshade.
  4. Pull the sunshade forward until the front tabs release from the track slots.
  5. Flex the center of the sunshade downward and release the rear tabs from the track slots.

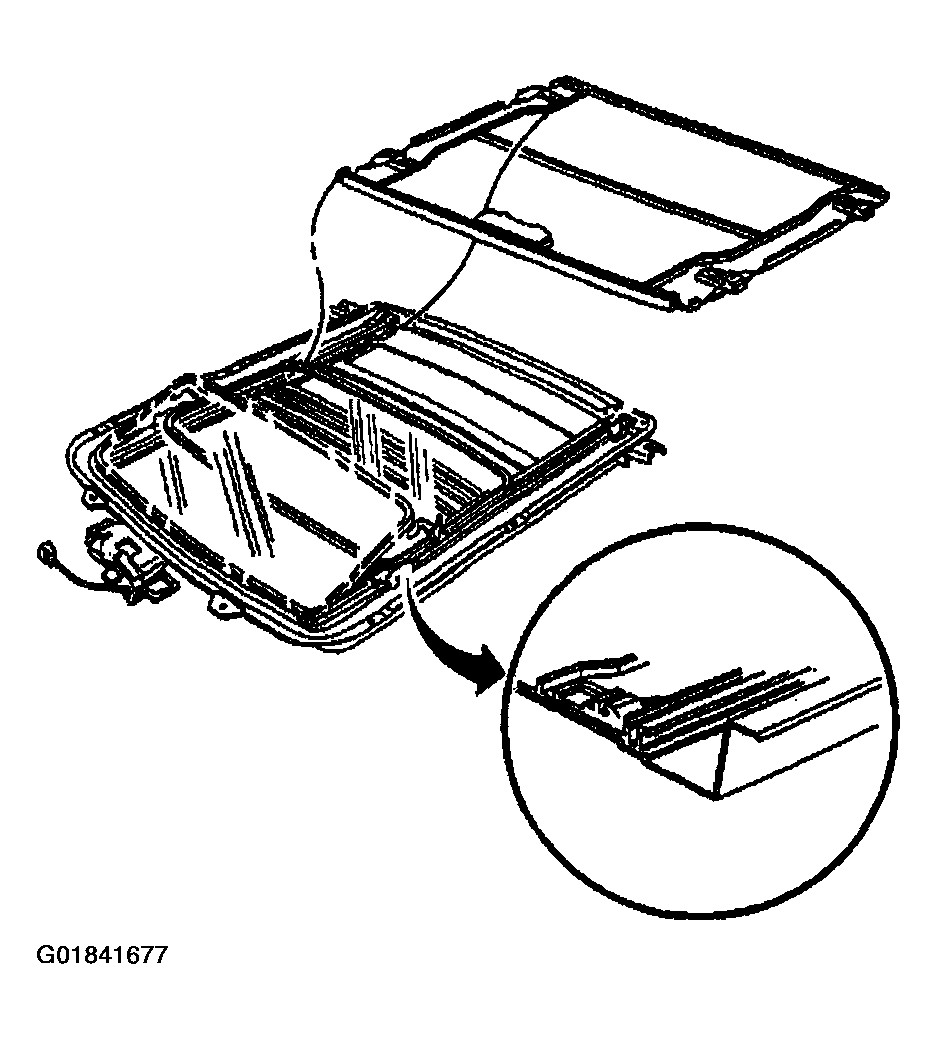

    Fig 1: Removing Sunroof Glass
    G01841677Courtesy of GENERAL MOTORS CORP.
