Removal Procedure

  1. Remove the negative battery cable.
  2. Remove the headliner. Refer to HEADLINER REPLACEMENT (PICKUP) or HEADLINER REPLACEMENT (UTILITY) or HEADLINER REPLACEMENT (EXTENDED CAB PICKUP) in Interior Trim.
  3. Disconnect the wiring harness from the sunroof module (2).
  4. Remove the rosebud clips securing the dome lamp/sunroof harness to the left front side door opening frame.
  5. Remove the tape securing the sunroof harness to the dome lamp harness
  6. Disconnect the wiring harness from the body wiring harness.
  7. Remove the wiring harness from the vehicle.

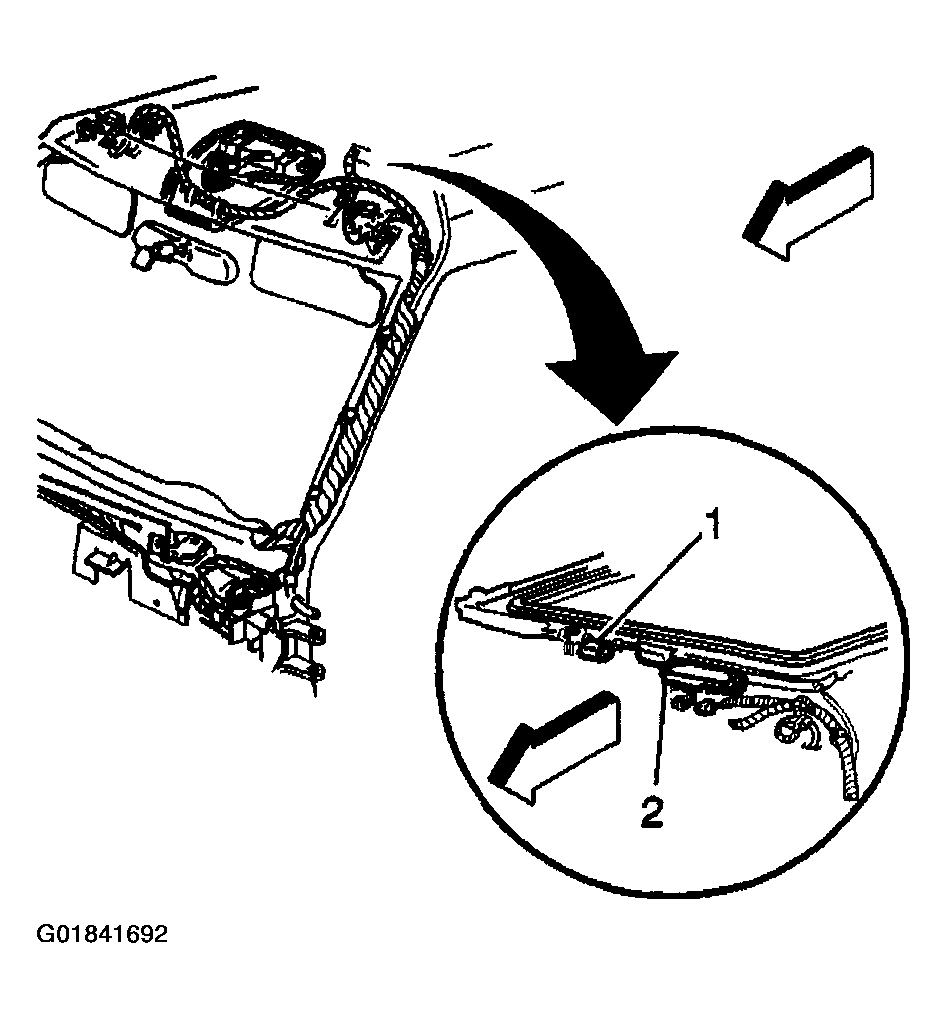

    Fig 1: Disconnecting Wiring Harness From Sunroof Module
    G01841692Courtesy of GENERAL MOTORS CORP.
