Removal Procedure

  1. Remove the driver information console (DIC). Refer to DRIVER INFORMATION CENTER REPLACEMENT (WITHOUT SUNROOF) or DRIVER INFORMATION CENTER REPLACEMENT (WITH SUNROOF) in Instrument Panel, Gages and Console.
  2. Disconnect the electrical connector from the driver information display module.

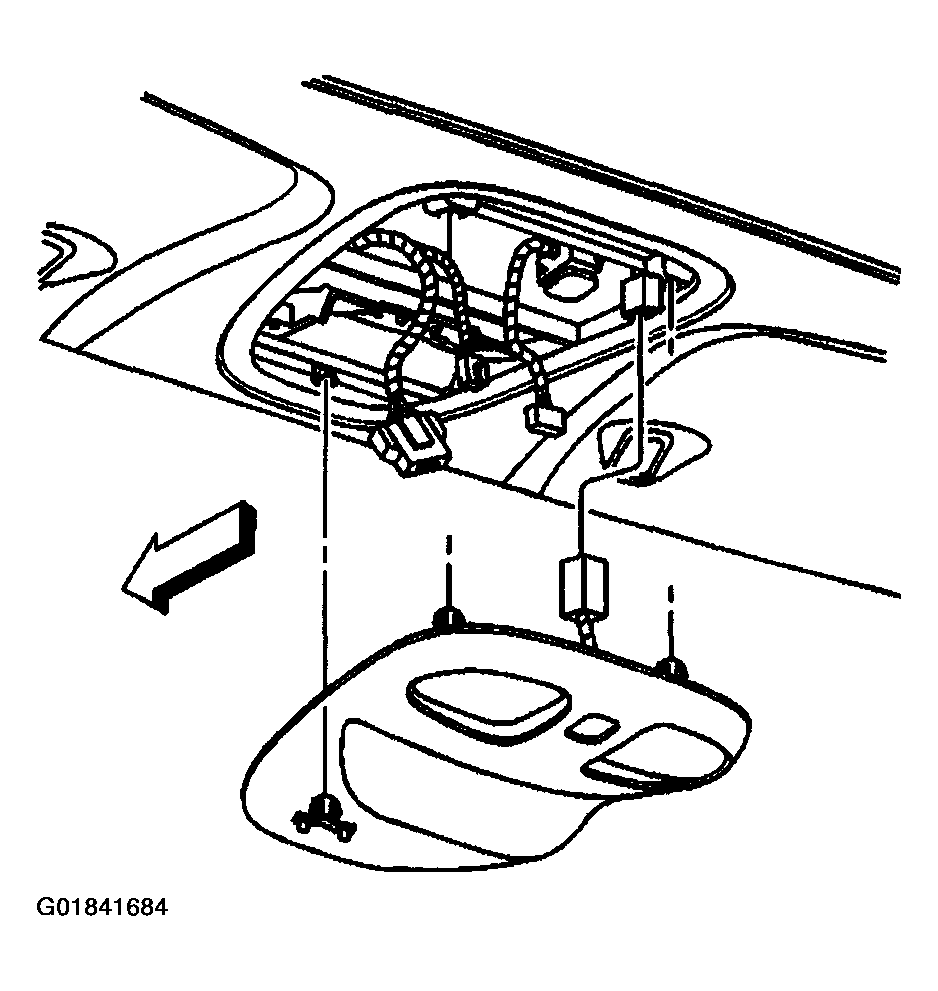

    Fig 1: Disconnecting Electrical Connector From Driver Information Display Module
    G01841684Courtesy of GENERAL MOTORS CORP.
  3. Remove 6 screws securing the sunroof switch assembly to the DIC.
  4. Remove the sunroof switch assembly from the DIC.

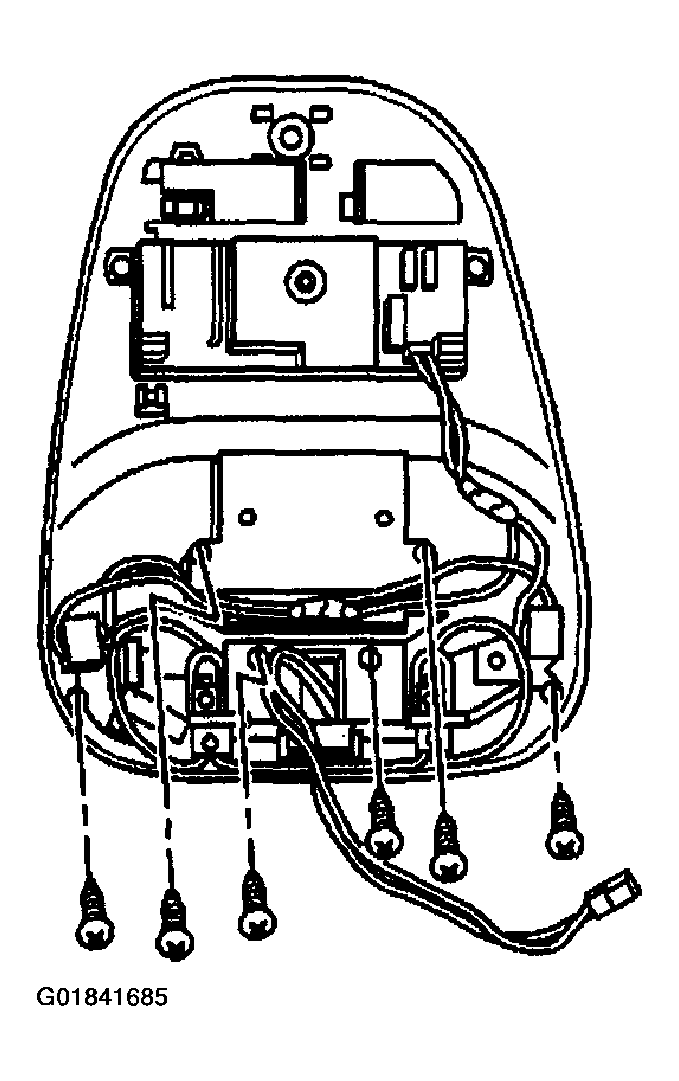

    Fig 2: Removing Screws Securing Sunroof Switch Assembly To DIC
    G01841685Courtesy of GENERAL MOTORS CORP.
