Installation Procedure

  1. Install the sunroof switch to the sunroof console with 6 screws.

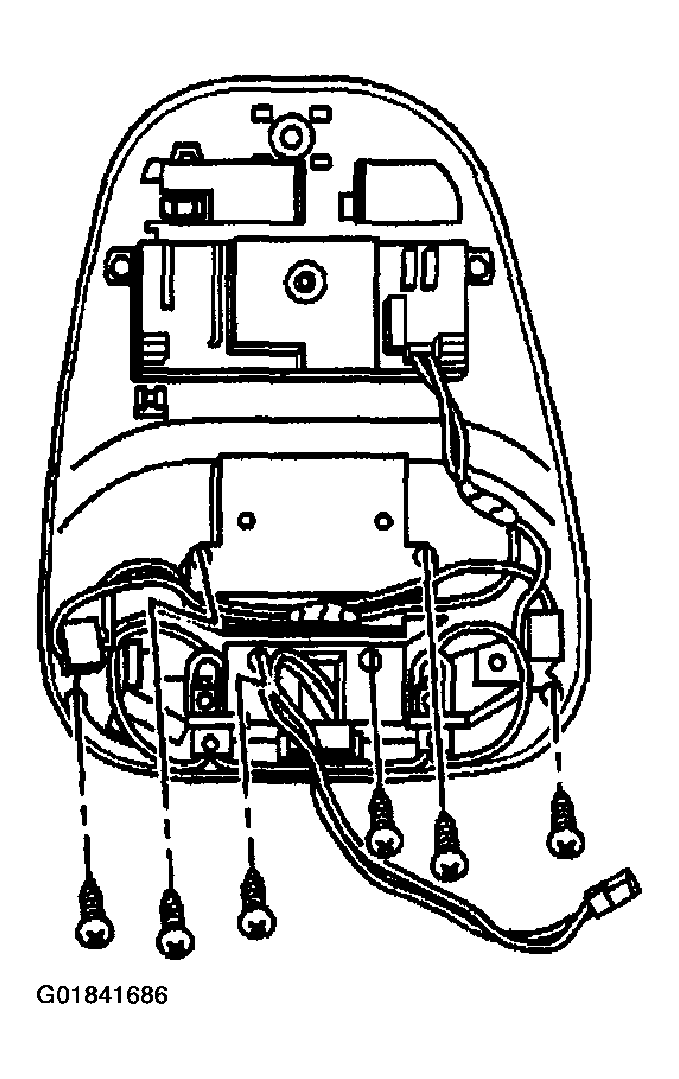

    Fig 1: Installing Sunroof Switch To Sunroof Console With Screws
    G01841686Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the driver information display module.
  3. Install the DIC. Refer to DRIVER INFORMATION CENTER REPLACEMENT (WITHOUT SUNROOF) or DRIVER INFORMATION CENTER REPLACEMENT (WITH SUNROOF) in Instrument Panel, Gages and Console.

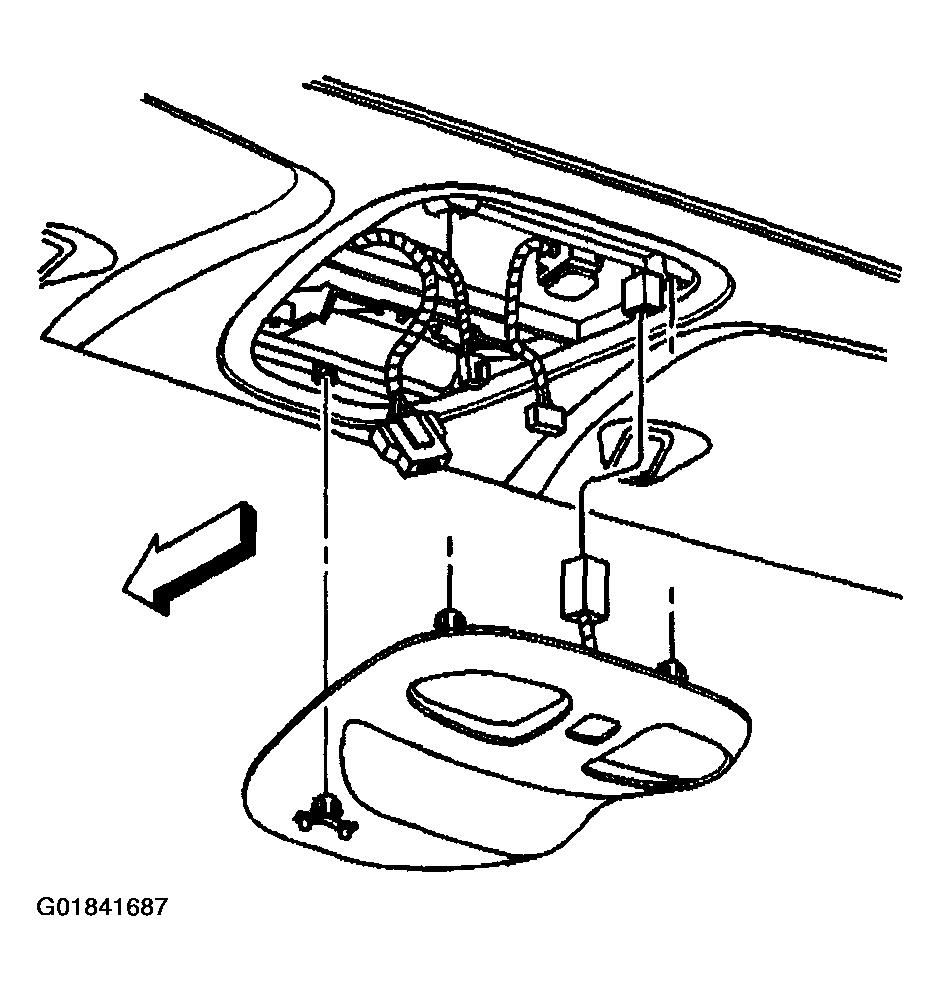

    Fig 2: Connecting Electrical Connector To Driver Information Display Module
    G01841687Courtesy of GENERAL MOTORS CORP.
