Removal Procedure

  1. Remove the headliner. Refer to HEADLINER REPLACEMENT (PICKUP) or HEADLINER REPLACEMENT (UTILITY) or HEADLINER REPLACEMENT (EXTENDED CAB PICKUP) in Interior Trim.
  2. Remove the sunroof drain hoses from the sunroof assembly. Refer to Sunroof Drain Hose Replacement - Front  and Sunroof Drain Hose Replacement - Rear .
  3. Disconnect the electrical connectors.
    Fig 1: Removing Sunroof Drain Hoses From Sunroof Assembly
    G01841662Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolts that retain the sunroof assembly to the roof.
  5. Release the retainers that secure the sunroof assembly to the roof.
  6. With an assistant, remove the sunroof assembly from the vehicle.

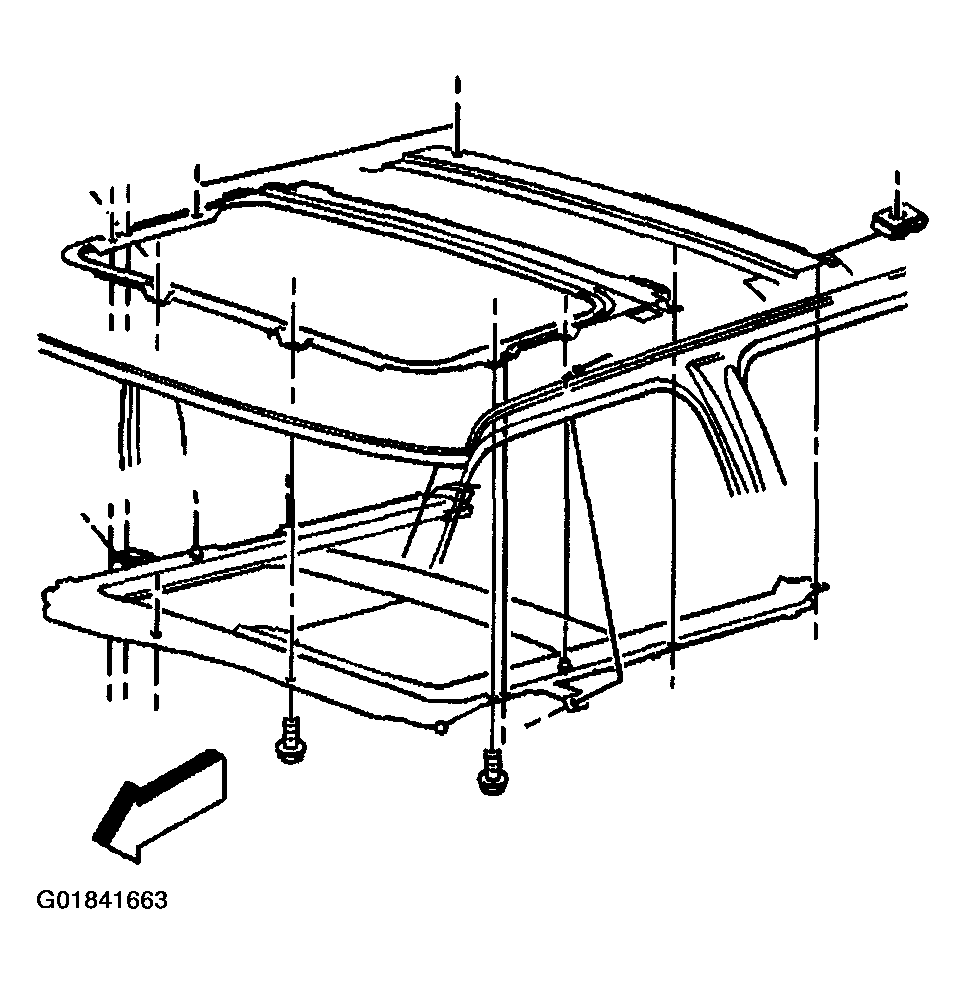

    Fig 2: Removing Sunroof Assembly From Vehicle
    G01841663Courtesy of GENERAL MOTORS CORP.
