Installation Procedure

  1. Position the glass panel (1) to the vehicle.
  2. Install the screws (2) that retain the glass panel (1) to the sunroof assembly.
    NOTE: Refer to FASTENER NOTICE in Caution and Notices.
  3. Adjust the glass panel height so that the glass is flush with the roof panel.

    Tighten

    Tighten the screws to 3 Nm (27 lb in).

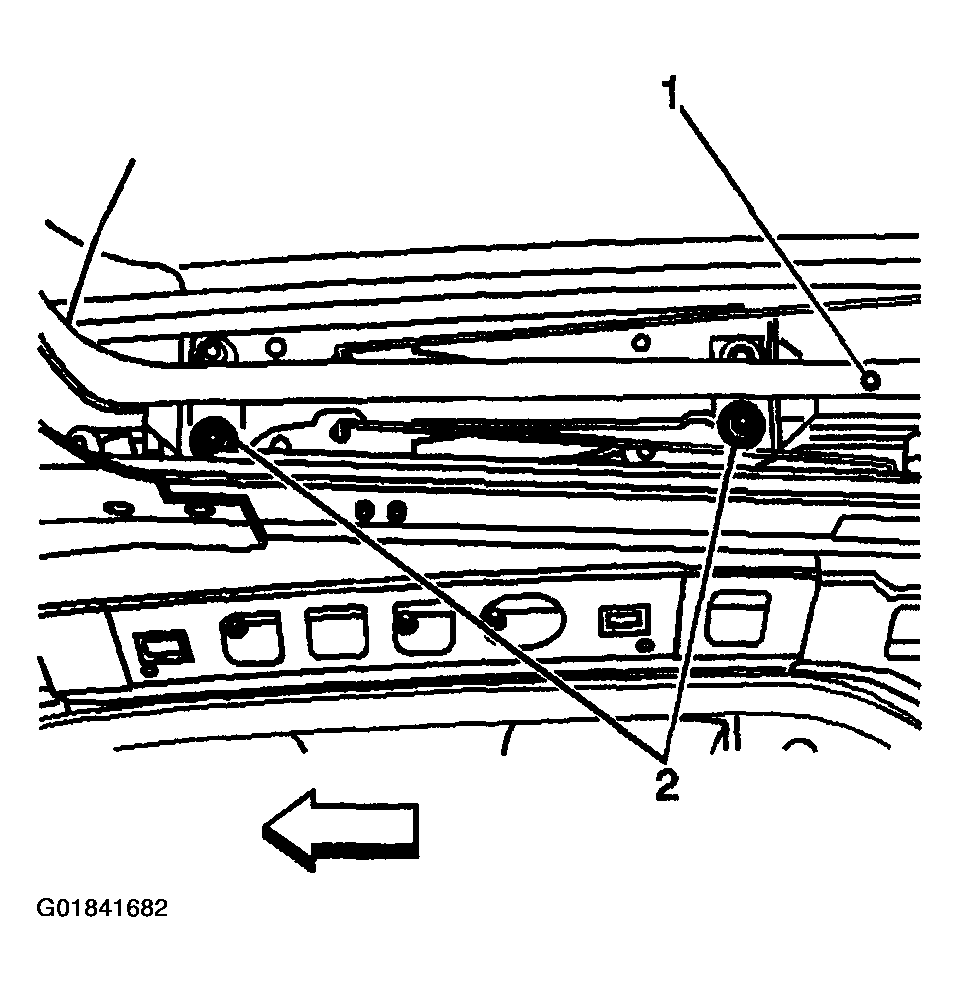

    Fig 1: Installing Screws That Retain Glass Panel To Sunroof Assembly
    G01841682Courtesy of GENERAL MOTORS CORP.
