Removal Procedure

  1. Remove the headliner. Refer to HEADLINER REPLACEMENT (PICKUP) or HEADLINER REPLACEMENT (UTILITY) or HEADLINER REPLACEMENT (EXTENDED CAB PICKUP) in Interior Trim.
  2. Remove the sunroof drain hose from the front comer of the sunroof.
    Fig 1: Removing Sunroof Drain Hose From Front Comer Of Sunroof - Front
    G01841666Courtesy of GENERAL MOTORS CORP.
  3. The left front sunroof drain hose is a part of the dome lamp wiring harness. You must unwrap the tape in order to remove the hose.

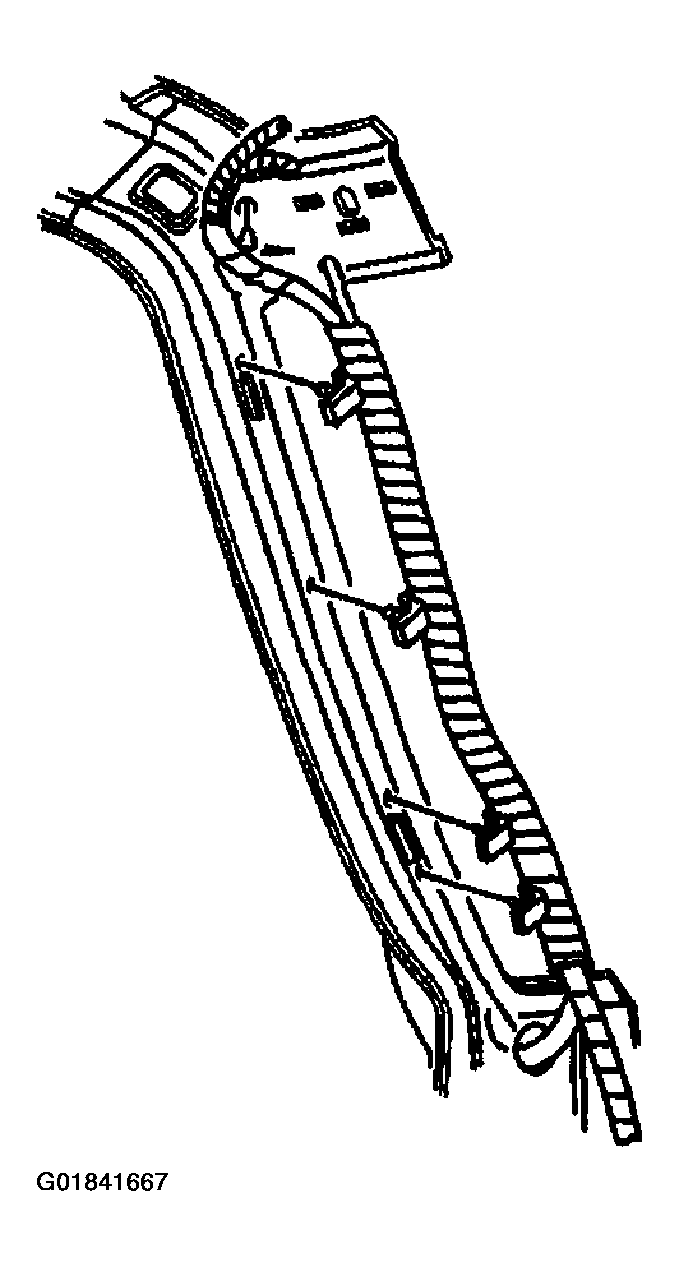

    Fig 2: Removing Tape From Left Front Sunroof Drain Hose - Front
    G01841667Courtesy of GENERAL MOTORS CORP.
  4. Remove the rosebud clips from the front side door opening frame.
  5. Remove the hose from the vehicle.

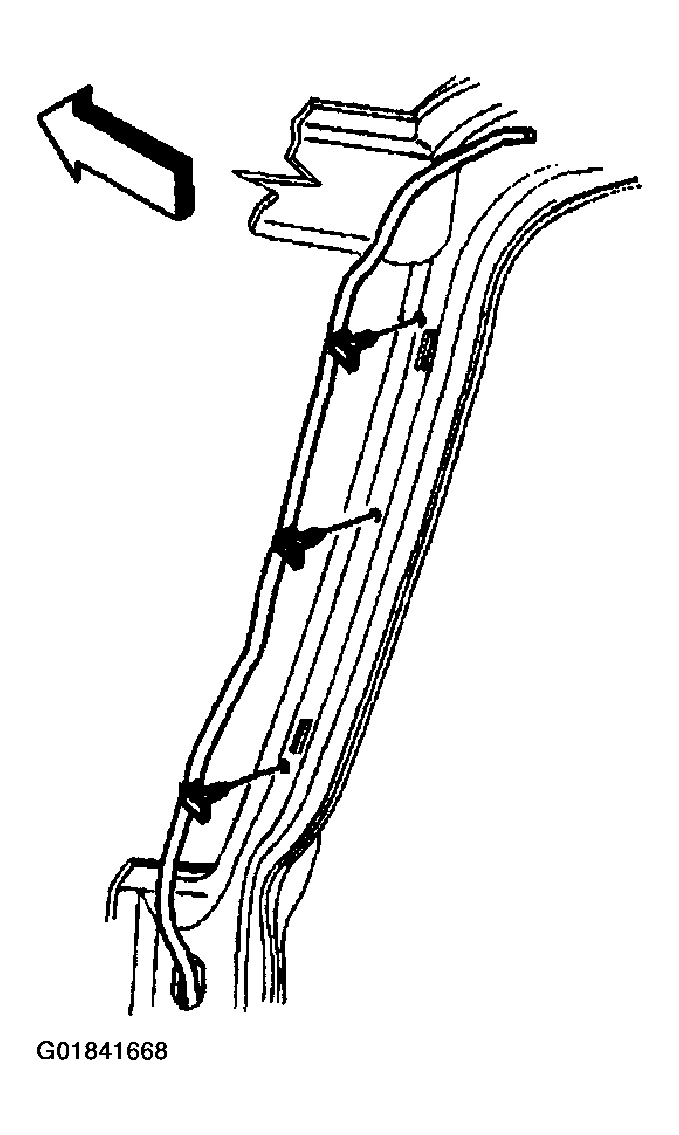

    Fig 3: Removing Rosebud Clips From Front Side Door Opening Frame - Front
    G01841668Courtesy of GENERAL MOTORS CORP.
