Installation Procedure

  1. Install the sunroof motor (1) to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws that retain the sunroof motor (1) to the sunroof assembly.

    Tighten

    Tighten the sunroof motor screws to 3.5 N.m (31 lb in).

  3. Connect the electrical connectors, as needed.
  4. Install the straps that retain the wiring harness.
  5. Install the headliner. Refer to HEADLINER REPLACEMENT (PICKUP) or HEADLINER REPLACEMENT (UTILITY) or HEADLINER REPLACEMENT (EXTENDED CAB PICKUP) in Interior Trim.

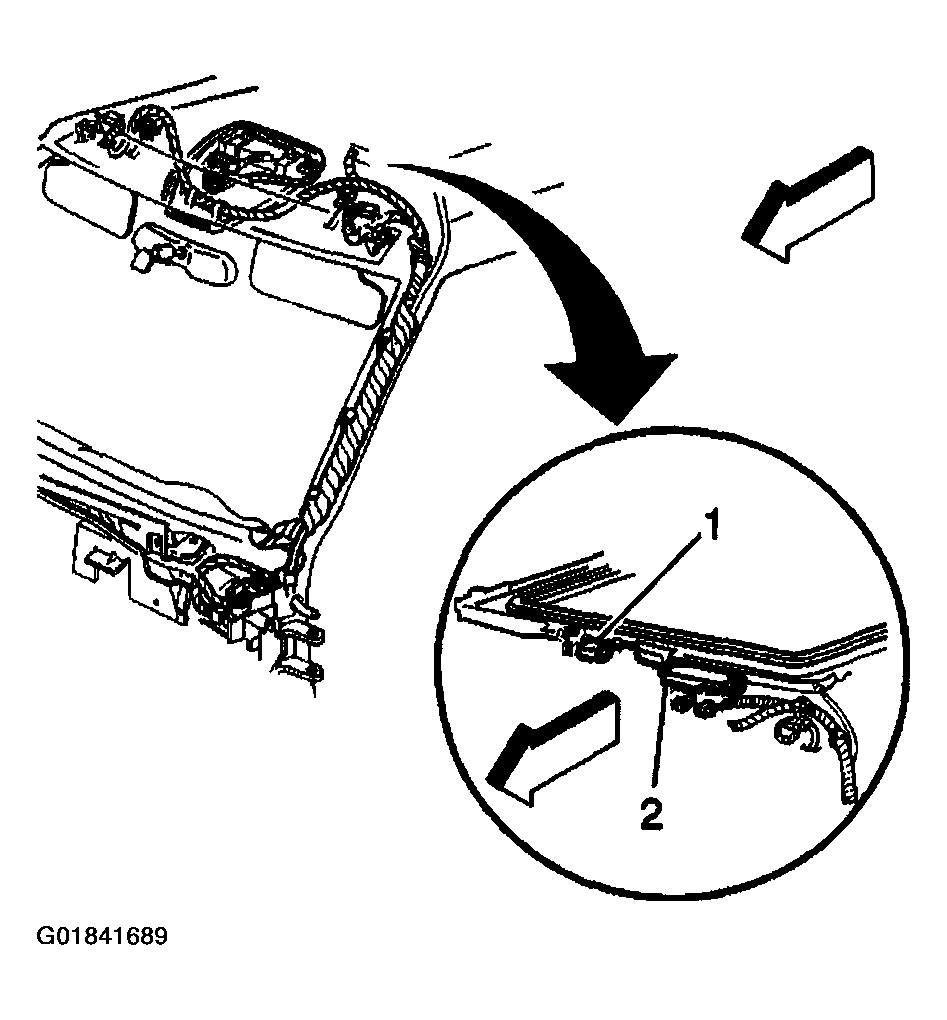

    Fig 1: Installing Screws That Retain Sunroof Motor To Sunroof Assembly
    G01841689Courtesy of GENERAL MOTORS CORP.
