Removal Procedure

  1. Remove the headliner. Refer to HEADLINER REPLACEMENT (PICKUP) or HEADLINER REPLACEMENT (UTILITY) or HEADLINER REPLACEMENT (EXTENDED CAB PICKUP) in Interior Trim.
  2. Remove the straps that retain the wiring harness.
  3. Disconnect the electrical connectors, as needed.
  4. Slide the sunroof control module (2) to the right in order to remove the sunroof control module from the vehicle.

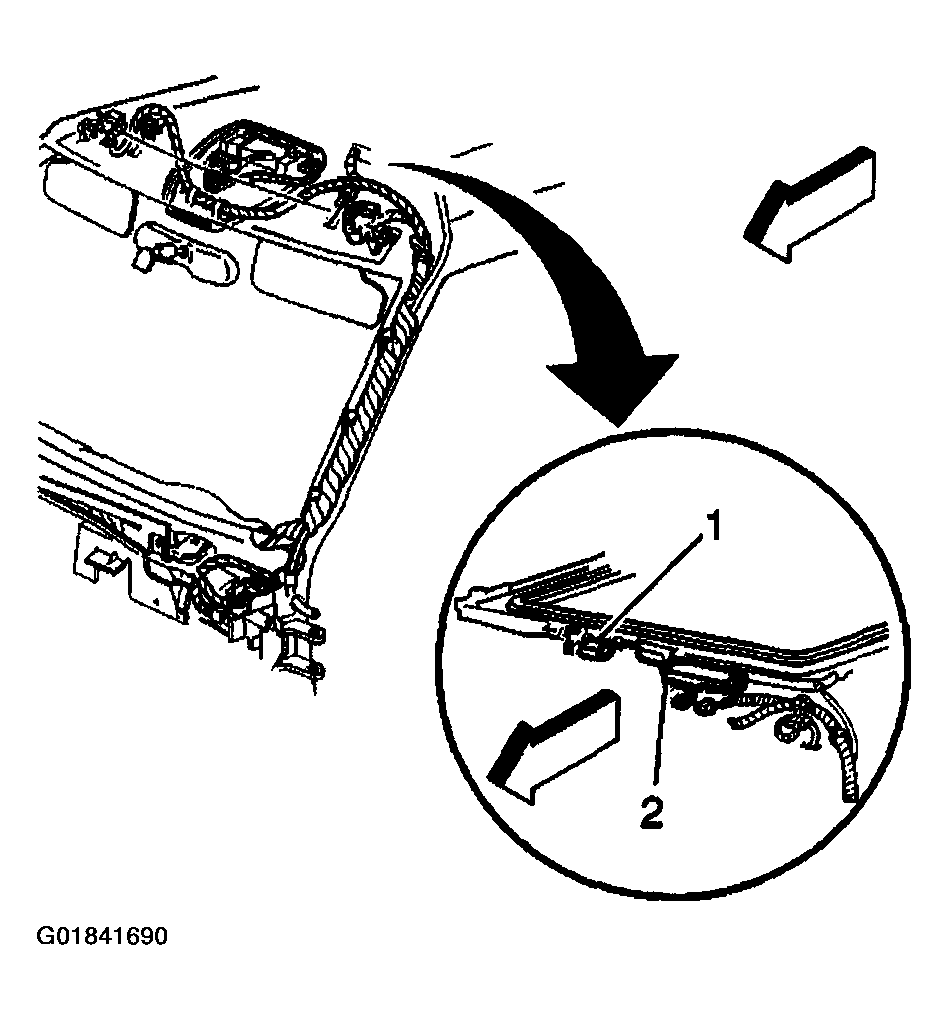

    Fig 1: Sliding Sunroof Control Module To Right
    G01841690Courtesy of GENERAL MOTORS CORP.
