Installation Procedure

  1. Slide the sunroof control module (2) to the left in order to install the sunroof control module to the vehicle.
  2. Connect the electrical connectors, as needed.
  3. Install the straps that retain the wiring harness.
  4. Install the headliner. Refer to HEADLINER REPLACEMENT (PICKUP) or HEADLINER REPLACEMENT (UTILITY) or HEADLINER REPLACEMENT (EXTENDED CAB PICKUP) in Interior Trim.

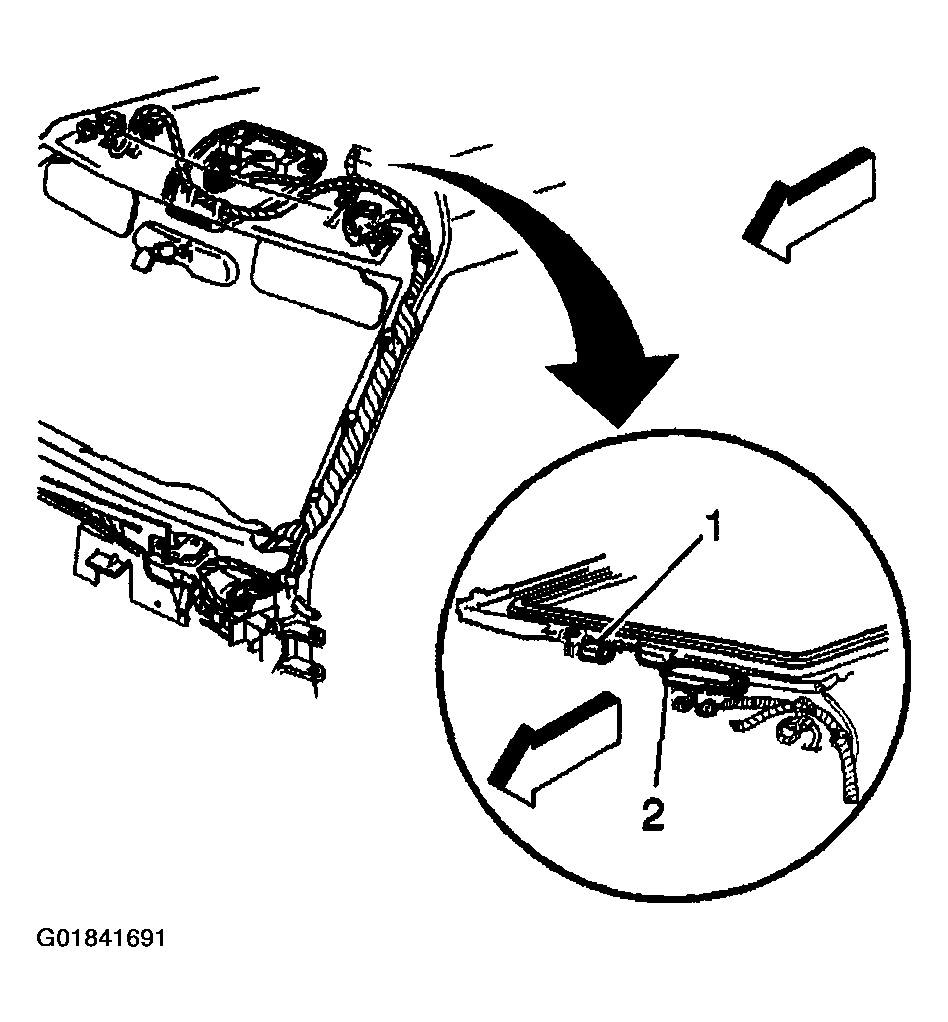

    Fig 1: Sliding Sunroof Control Module To Left In Order To Install Sunroof Control Module To Vehicle
    G01841691Courtesy of GENERAL MOTORS CORP.
