Installation Procedure

  1. Install the sliders and the lock plates into the slots on the side rails.
  2. Hand-tighten the knobs into the sliders and the lock plates.
  3. Install the tap plates in the cross rails.
    Fig 1: Installing Sliders And Lock Plates Into Slots On Side Rails
    G01841703Courtesy of GENERAL MOTORS CORP.
  4. Install the cross rails on to the sliders.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the screws to the cross rails.

    Tighten

    Tighten the screws to 1.9 N.m (17 lb in).

  6. Install the side rail supports to the side rails.
  7. Install the screws to the side rail supports.

    Tighten

    Tighten the screws to 1.9 N.m (17 lb in).

  8. With an assistant, install the luggage carrier as an assembly onto the roof.
    Fig 2: Installing Side Rail Supports To Side Rails
    G01841704Courtesy of GENERAL MOTORS CORP.
  9. Install the end support to the roof screws.

    Tighten

    Tighten the screws to 2.8 N.m (25 lb in).

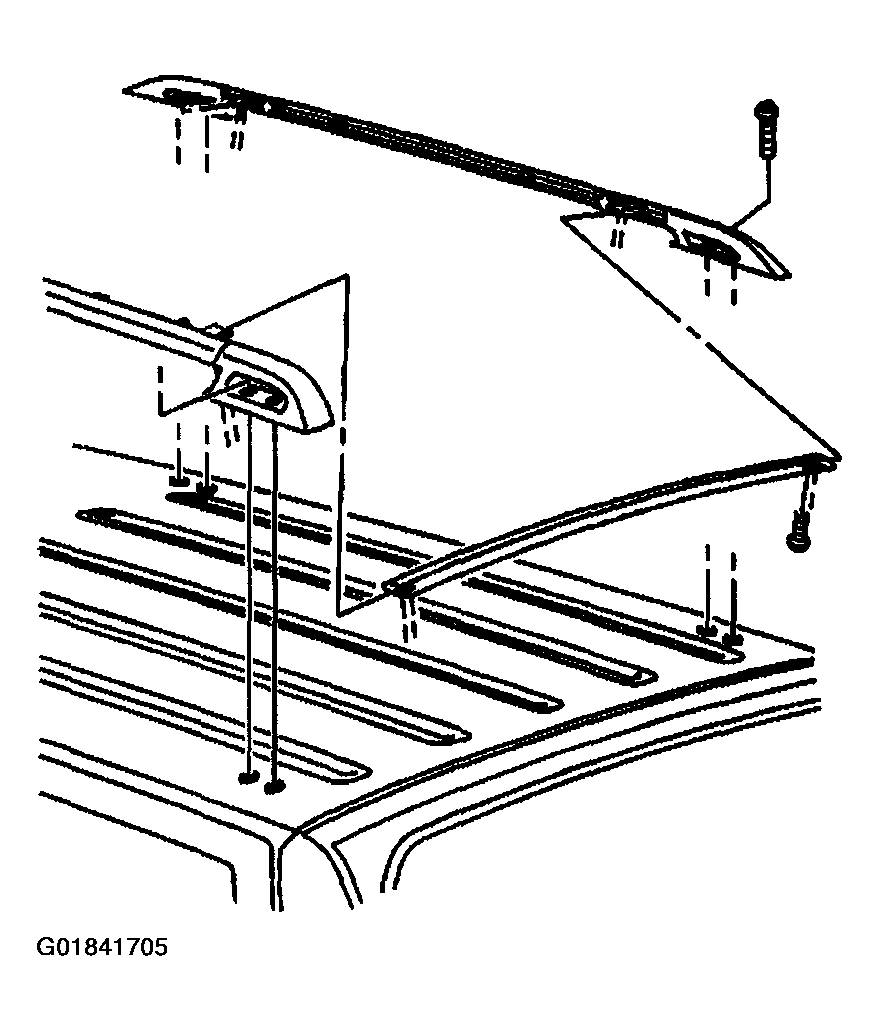

    Fig 3: Installing End Support To Roof Screws
    G01841705Courtesy of GENERAL MOTORS CORP.
  10. Install the rubber strips to the cross bar assemblies.
    Fig 4: Installing Rubber Strips To Cross Bar Assemblies
    G01841706Courtesy of GENERAL MOTORS CORP.
