Test Description

The number below refers to the step number on the diagnostic table.

1. 2. This step will test the express open feature and if the feature is operating properly, then inspect the sunroof limit switch low reference circuit for an intermittent or poor connection.

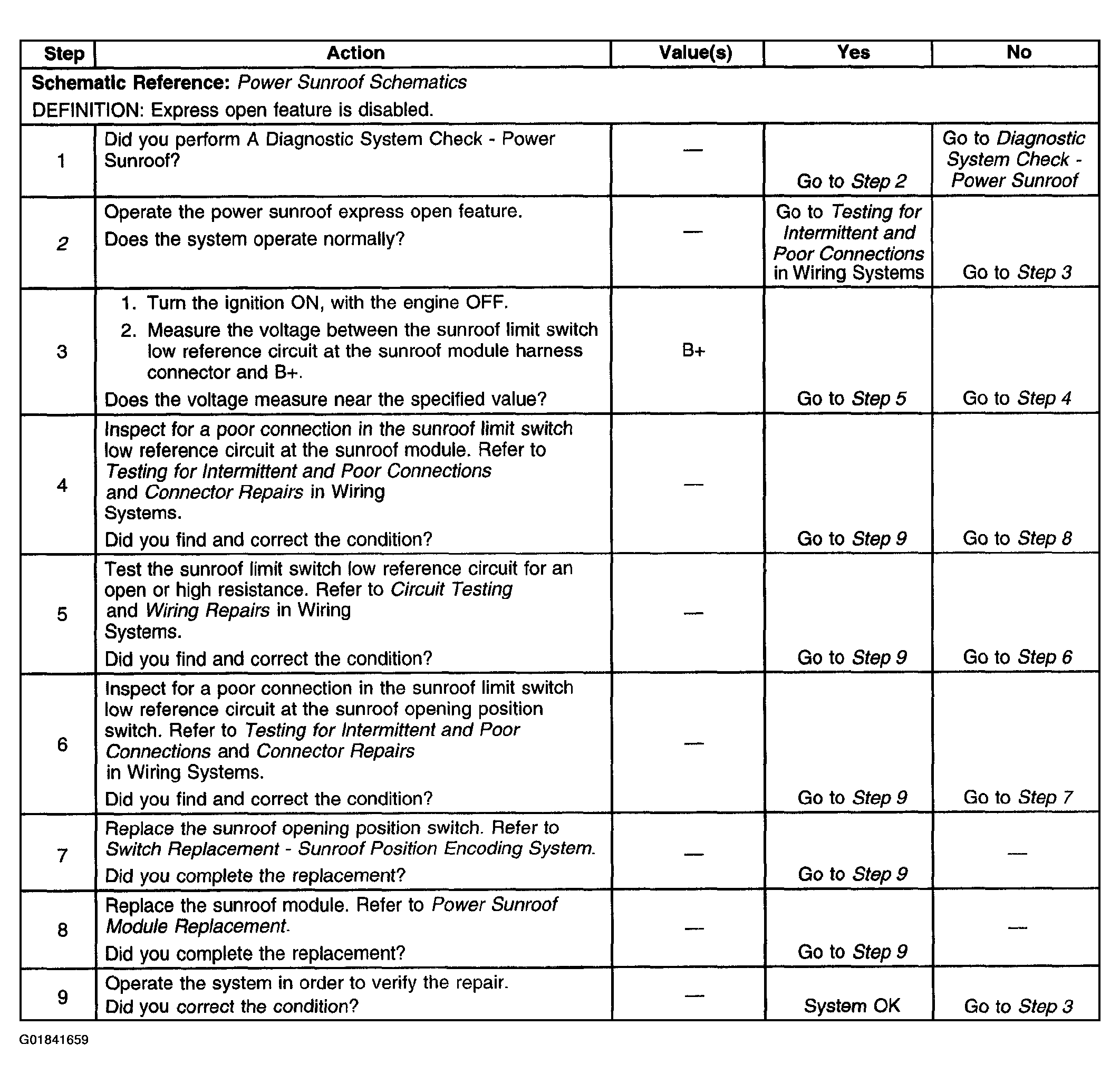

   Fig 1: Power Sunroof Express Open Feature Inoperative

   Courtesy of GENERAL MOTORS CORP.
