Power Roof Systems Connector End Views

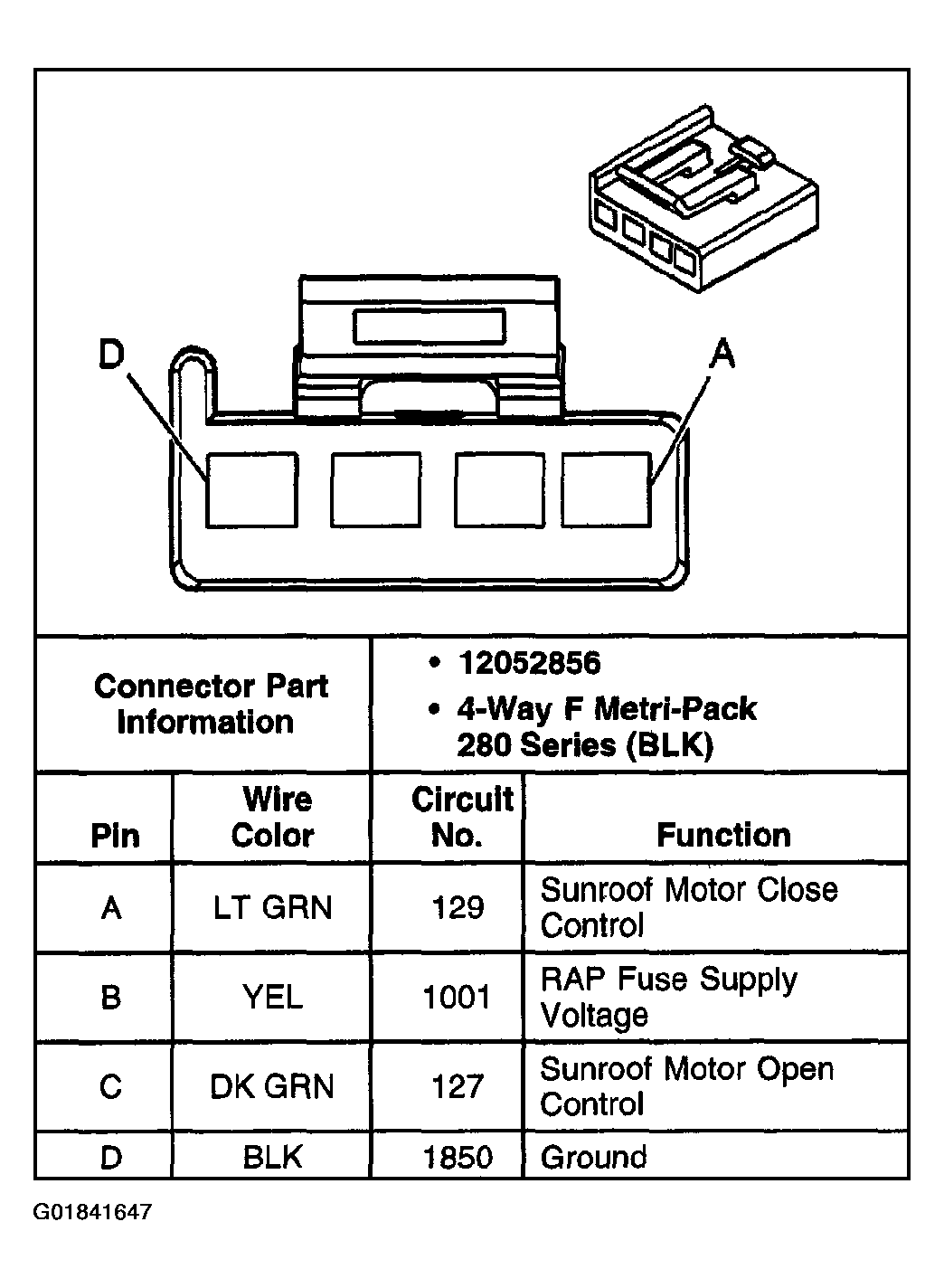

Fig 1: Sunroof Module Connector C1

Courtesy of GENERAL MOTORS CORP.

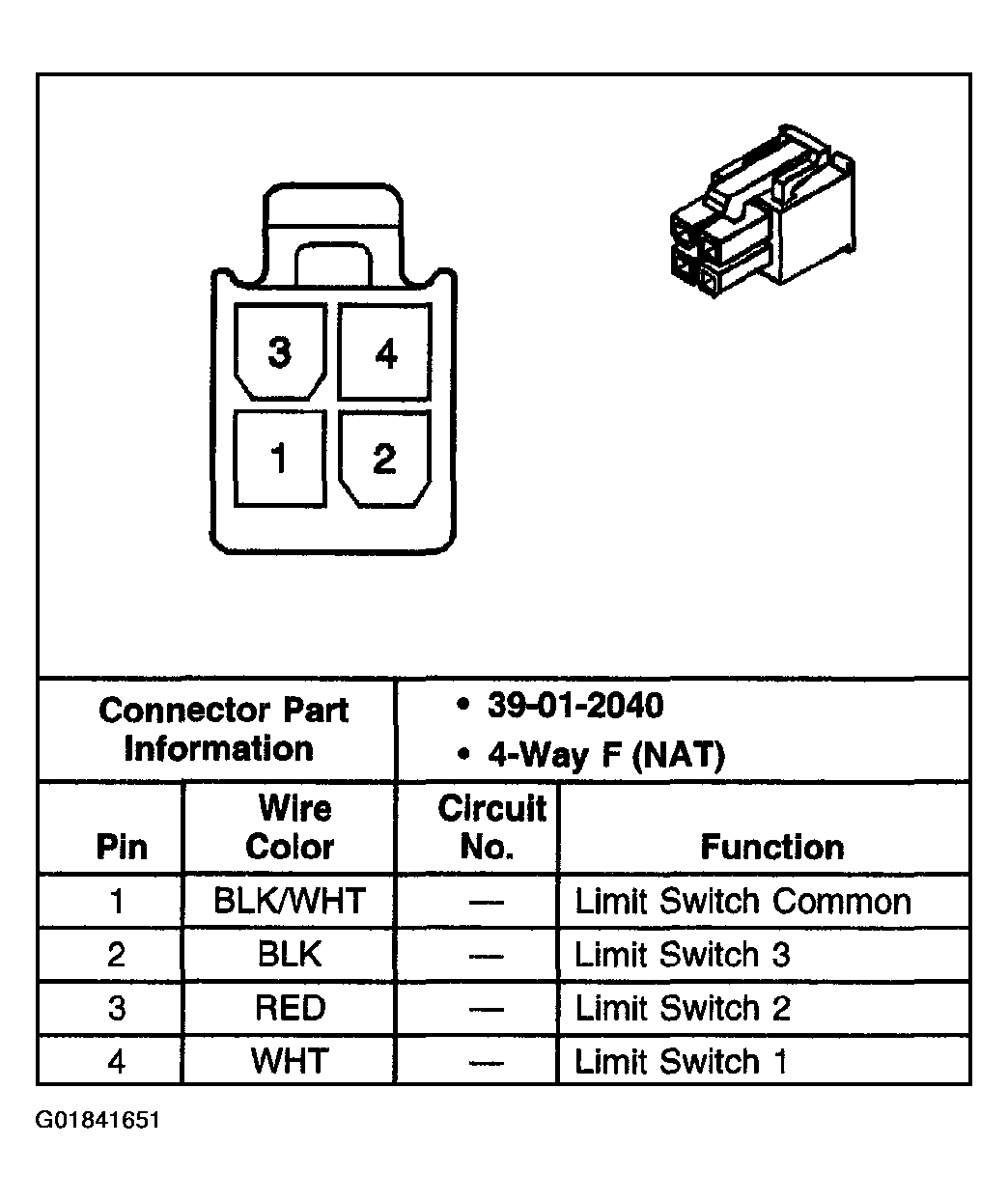

Fig 2: Sunroof Module Connector C2 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

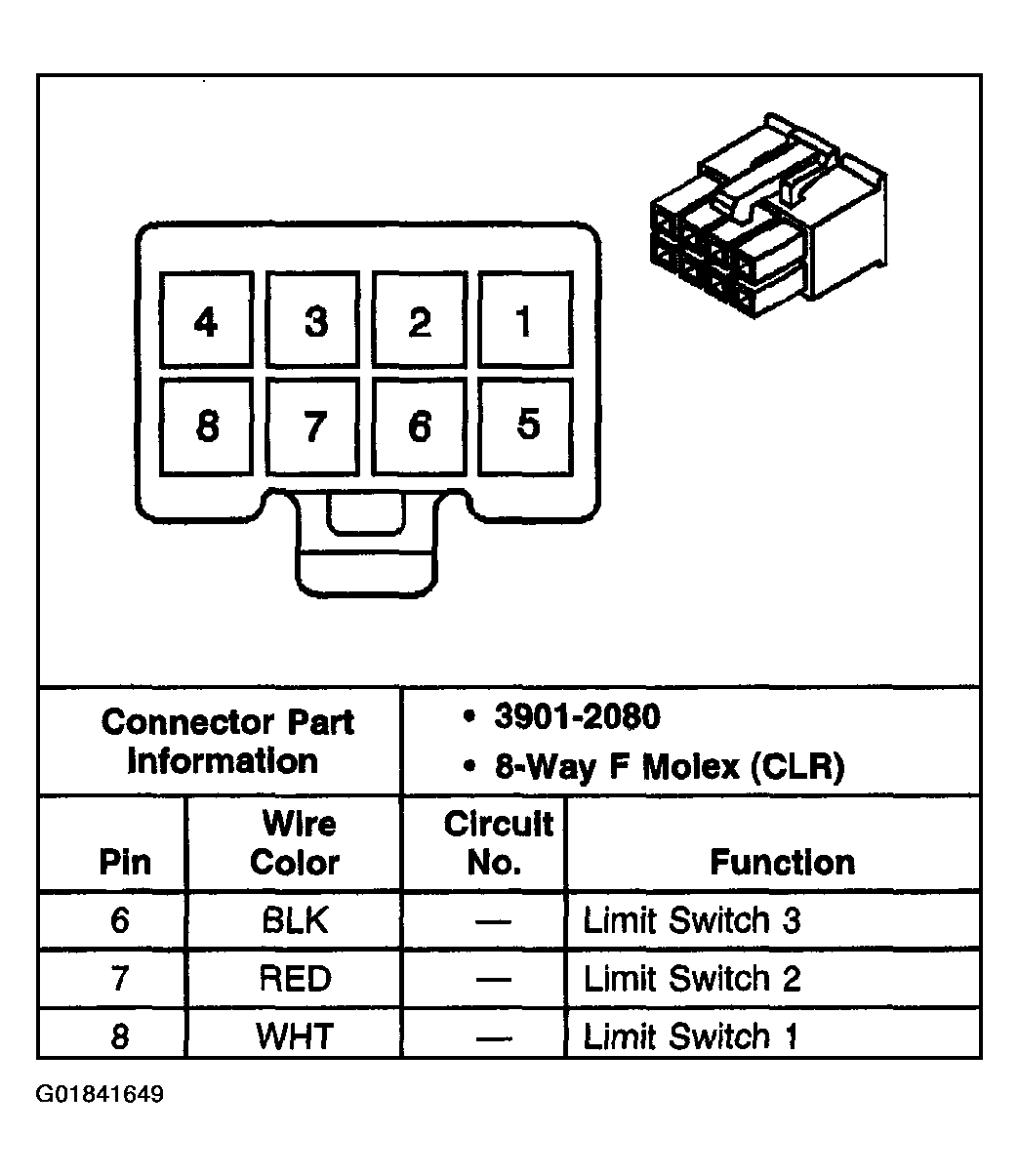

Fig 3: Sunroof Module Connector C2 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

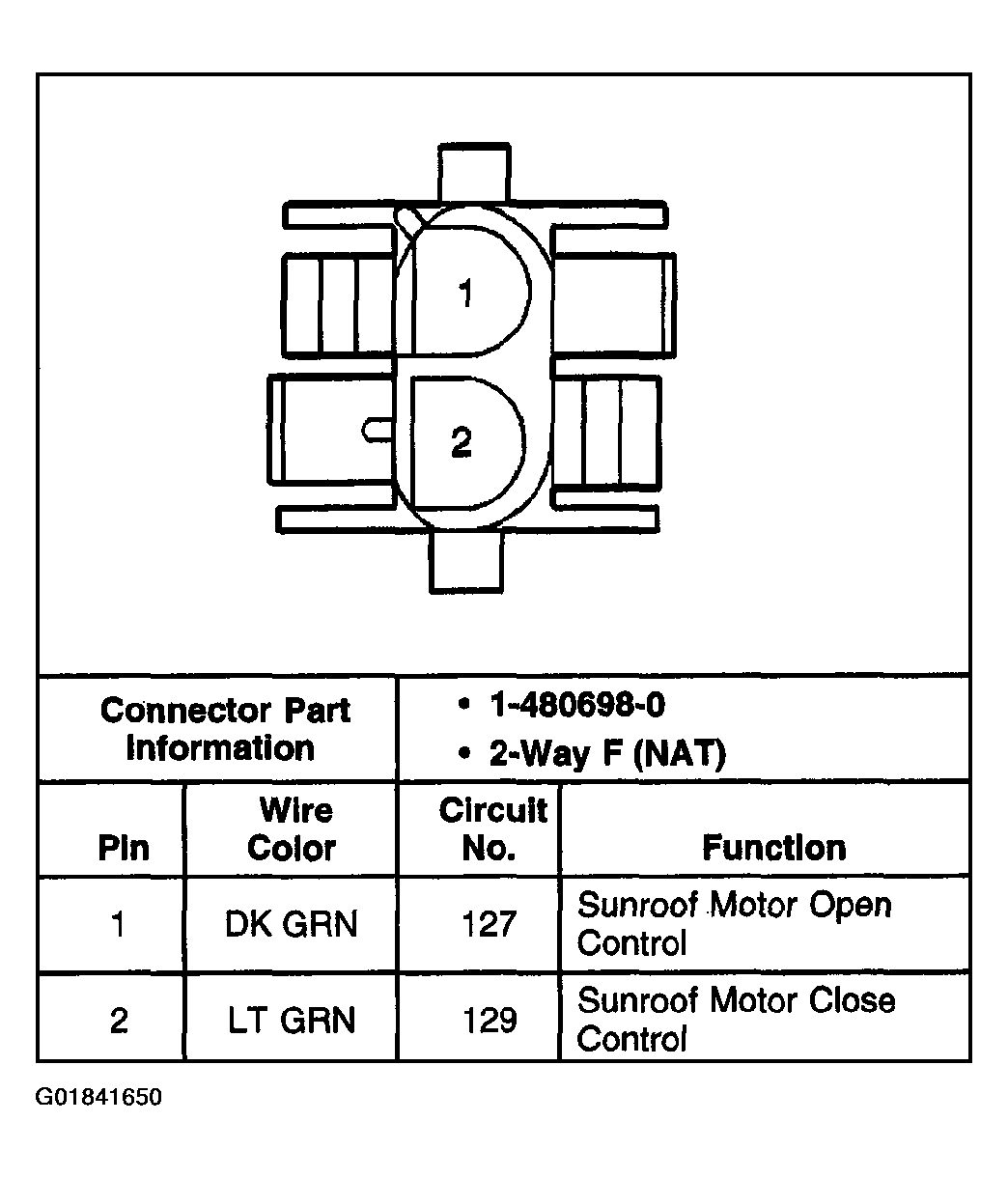

Fig 4: Sunroof Motor

Courtesy of GENERAL MOTORS CORP.

Fig 5: Sunroof Opening Position Switch

Courtesy of GENERAL MOTORS CORP.

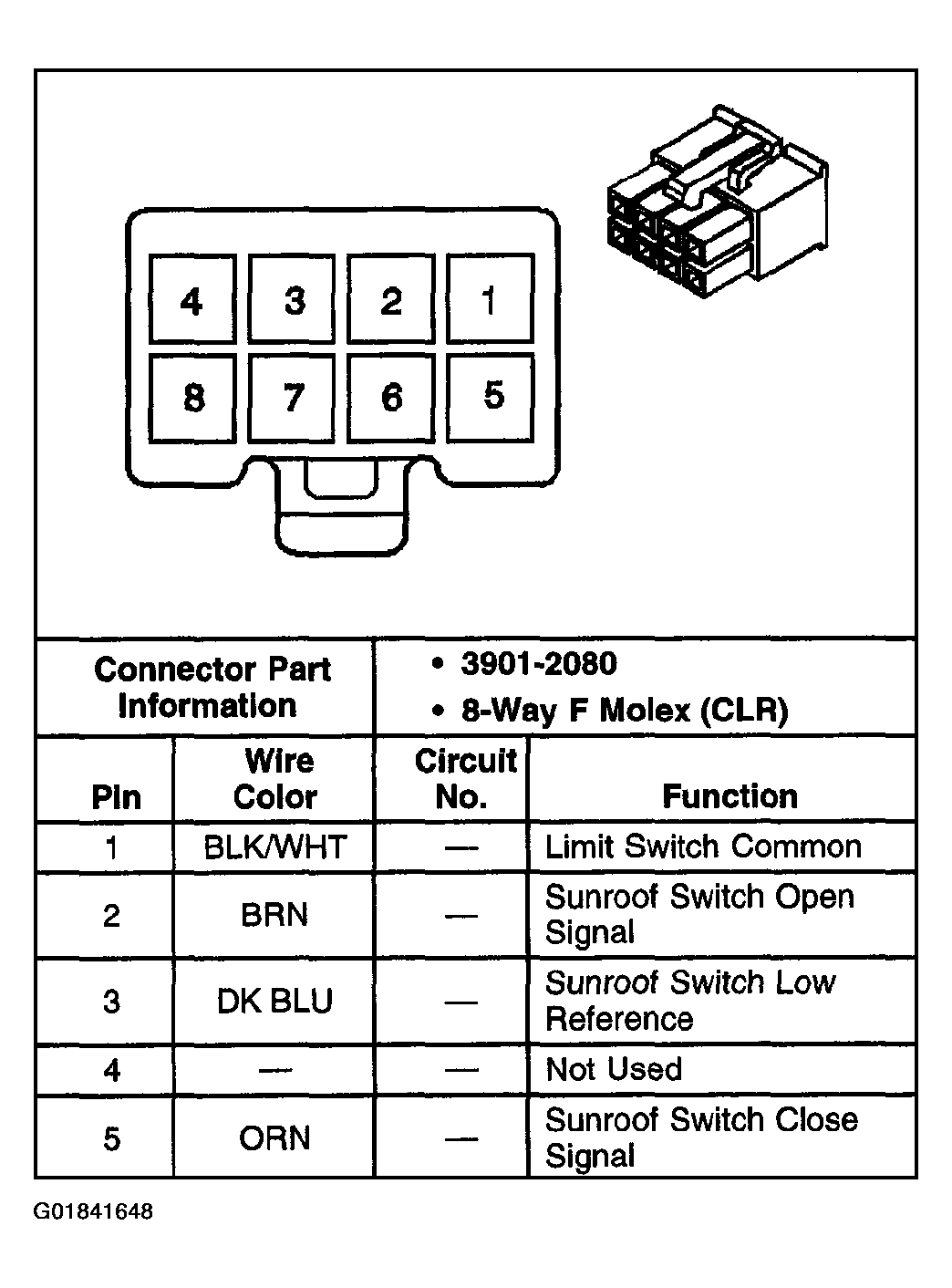

Fig 6: Sunroof Switch

Courtesy of GENERAL MOTORS CORP.
