Heated Seats Schematics

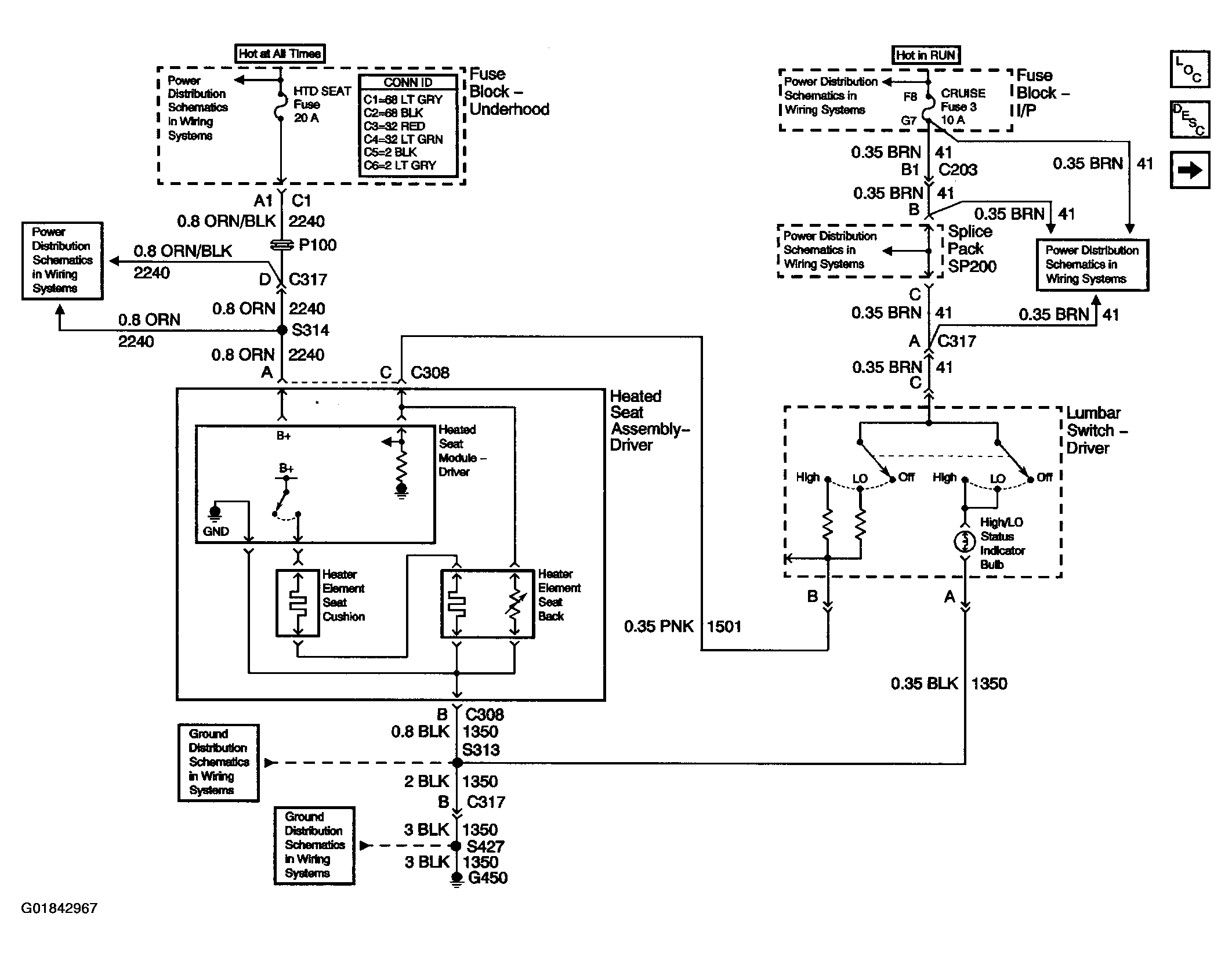

Fig 1: Heated Seats Schematics (Left Heated Seat)
Courtesy of GENERAL MOTORS CORP.

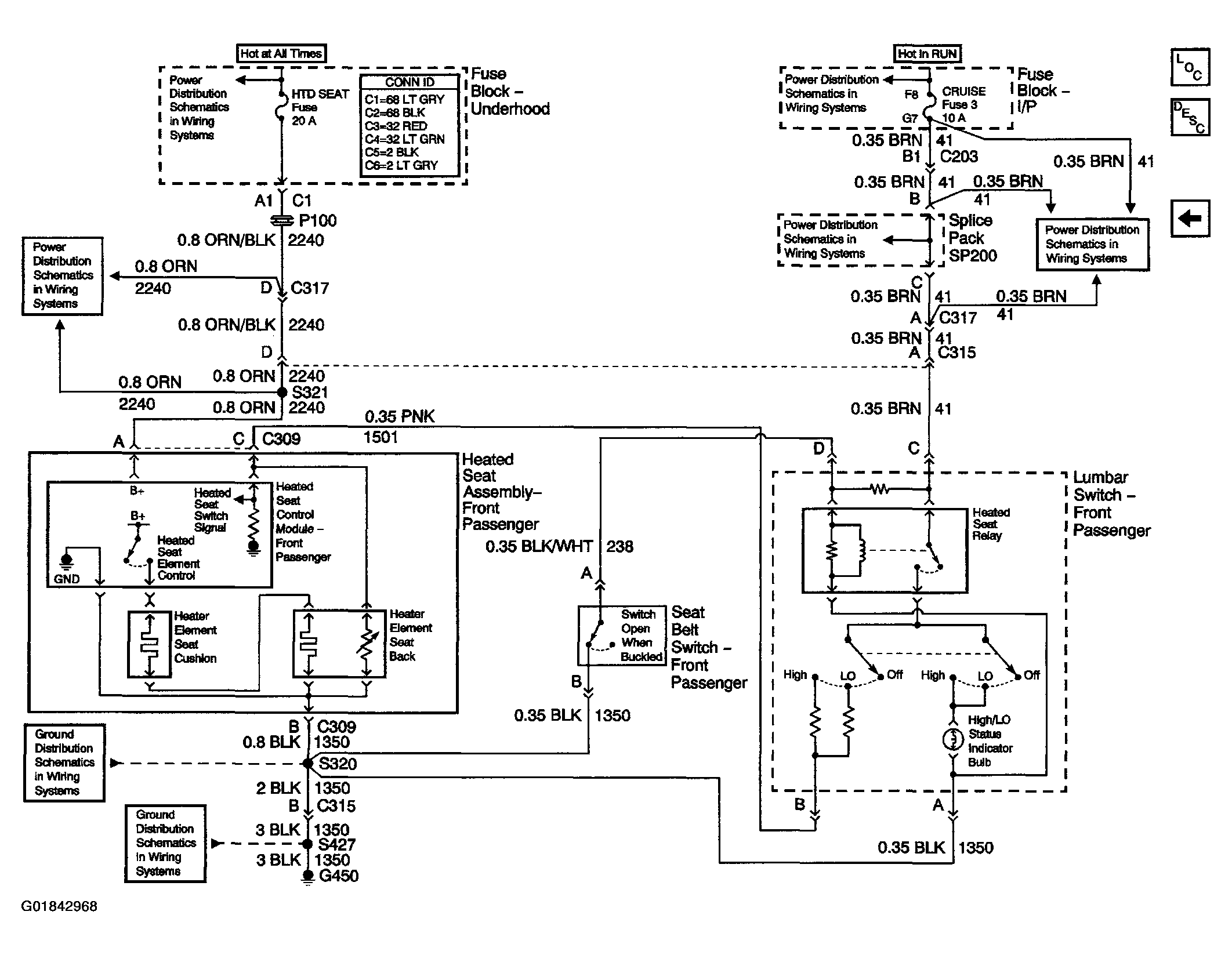

Fig 2: Heated Seats Schematics (Right Heated Seat)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
