Removal Procedure

  1. Remove the seat from the vehicle. Refer to SEAT REPLACEMENT - BUCKET  or SEAT REPLACEMENT - BENCH .
  2. Remove the 3 screws securing the trim panel to the seat.

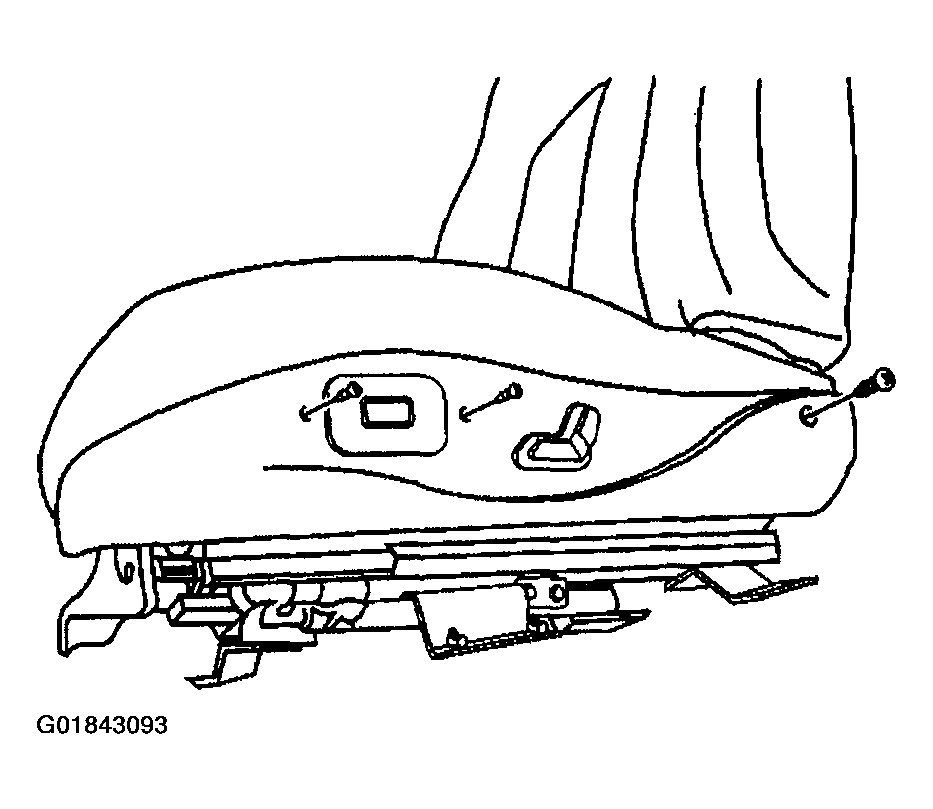

    Fig 1: Locating Trim Plate
    G01843093Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector from the switch.

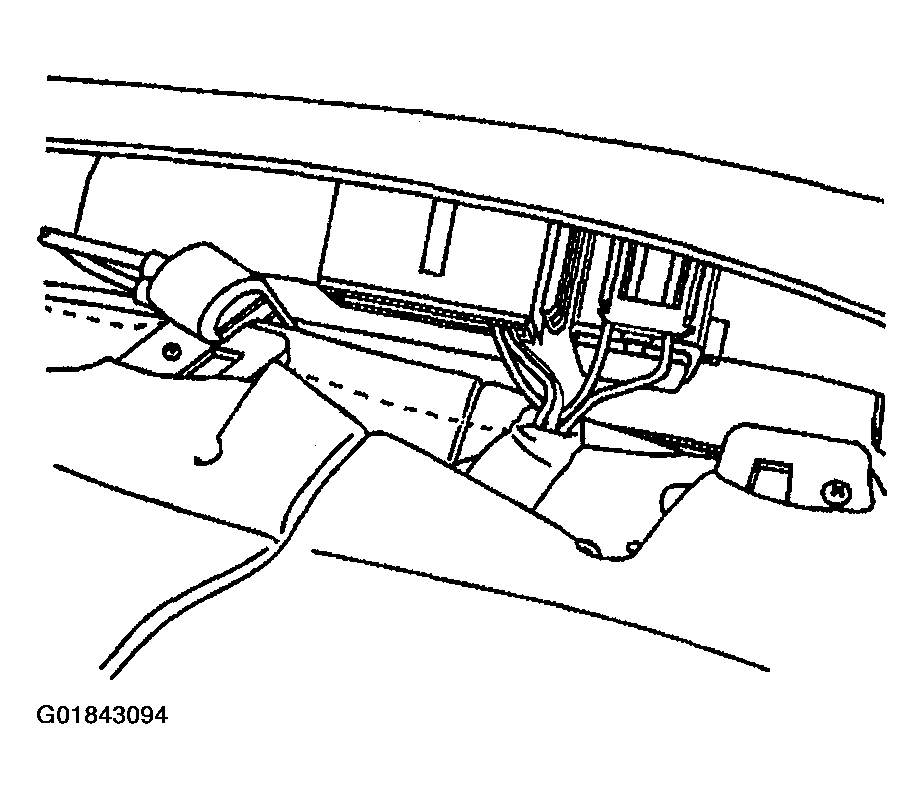

    Fig 2: Locating Power Seat Switch Electrical Connector
    G01843094Courtesy of GENERAL MOTORS CORP.
  4. Remove the switch from the trim panel by snapping the switch out of the plastic retaining tabs.
  5. Remove the switch assembly.

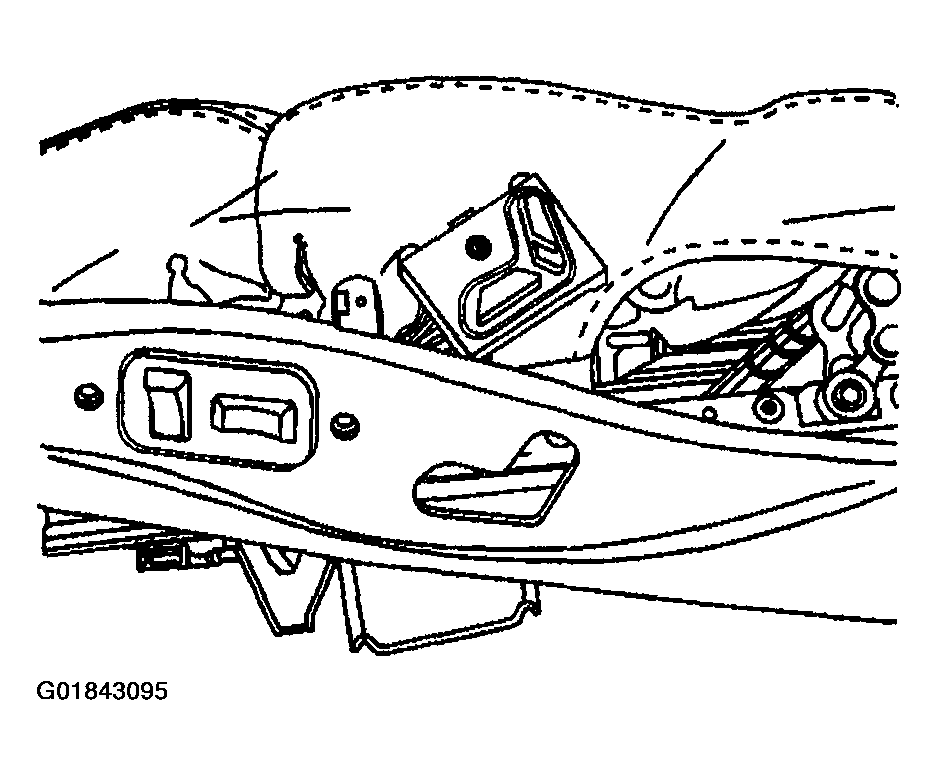

    Fig 3: Locating Power Seat Switch Assembly
    G01843095Courtesy of GENERAL MOTORS CORP.
