Removal Procedure

  1. Remove the 2 bolts securing the rear seat bottom to the floor.

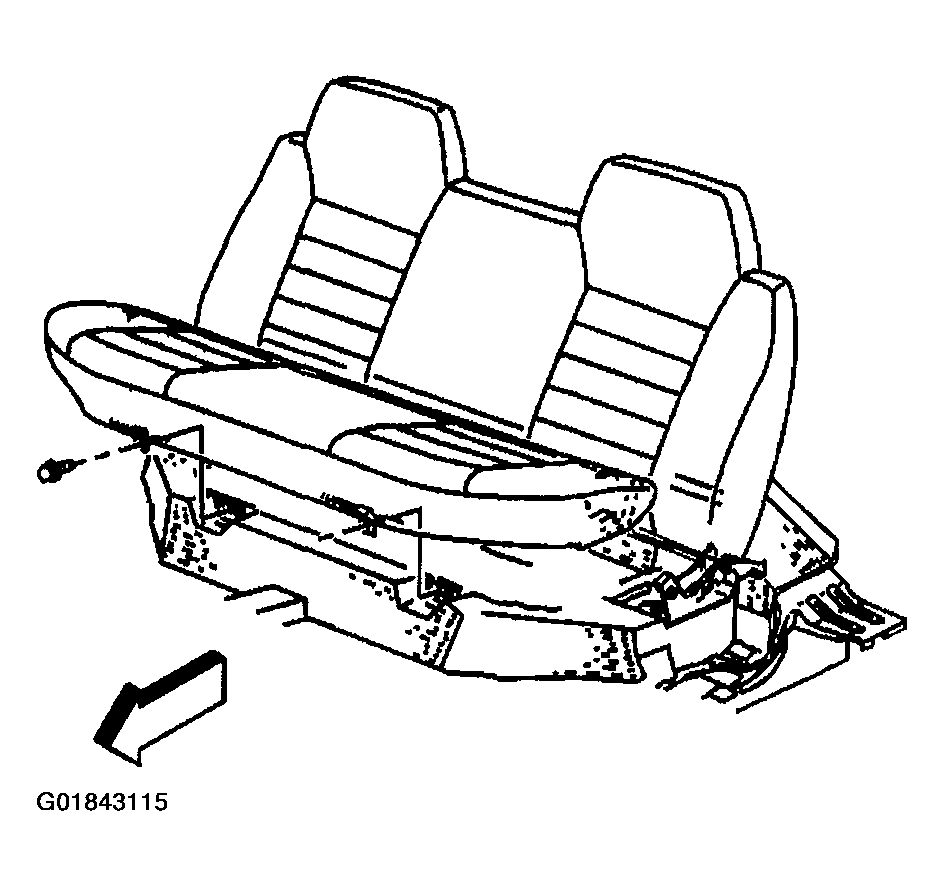

    Fig 1: Locating Rear Seat Bottom-To-Floor Bolts
    G01843115Courtesy of GENERAL MOTORS CORP.
  2. Carefully pull seat cushions ears to release retainers from the seat back mounting bracket.
  3. Lift the rear seat bottom out of the vehicle.
  4. Remove the 2 bolts securing the rear seat back to the floor.

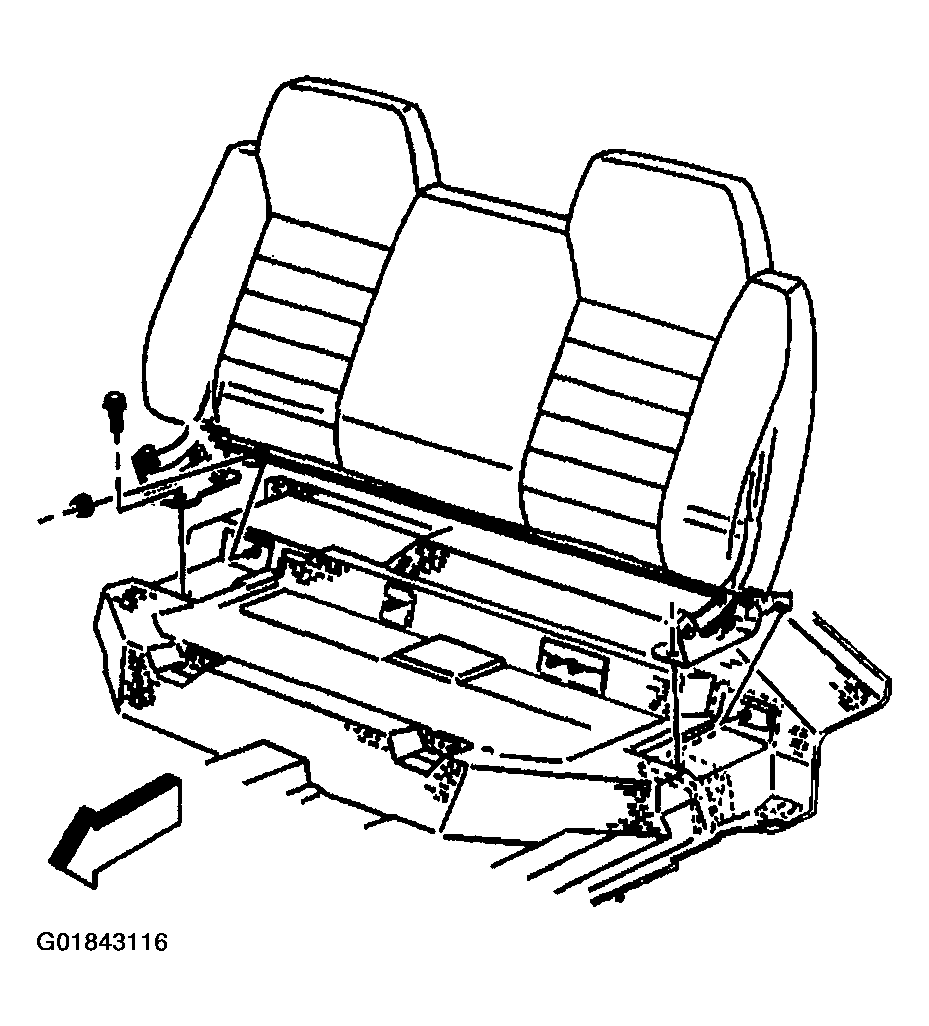

    Fig 2: Locating Rear Seat Back-To-Floor Bolts
    G01843116Courtesy of GENERAL MOTORS CORP.
  5. Remove the 2 nuts and washers securing the rear seat back to the floor studs.
  6. Remove the rear seat back from the vehicle.
