Installation Procedure

  1. Install the seat to the vehicle.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
  2. Fold the seat back forward in order to install the rear seat mounting nuts.

    Tighten

    Tighten the rear seat mounting nuts to 80 N.m (59 lb ft).

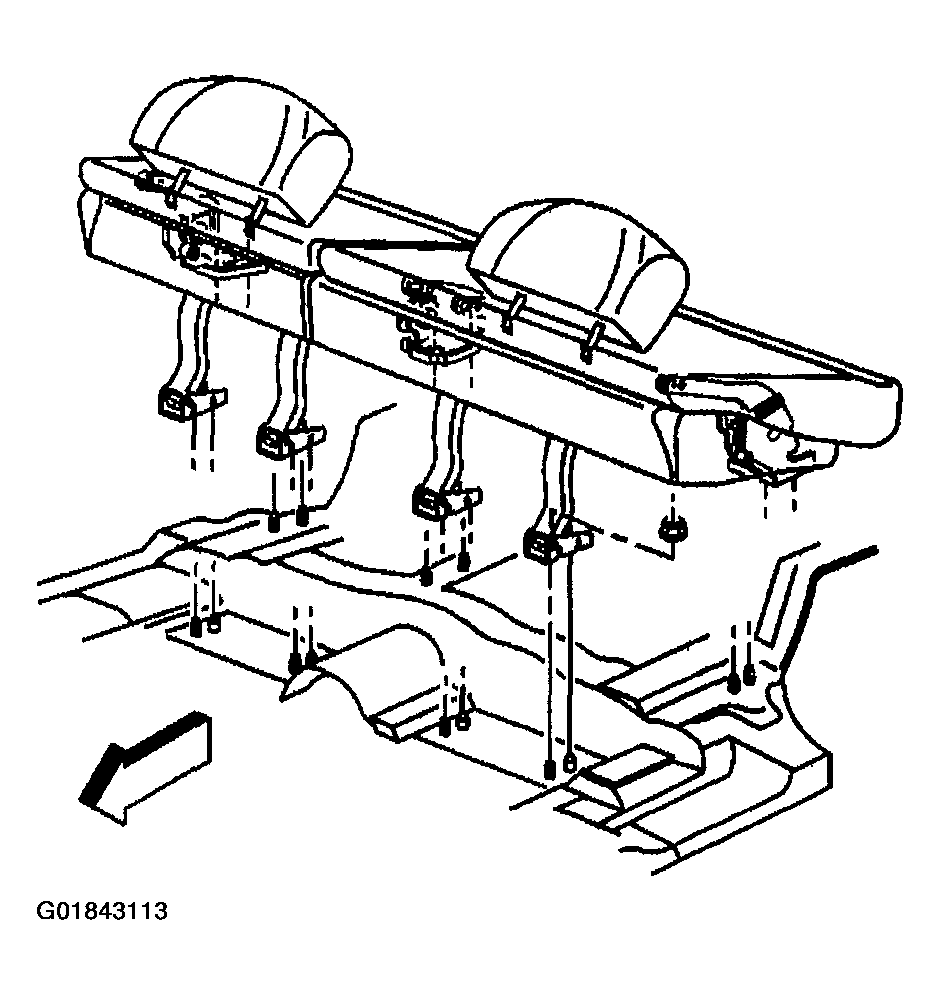

    Fig 1: Locating Rear Seat Mounting Nuts
    G01843113Courtesy of GENERAL MOTORS CORP.
  3. Install the seat leg trim covers. Ensure that the covers lock into place.

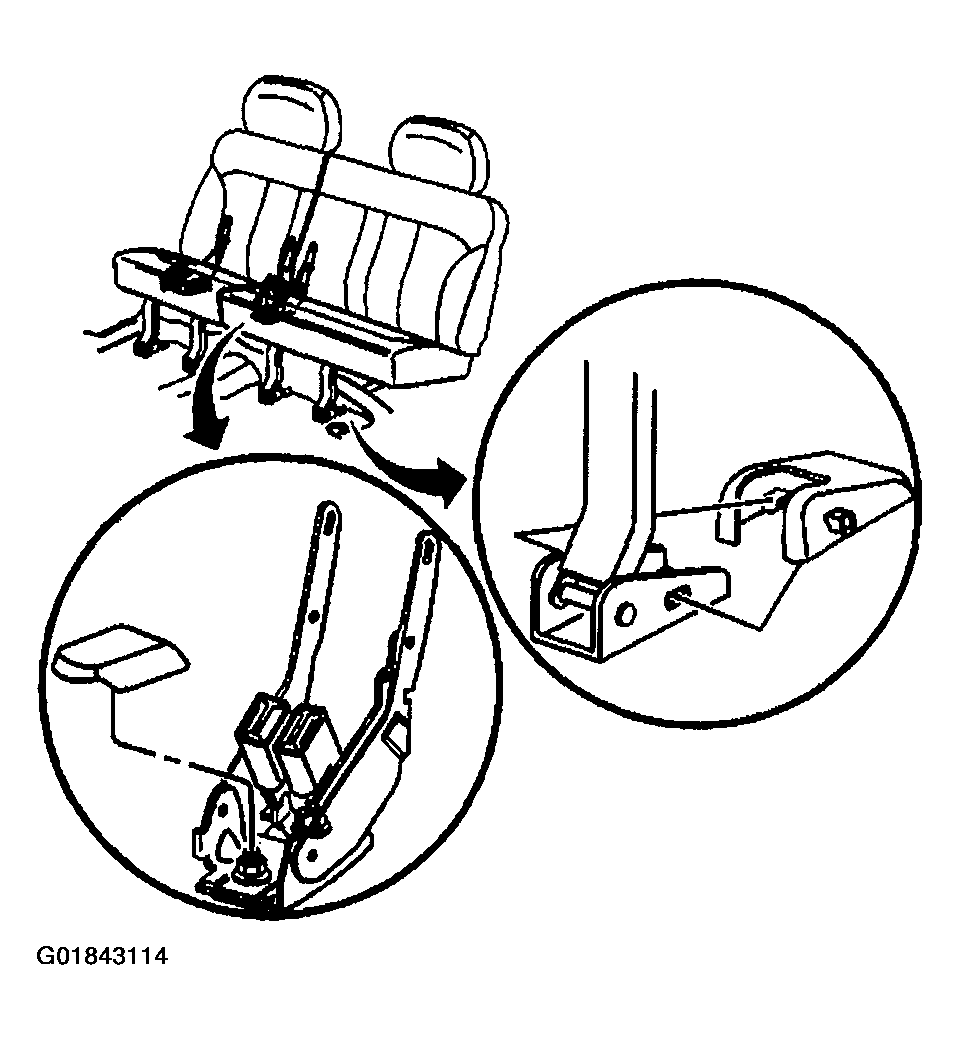

    Fig 2: Locating Seat Leg Trim Covers
    G01843114Courtesy of GENERAL MOTORS CORP.
