Removal Procedure

IMPORTANT: Remove the passenger side seat before removing the driver side seat.
  1. Remove the seat leg trim covers.

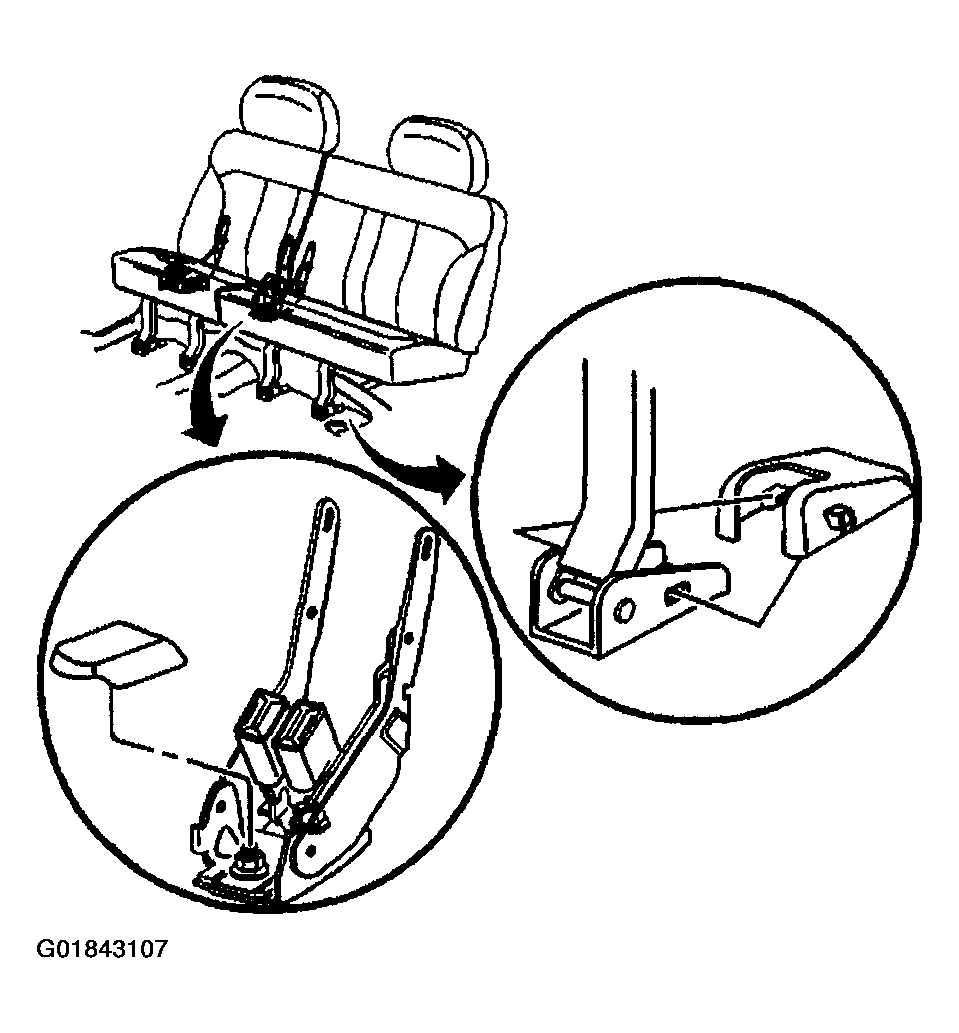

    Fig 1: Locating Seat Leg Trim Covers
    G01843107Courtesy of GENERAL MOTORS CORP.
  2. Tilt the seat back slightly forward in order to remove the seat leg nuts.

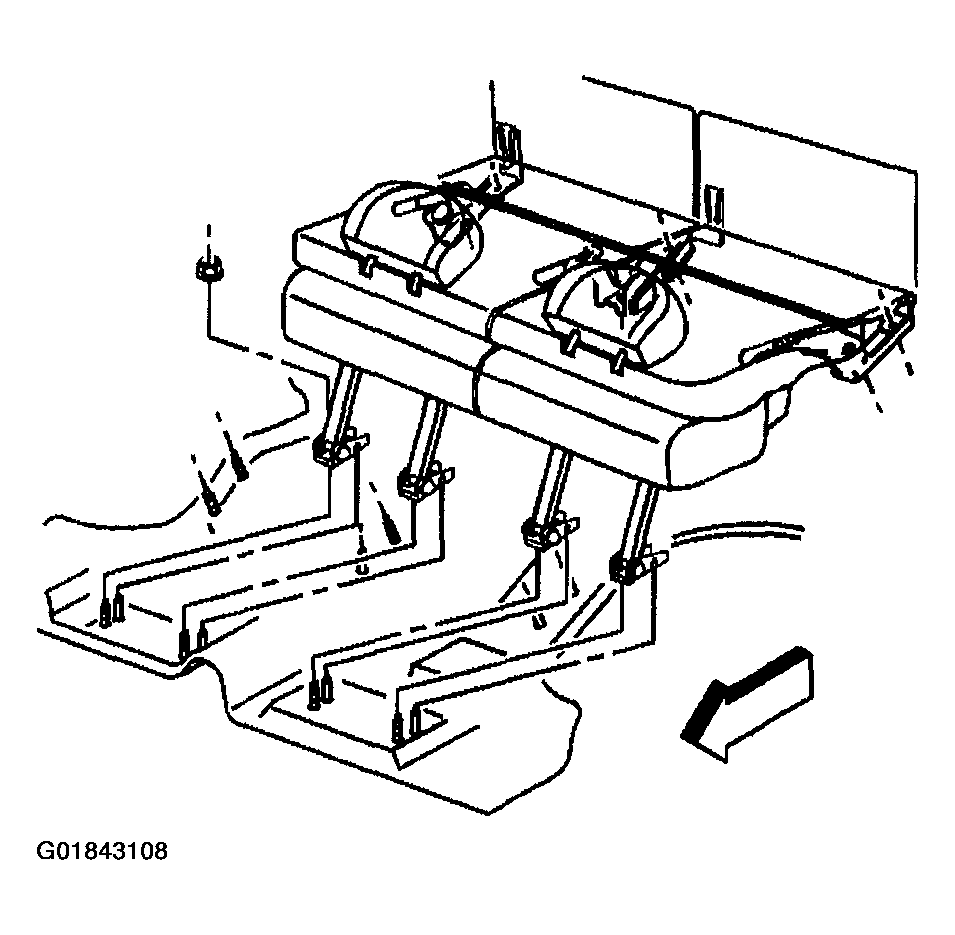

    Fig 2: Locating Seat Leg Nuts
    G01843108Courtesy of GENERAL MOTORS CORP.
  3. Fold the seat in order to remove the rear seat nuts.
  4. Remove the seat from the vehicle.
