Installation Procedure

Install the jump seat to the vehicle.
NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
Install the jump seat retaining bolts and nuts.
Tighten

Tighten the jump seat retaining bolts and nuts to 25 N.m (19 lb ft).

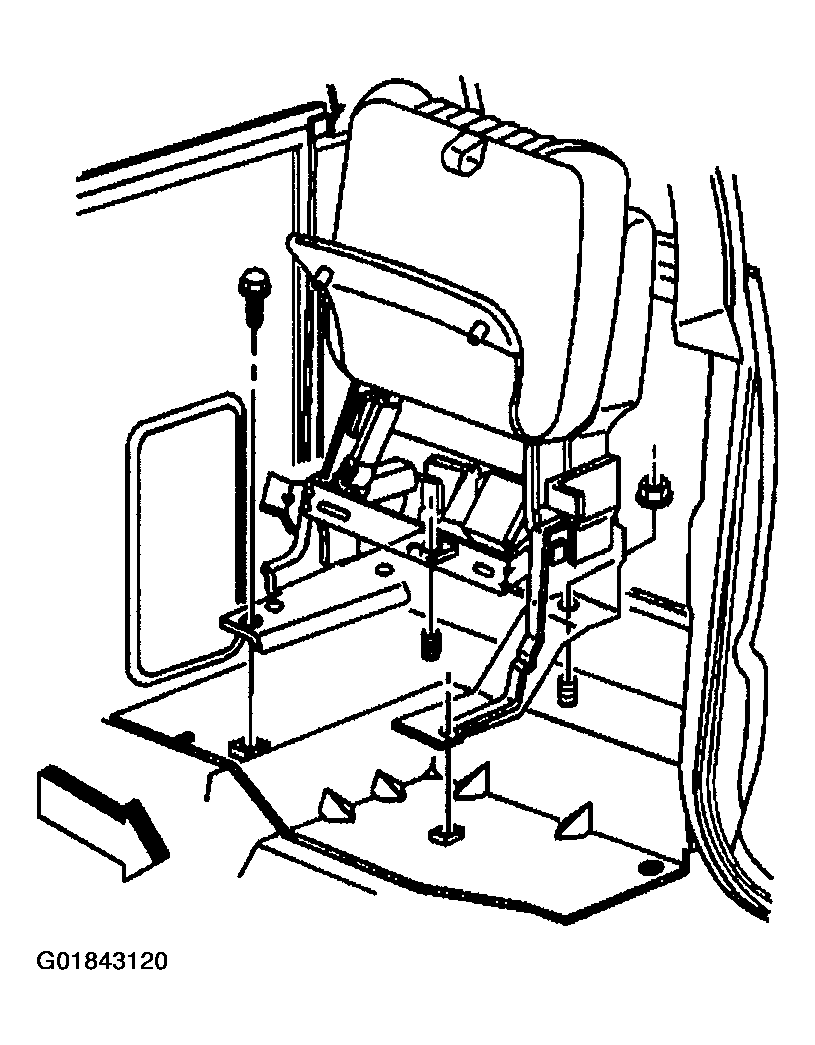

Fig 1: Locating Jump Seat Retaining Bolts & Nuts
Courtesy of GENERAL MOTORS CORP.
Install the body side trim panel. Refer to TRIM PANEL REPLACEMENT - BODY SIDE (STANDARD CAB PICKUP) , TRIM PANEL REPLACEMENT - BODY SIDE (EXTENDED CAB PICKUP) , TRIM PANEL REPLACEMENT - BODY SIDE (2-DOOR UTILITY) , TRIM PANEL REPLACEMENT - BODY SIDE (4-DOOR UTILITY) or TRIM PANEL REPLACEMENT - BODY SIDE (CREW CAB)
