Removal Procedure

  1. Remove the seat adjuster trim covers. Refer to SEAT ADJUSTER TRACK COVER REPLACEMENT - FRONT (POWER)  or SEAT ADJUSTER TRACK COVER REPLACEMENT - FRONT (MANUAL) .
  2. Remove 3 seat mounting nuts.

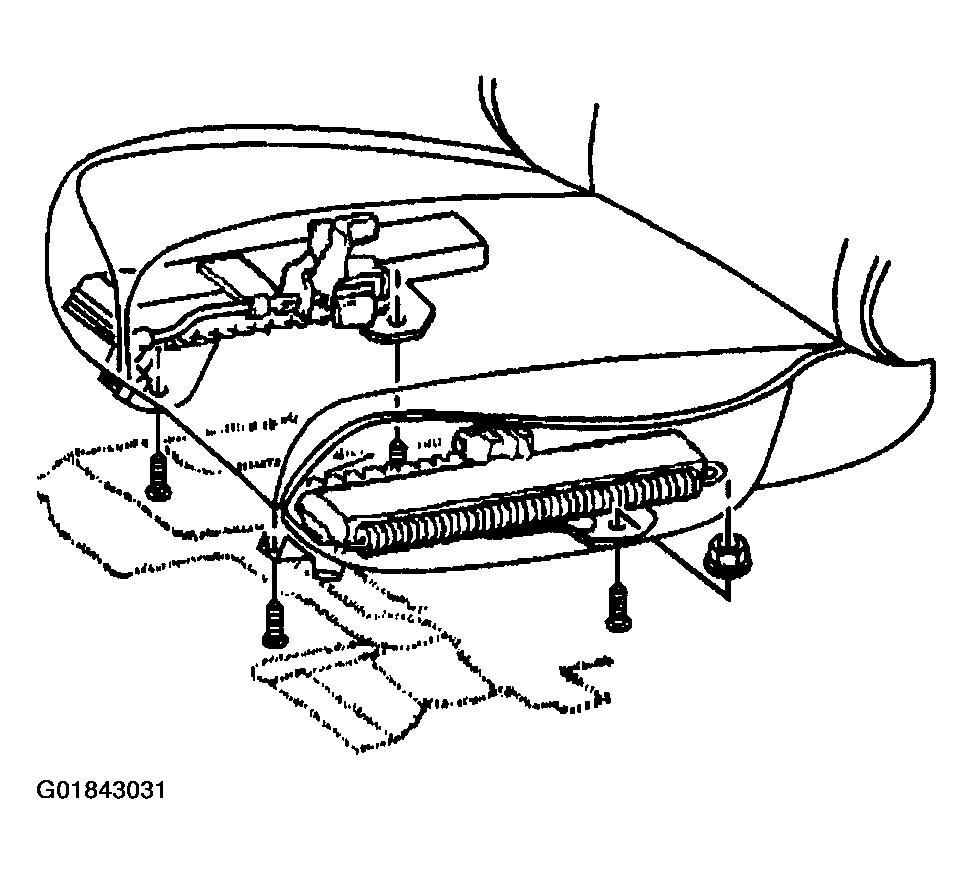

    Fig 1: Locating Seat Mounting Bolt & Nuts
    G01843031Courtesy of GENERAL MOTORS CORP.
  3. Remove the seat mounting bolt.
  4. Disconnect the electrical connectors from seat if necessary.
  5. Remove the seat from the vehicle.
