Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION in GM VEHICLES CAUTIONS & NOTICES article.
  1. Disconnect the battery negative cable in the power seat only.
  2. Remove the seat adjuster trim covers. Refer to SEAT ADJUSTER TRACK COVER REPLACEMENT - FRONT (POWER)  or SEAT ADJUSTER TRACK COVER REPLACEMENT - FRONT (MANUAL) .
  3. Disconnect the electrical connectors, if equipped.
  4. Remove the seat mounting nuts.
  5. Remove the seat mounting bolts.

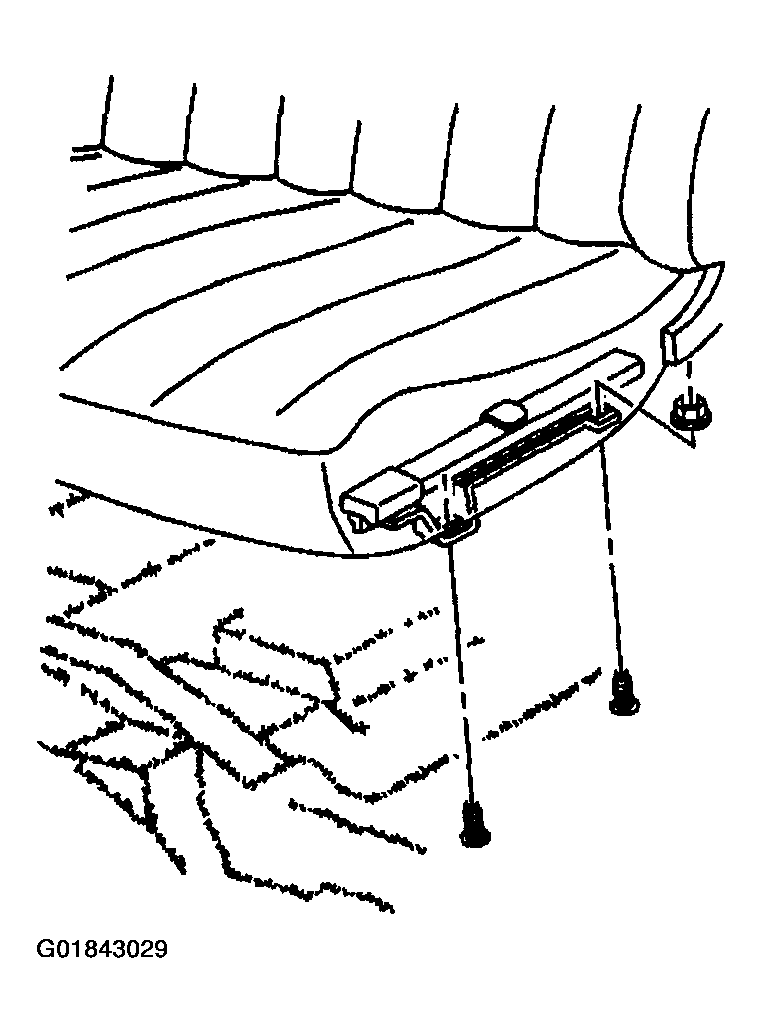

    Fig 1: Locating Seat Mounting Bolts
    G01843029Courtesy of GENERAL MOTORS CORP.
  6. Guide the seat belts through the slots in the seat. Remove the seat from the vehicle.
