Removal Procedure

  1. Remove the seat from the vehicle. Refer to SEAT REPLACEMENT - BUCKET .
  2. Remove the cupholder and bracket, if equipped. Refer to CUPHOLDER REPLACEMENT - FRONT SEAT .
  3. Remove the seat back recliner assembly, if equipped. Refer to SEAT BACK RECLINER REPLACEMENT - FRONT .
  4. Remove the trim plate.

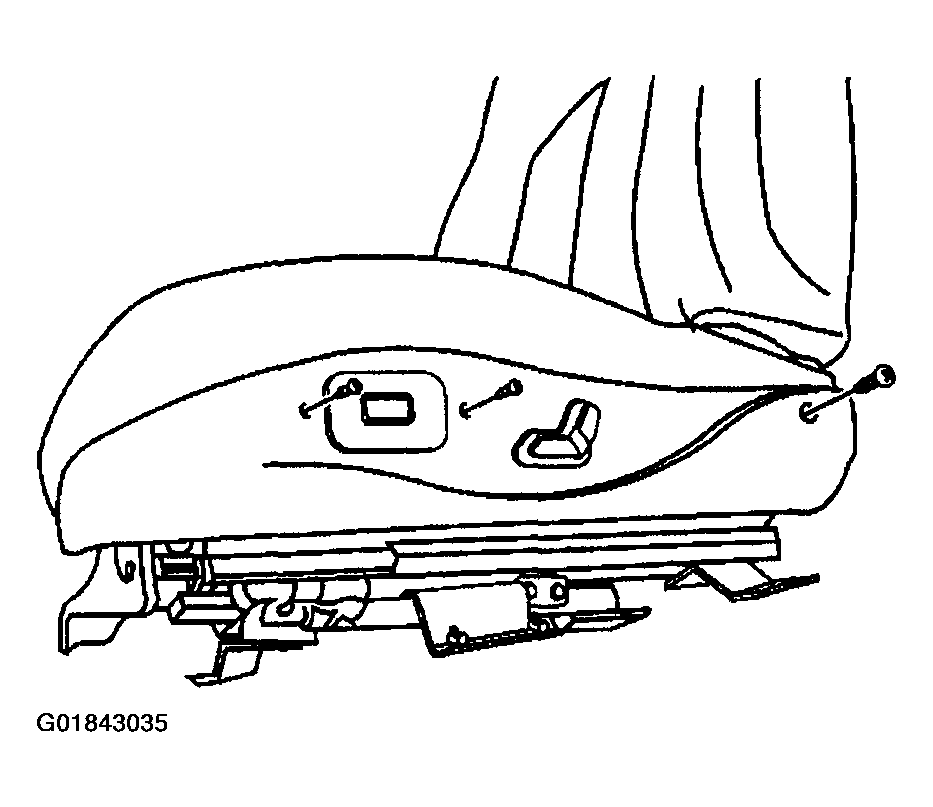

    Fig 1: Locating Trim Plate
    G01843035Courtesy of GENERAL MOTORS CORP.
  5. Separate the J-strips from the seat bottom frame.

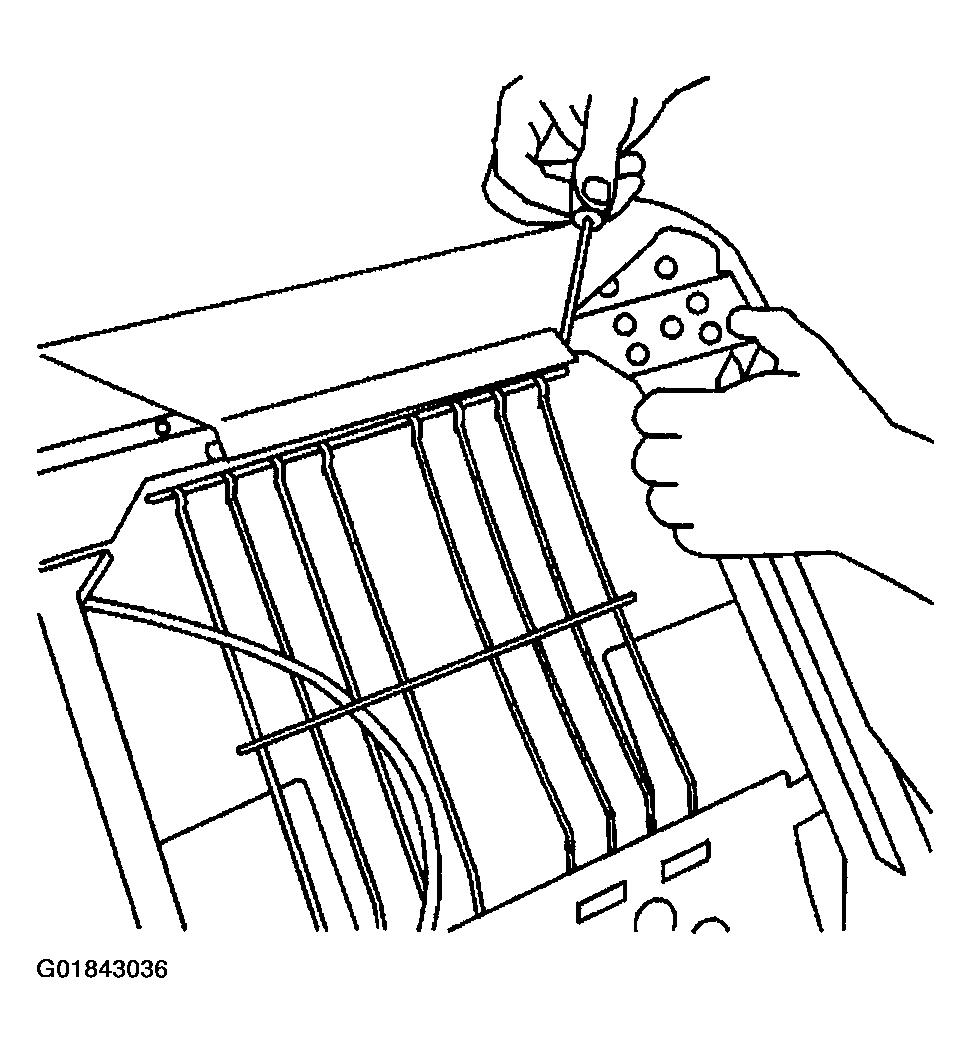

    Fig 2: Locating Seat Bottom Frame J-Strips
    G01843036Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not damage the seat fabric when removing the velcro retaining cover.
  6. Separate the hook and loop strips (1) that retain the seat pad (3) to the seat cover (2).

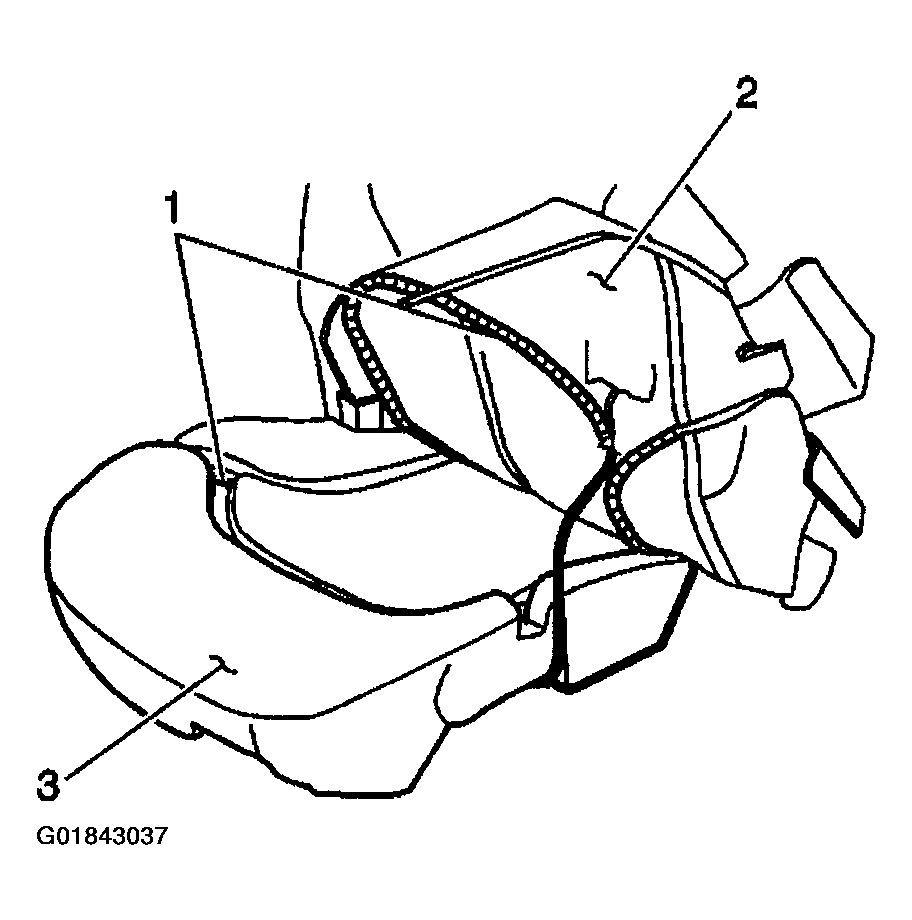

    Fig 3: Locating Seat Pad & Cover Hook & Loop Strips
    G01843037Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the electrical connections, as needed.
  8. Remove the seat back release lever, if equipped. Refer to SEAT BACK RECLINER HANDLE REPLACEMENT - FRONT .
  9. Remove the manual lumbar support knob, if equipped. Refer to LUMBAR SUPPORT KNOB REPLACEMENT .
  10. Remove the power lumbar control switch, if equipped. Refer to LUMBAR SWITCH REPLACEMENT .
  11. Remove the power seat control switch, if equipped. Refer to SEAT SWITCH REPLACEMENT - POWER .
  12. Remove the seat back from the seat bottom bolts.
  13. Remove the seat belt buckle bolt.

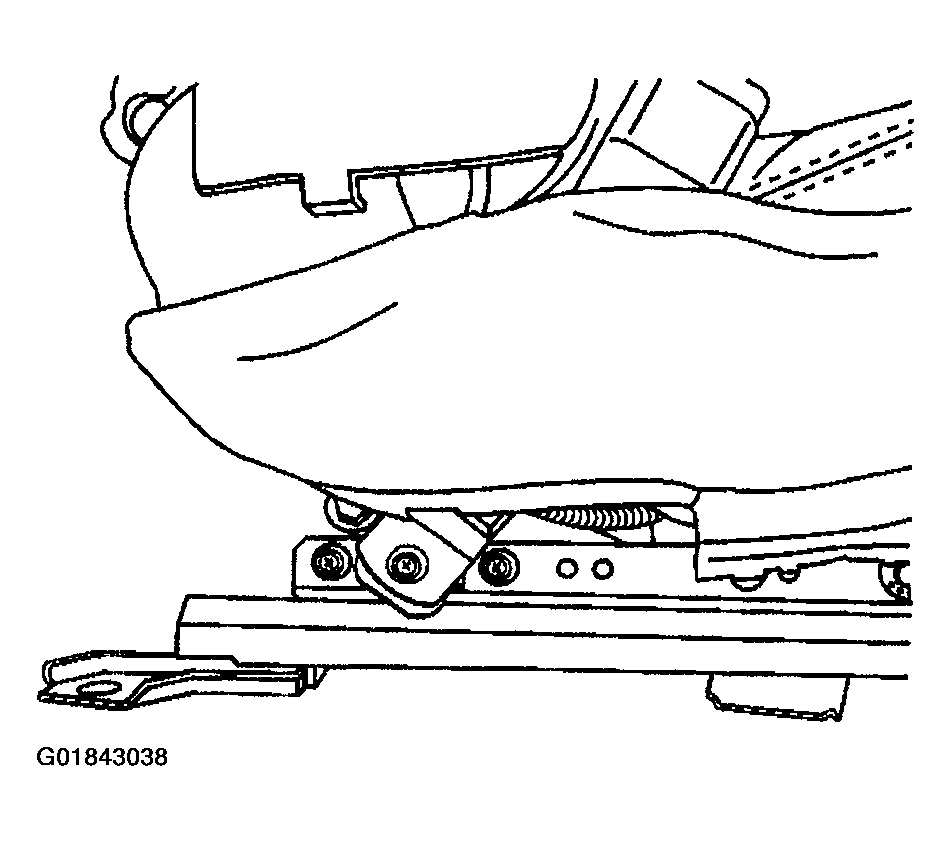

    Fig 4: Locating Seat Belt Buckle Bolt
    G01843038Courtesy of GENERAL MOTORS CORP.
  14. Remove the seat belt buckle from the seat.
  15. Remove the seat bottom cover.
  16. Remove the seat bottom pad.
