Installation Procedure

  1. Install the seat bottom pad to the seat bottom.
  2. Install the seat bottom cover over the pad.
  3. Engage the J-strips to the seat bottom frame.

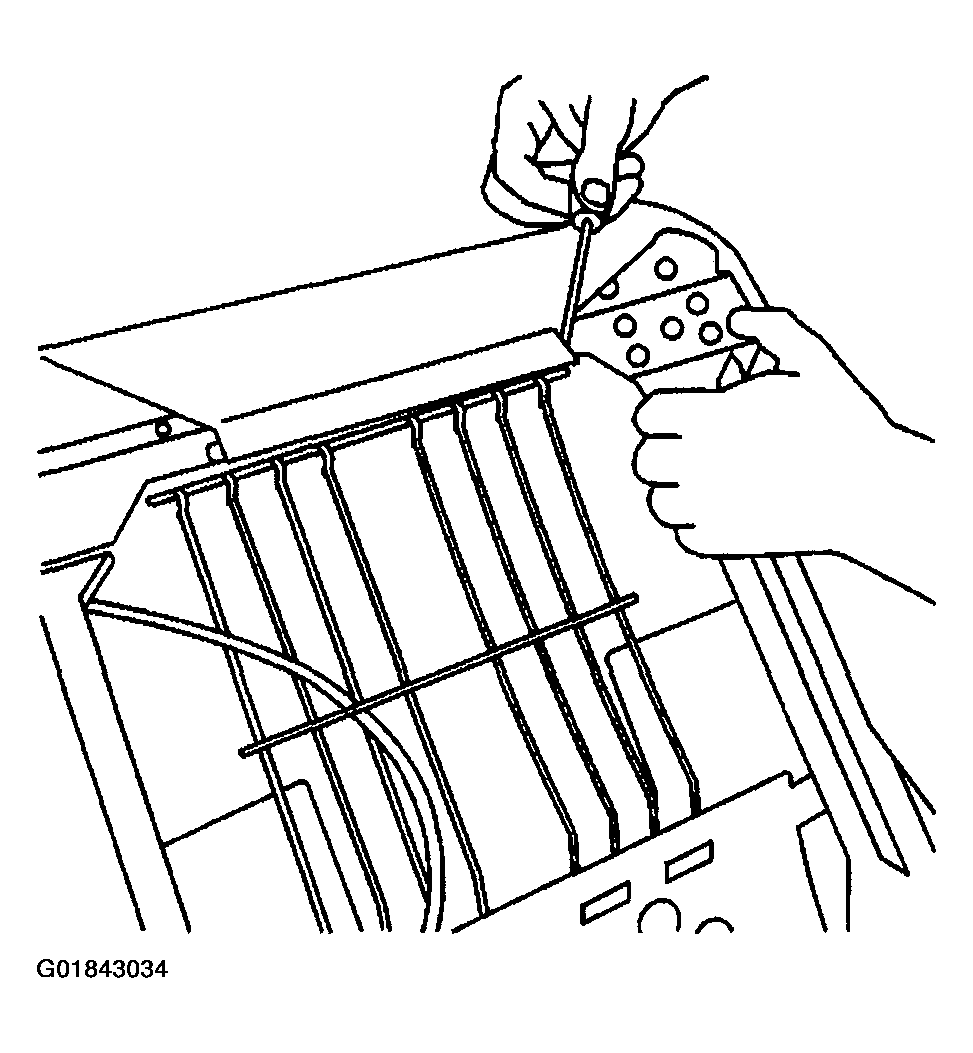

    Fig 1: Locating Seat Bottom Frame J-Strips
    G01843034Courtesy of GENERAL MOTORS CORP.
  4. Install the seat back. Refer to SEAT BACK REPLACEMENT - FRONT (BENCH SEAT)  or SEAT BACK REPLACEMENT - FRONT (BUCKET SEAT)
  5. Install the seat back release lever, if equipped. Refer to SEAT BACK RECLINER HANDLE REPLACEMENT - FRONT .
  6. Install the manual lumbar knob lever, if equipped. Refer to LUMBAR SUPPORT KNOB REPLACEMENT .
  7. Install the seat to the vehicle. Refer to SEAT REPLACEMENT - BENCH .
