Removal Procedure

  1. Remove the seat from the vehicle. Refer to SEAT REPLACEMENT - BUCKET .
  2. Remove the seat back cover and pad. Refer to SEAT BACK COVER & PAD REPLACEMENT - FRONT .
  3. Remove the seat cushion trim cover and pad. Refer to SEAT CUSHION TRIM COVER & PAD REPLACEMENT (BENCH)  or SEAT CUSHION TRIM COVER & PAD REPLACEMENT (BUCKET) .
  4. Disconnect the electrical connector for the seat back recliner motor, if equipped.

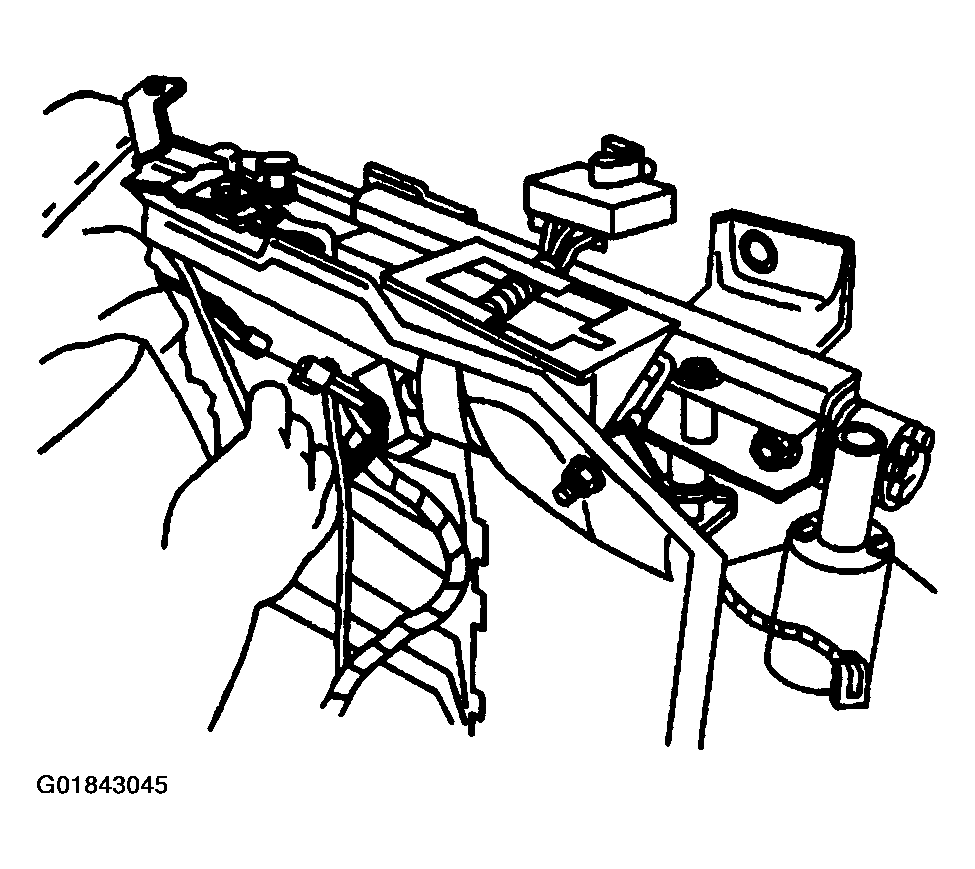

    Fig 1: Locating Seat Back Recliner Motor Electrical Connector
    G01843045Courtesy of GENERAL MOTORS CORP.
  5. Remove the bolts securing the seat back to the seat adjuster assembly.
  6. Remove the seat back.
