Removal Procedure

  1. Remove the seat from the vehicle. Refer to SEAT REPLACEMENT - BUCKET .
  2. Remove the seat back recliner handle.
  3. Remove the 4 J-strips (1) securing the seat cover to the frame.

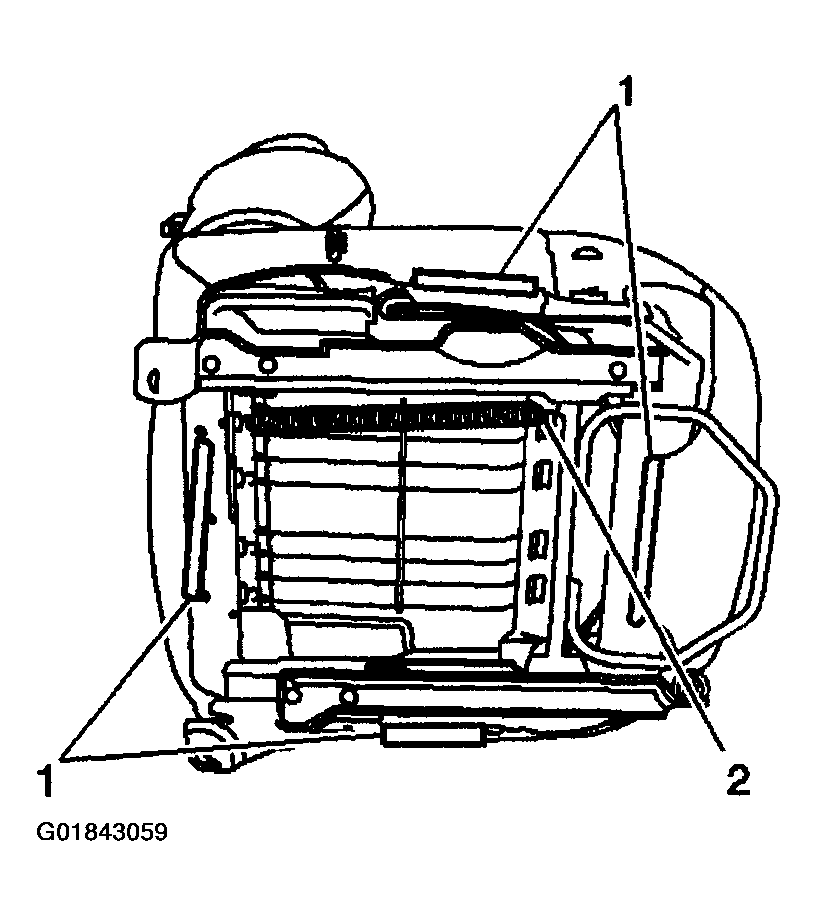

    Fig 1: Locating Seat Cover-To-Frame J-Strips & Seat Adjuster Spring
    G01843059Courtesy of GENERAL MOTORS CORP.
  4. Remove spring (2) from the seat adjuster.
  5. Pull the seat cushion pad and cover back to expose the frame.
  6. Remove the 2 nuts (1) securing the seat adjuster rail to the frame.

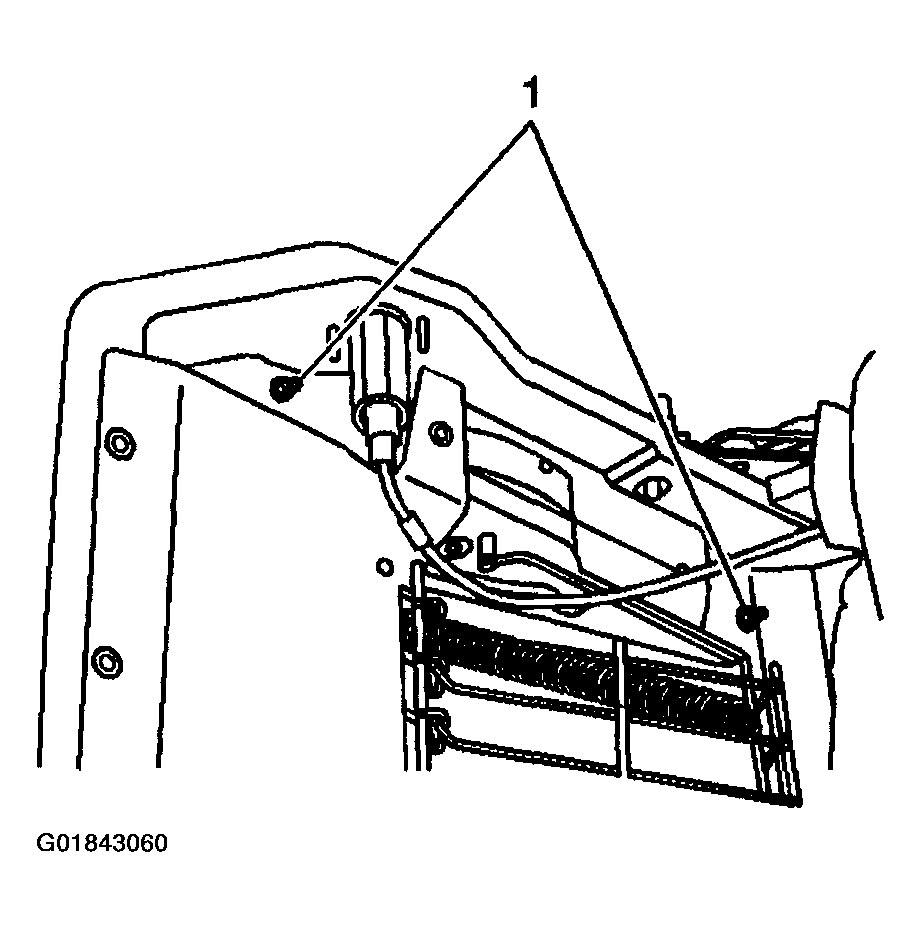

    Fig 2: Locating Seat Adjuster Rail-To-Frame Nuts
    G01843060Courtesy of GENERAL MOTORS CORP.
  7. Remove the cable (2) from the clip (1) on the adjuster rail.
  8. Remove the cable (2) from the hole in the adjuster rail.
  9. Remove the cable from the pass through hole (2) in the adjuster rail.

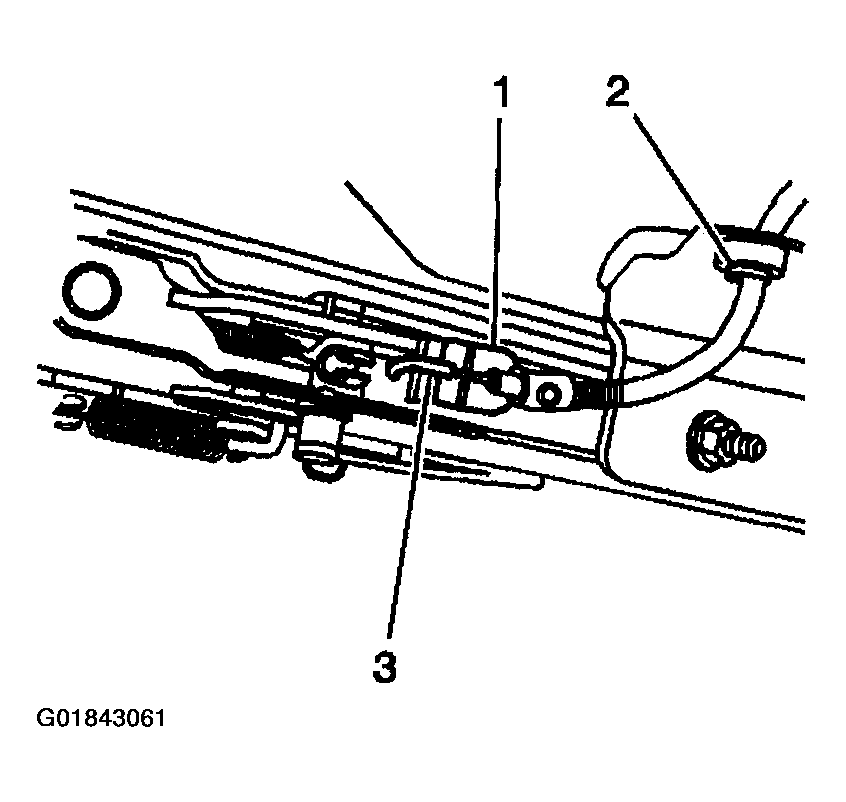

    Fig 3: Locating Seat Back Release Cable At Adjuster Rail
    G01843061Courtesy of GENERAL MOTORS CORP.
  10. Remove the 2 bolts (1) from the seat back pivot assembly.
  11. Remove the cable cover bracket (2).

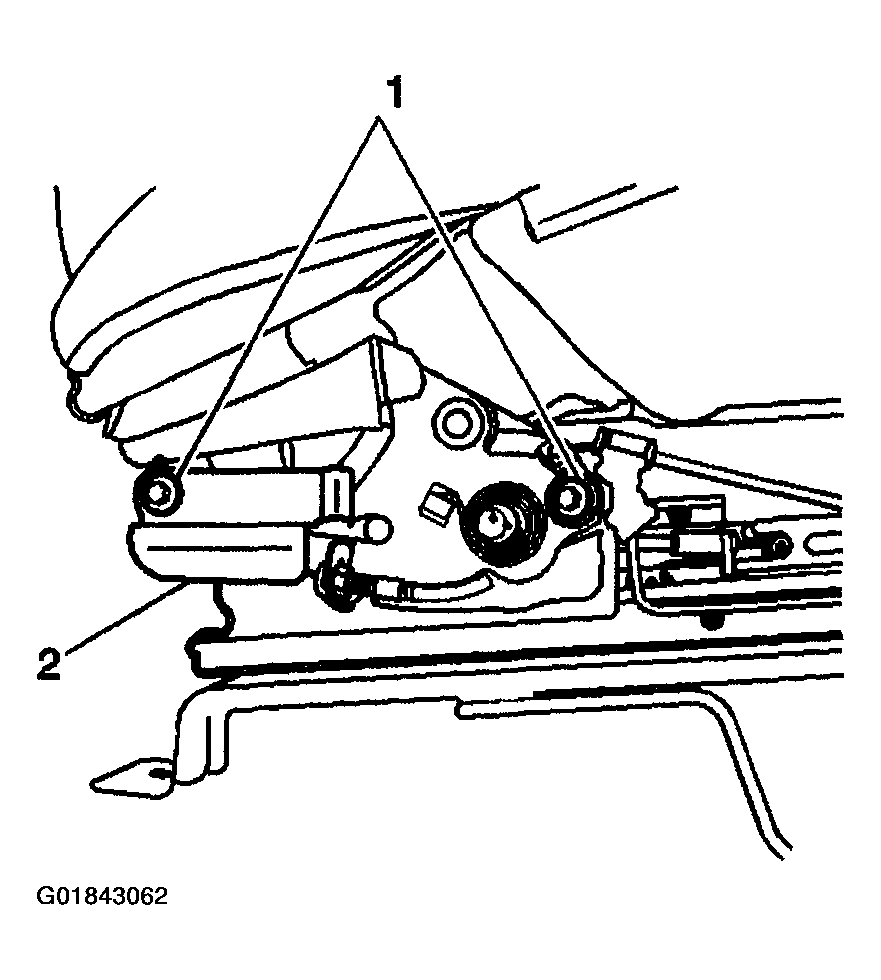

    Fig 4: Locating Seat Back Pivot Assembly Components
    G01843062Courtesy of GENERAL MOTORS CORP.
  12. Remove the cable (3) from the bracket (1) by loosening cable nut (2).
  13. Remove cable (3).

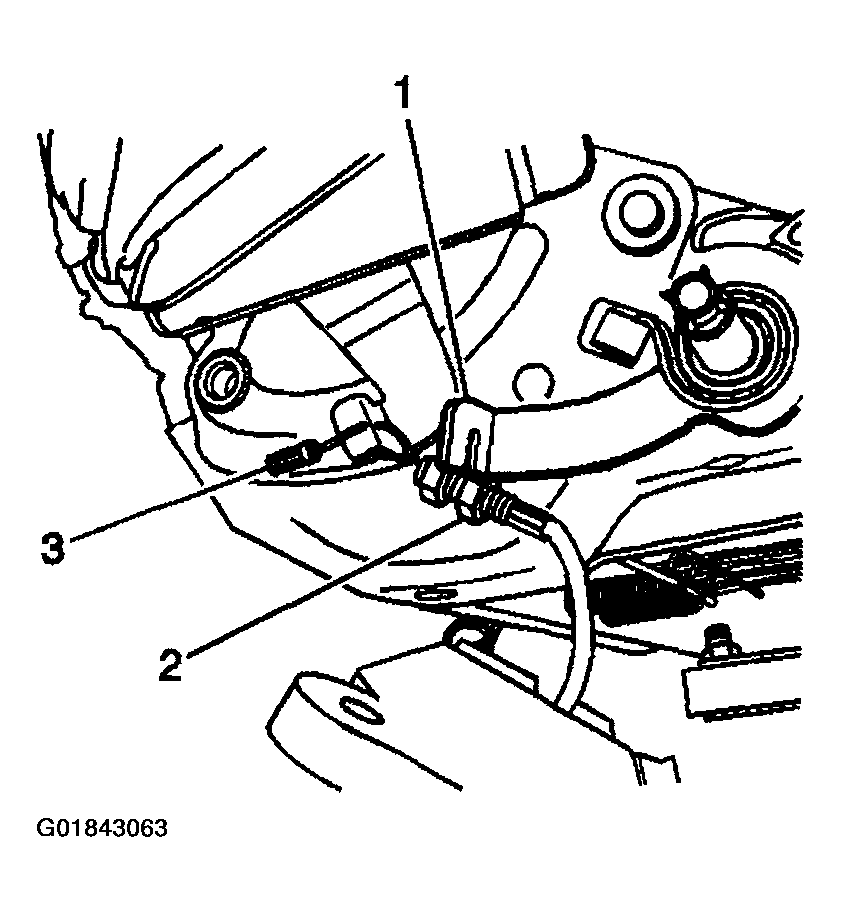

    Fig 5: Locating Seat Back Release Cable Bracket
    G01843063Courtesy of GENERAL MOTORS CORP.
