Removal Procedure

  1. Remove the recliner handle.
  2. Remove the recliner cover.
  3. Remove the inertia latch from the recliner assembly.

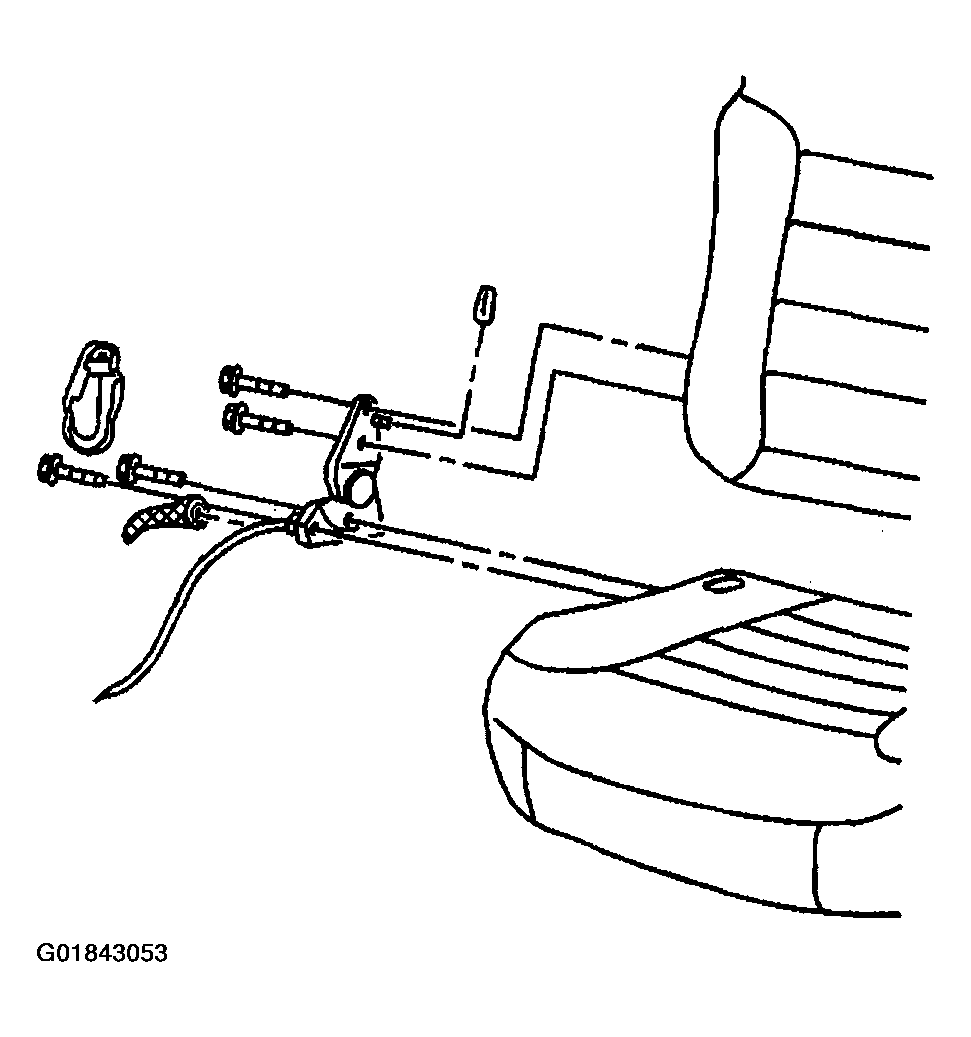

    Fig 1: Locating Recliner Assembly Components
    G01843053Courtesy of GENERAL MOTORS CORP.
  4. Remove the recliner assembly bolts.
  5. Remove the recliner assembly from the seat.
