Installation Procedure

  1. Install the recliner assembly to the seat.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
  2. Install the recliner assembly to the seat frame bolts.

    Tighten

    Tighten the recliner assembly to the seat frame bolts to 24 N.m (18 lb ft).

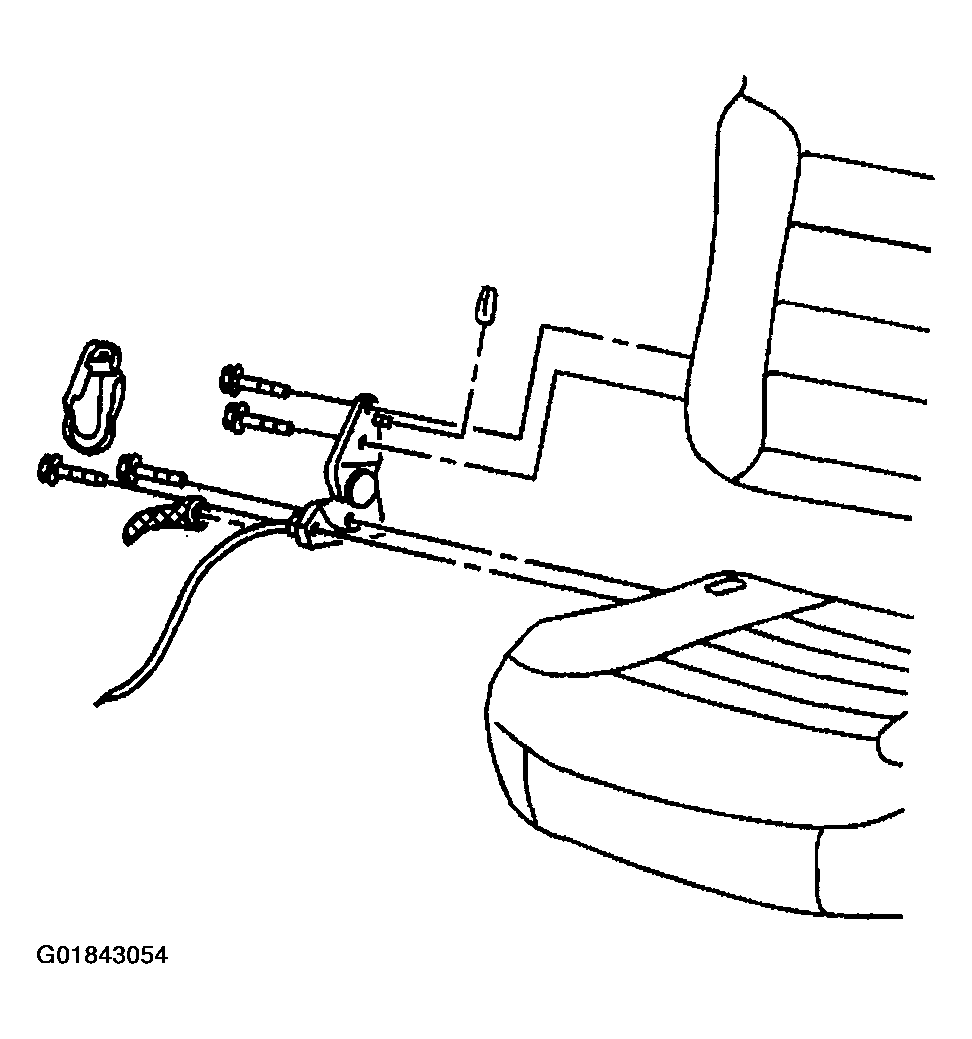

    Fig 1: Locating Recliner Assembly Components
    G01843054Courtesy of GENERAL MOTORS CORP.
  3. Install the inertia latch.
  4. Install the recliner trim cover to the seat.
  5. Install the recliner handle.
