Removal Procedure

  1. Remove the handle retaining screw.
  2. Remove the recliner handle (1) from the seat bottom.

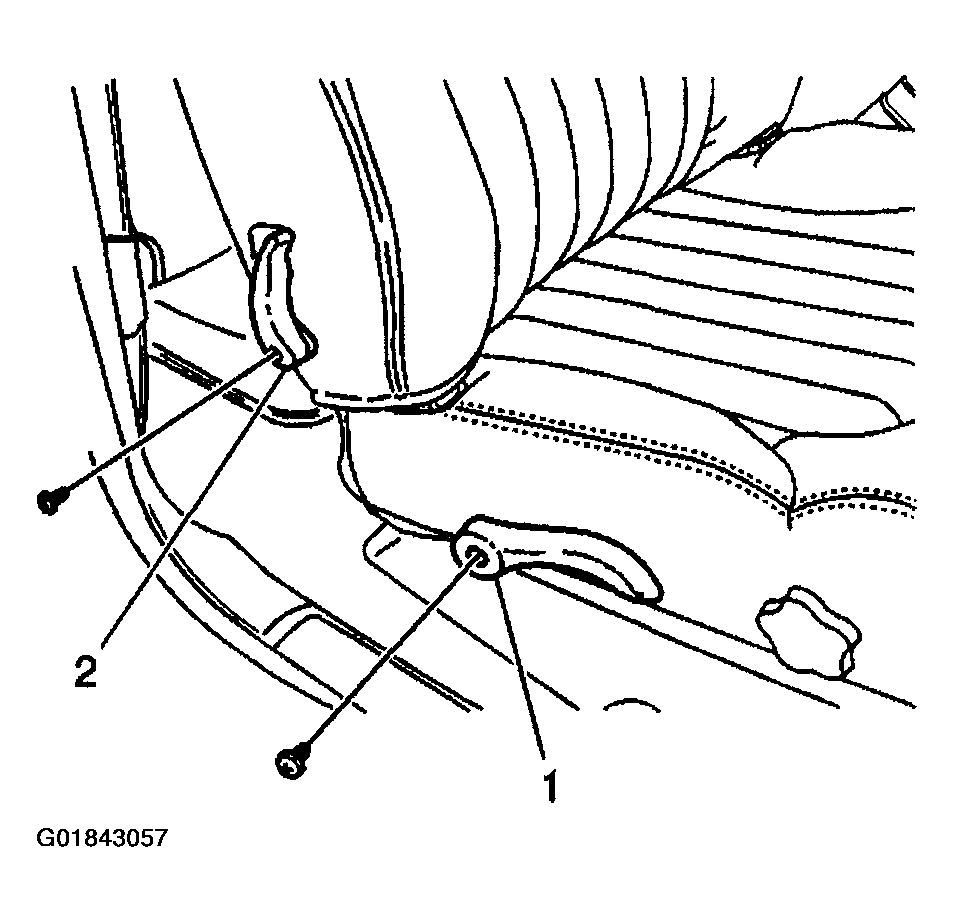

    Fig 1: Locating Front Seat Back Recliner Handle
    G01843057Courtesy of GENERAL MOTORS CORP.
