Installation Procedure

  1. Install the recliner handle (1) to the seat bottom.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
  2. Install the retaining screw to secure the handle.

    Tighten

    Tighten the handle retaining screw to 1.5 N.m (14 lb in).

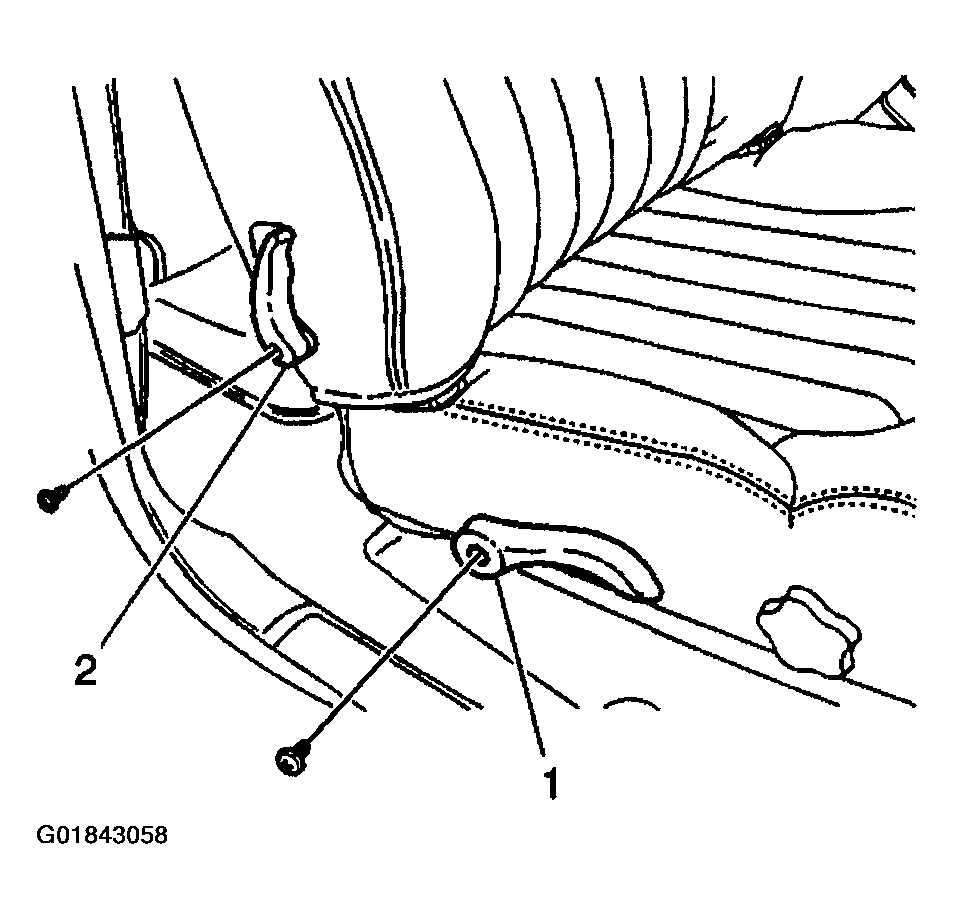

    Fig 1: Locating Front Seat Back Recliner Handle
    G01843058Courtesy of GENERAL MOTORS CORP.
