Removal Procedure

  1. Fold down the rear seat to access the rear seatback filler panel retaining nuts.
  2. Remove the rear seatback filler panel retaining nuts.

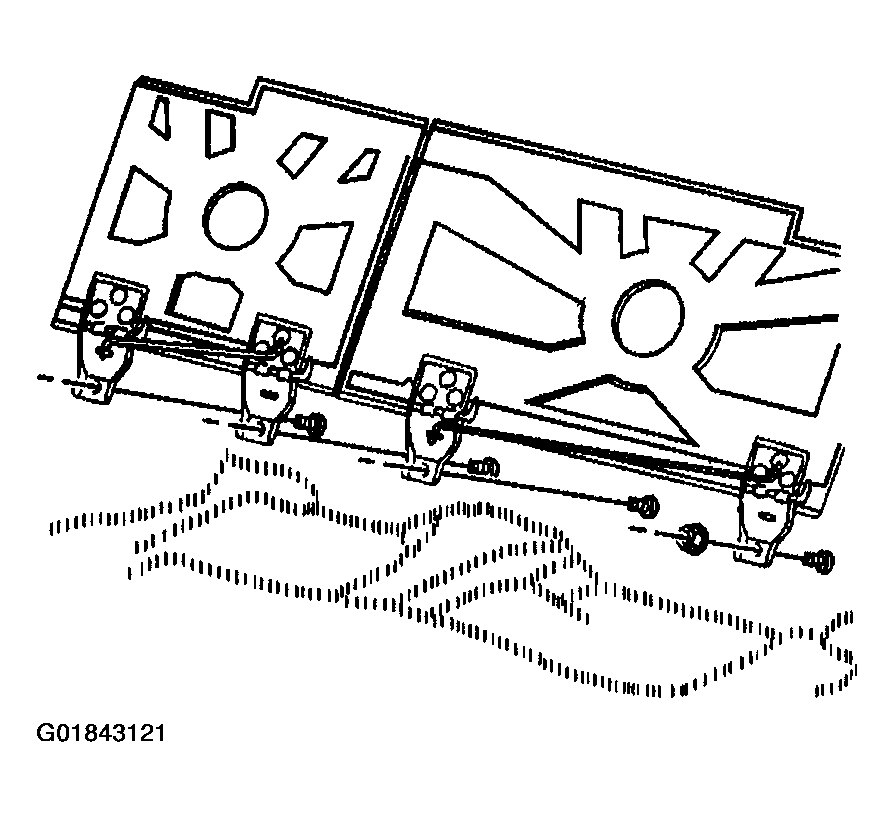

    Fig 1: Locating Rear Seatback Filler Panel Retaining Nuts
    G01843121Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear seatback filler panel.
