Installation Procedure

  1. Install the rear seatback filler panel.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
  2. Install the rear seatback filler panel retaining nuts.

    Tighten

    Tighten the rear seatback filler panel retaining nuts to 80 N.m (59 lb ft).

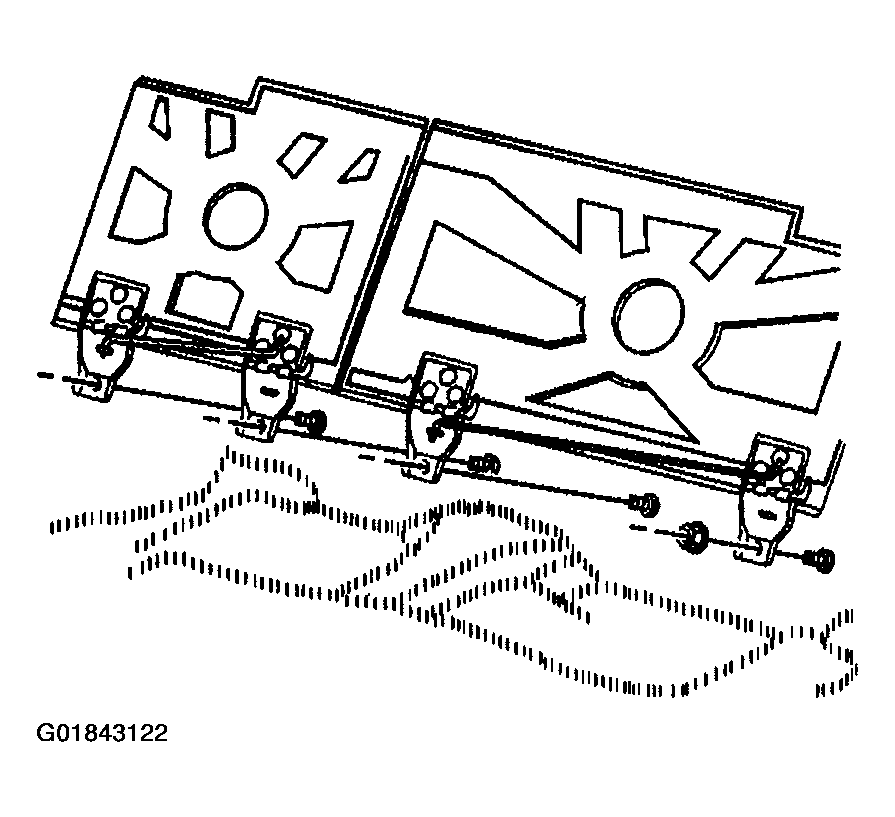

    Fig 1: Locating Rear Seatback Filler Panel Retaining Nuts
    G01843122Courtesy of GENERAL MOTORS CORP.
