Removal Procedure

  1. Remove the head restraint, if equipped, from the seat back. Refer to HEAD RESTRAINT REPLACEMENT - FRONT SEAT .
  2. Remove the EZ entry release handle, if equipped, from the seat back. Refer to EZ ENTRY SEAT MANUAL RELEASE KNOB REPLACEMENT .
  3. Separate the J-strip at the base of the seat back.

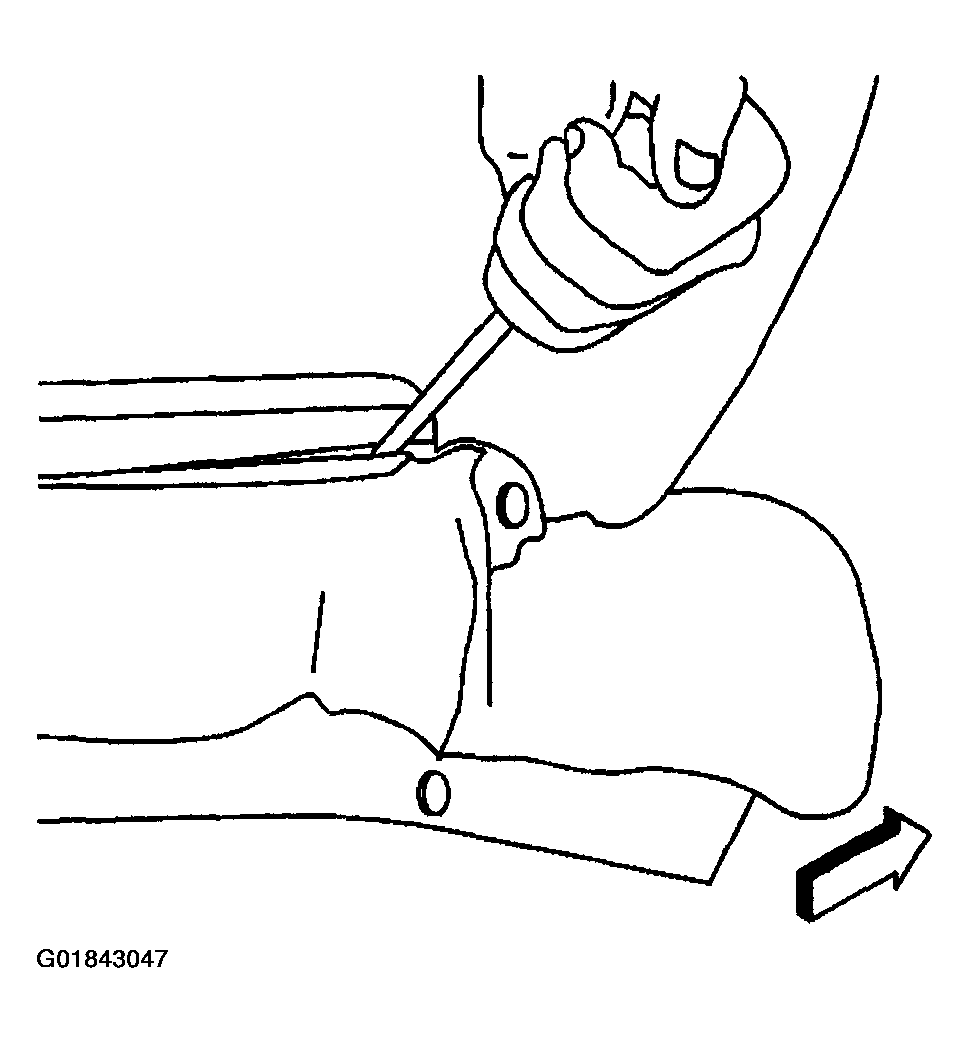

    Fig 1: Locating Seat Back J-Strip At Base
    G01843047Courtesy of GENERAL MOTORS CORP.
  4. Remove the seat cover from the pad by sliding the cover upward off the seat back.
  5. Remove the seat back cardboard by unhooking the plastic clips from the lumber support.
    Fig 2: Locating Seat Back Cardboard Plastic Clips
    G01843048Courtesy of GENERAL MOTORS CORP.
  6. Separate the seat back pad from the seat back frame.

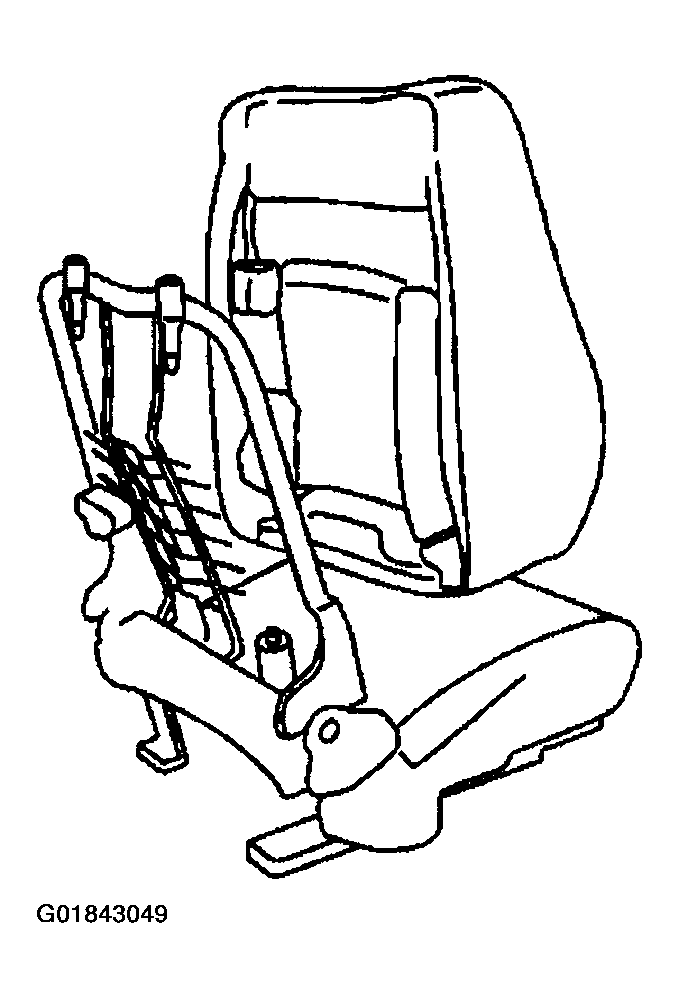

    Fig 3: Identifying Seat Back Pad & Seat Back Frame
    G01843049Courtesy of GENERAL MOTORS CORP.
