Installation Procedure

  1. Install the seat back pad onto the seat back frame.

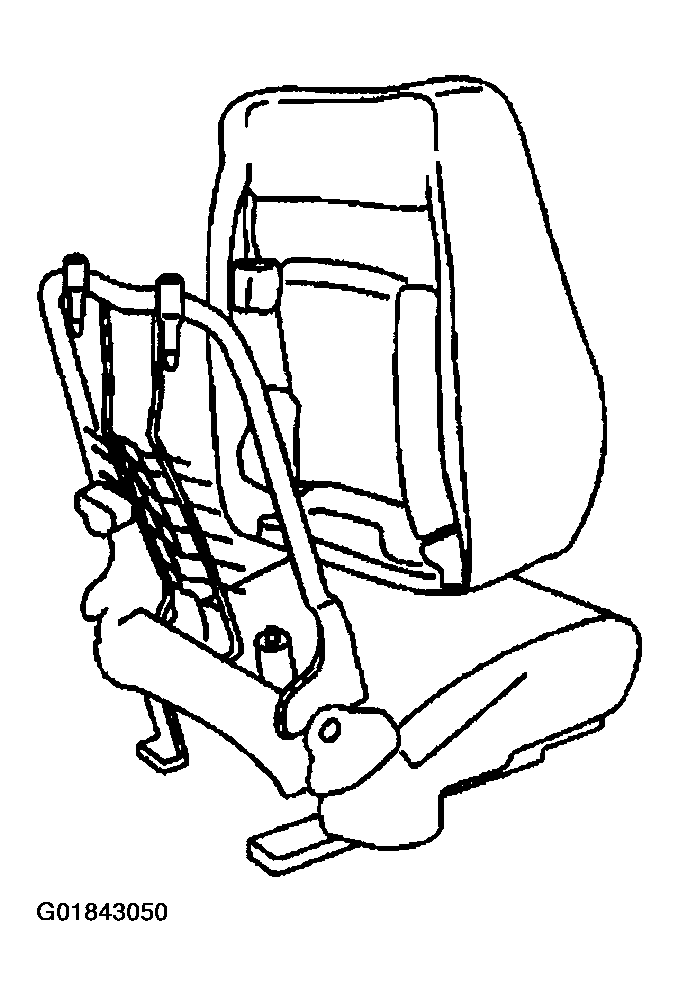

    Fig 1: Identifying Seat Back Pad & Seat Back Frame
    G01843050Courtesy of GENERAL MOTORS CORP.
  2. Install the seat back cardboard to the seat by hooking the plastic clips onto the lumbar support.
  3. Pull the seat cover over the entire seat back.
    Fig 2: Locating Seat Back Cardboard Plastic Clips
    G01843051Courtesy of GENERAL MOTORS CORP.
  4. Engage the J-strip at the base of the seat back.
  5. Install the head restraint to the seat back. Refer to HEAD RESTRAINT REPLACEMENT - FRONT SEAT .

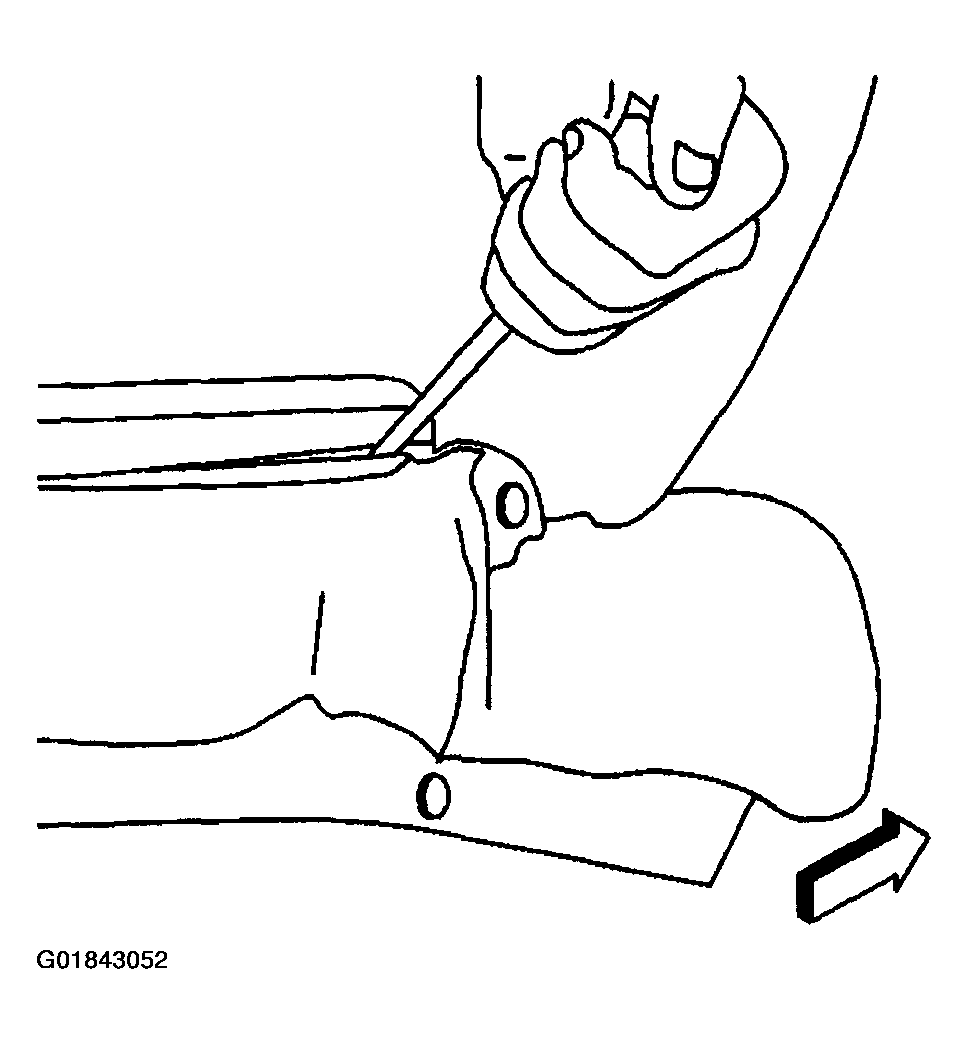

    Fig 3: Locating Seat Back J-Strip At Base
    G01843052Courtesy of GENERAL MOTORS CORP.
