Removal Procedure

  1. Move the seat forward or backwards in order to gain access.
  2. Use a flat-bladed tool in order to carefully pry off the seat adjuster trim covers.

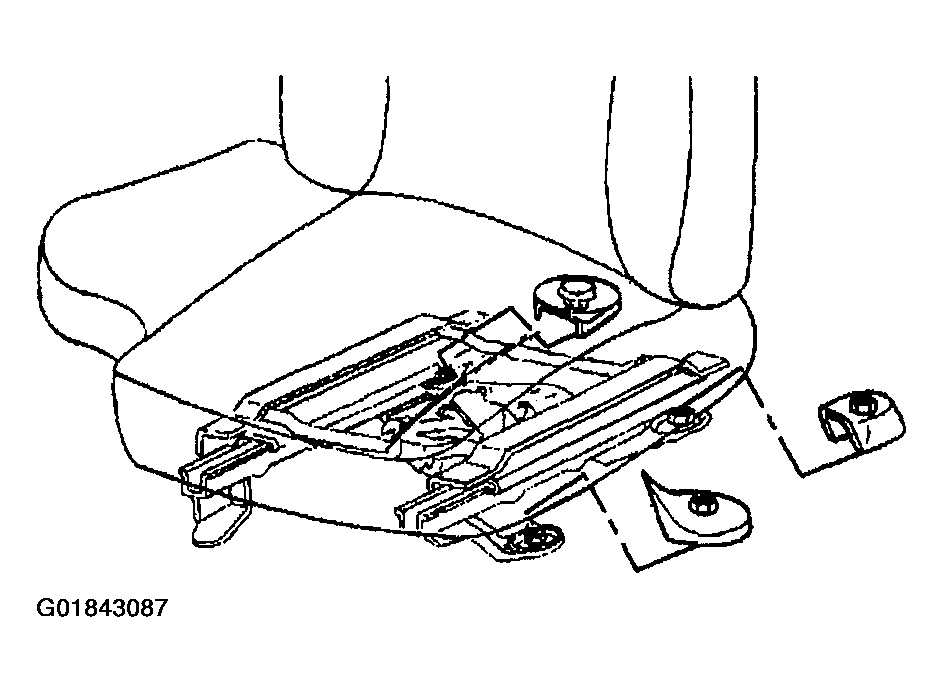

    Fig 1: Locating Front Seat Adjuster Track Cover (Power)
    G01843087Courtesy of GENERAL MOTORS CORP.
