Removal Procedure

  1. Remove the screws from the side covers at the seat assembly.
  2. Remove the side covers.

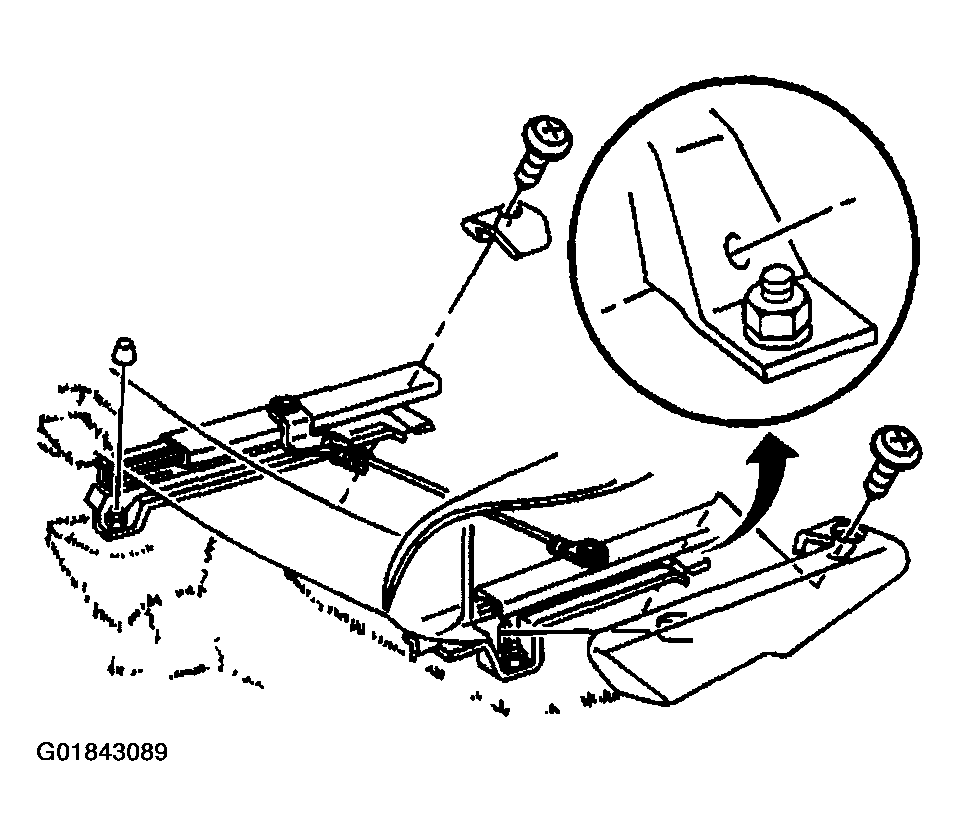

    Fig 1: Locating Front Seat Adjuster Track Cover (Manual)
    G01843089Courtesy of GENERAL MOTORS CORP.
