Installation Procedure

  1. Install the side covers.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
  2. Install the screws to the side covers at the seat assembly.

    Tighten

    Tighten the seat track cover retaining screws to 1.9 N.m (17 lb in).

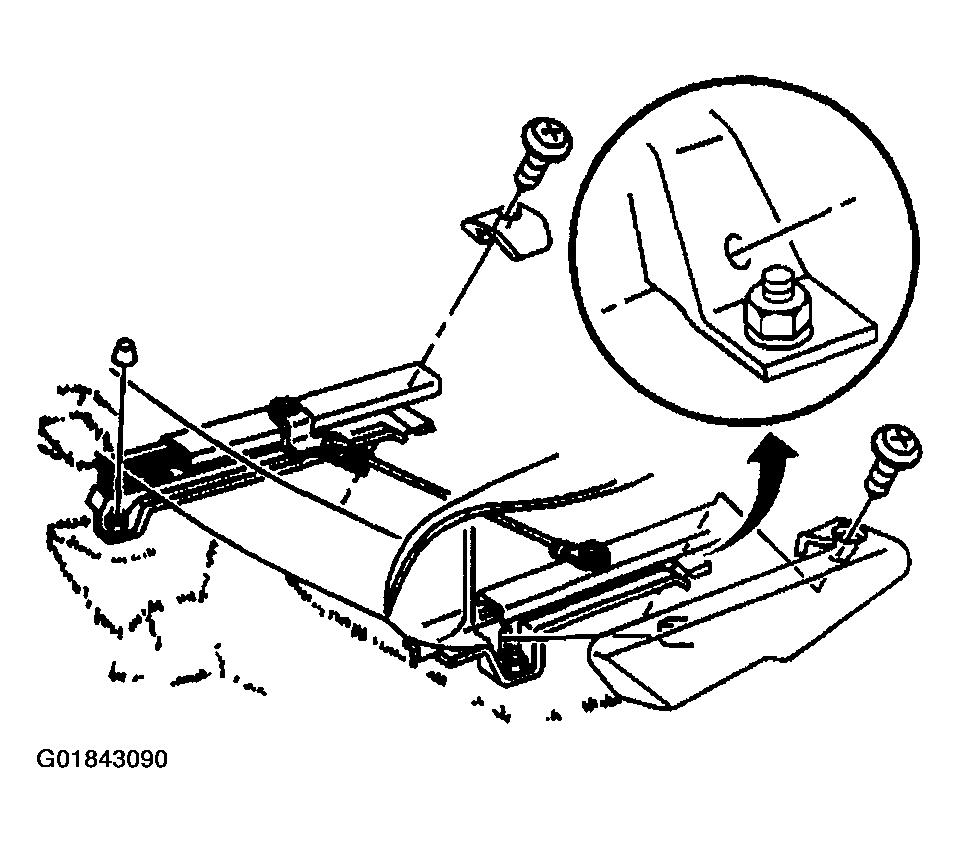

    Fig 1: Locating Front Seat Adjuster Track Cover (Manual)
    G01843090Courtesy of GENERAL MOTORS CORP.
