Removal Procedure

  1. Adjust the seat to the full upward front and rear position.
  2. Remove the seat from the vehicle. Refer to SEAT REPLACEMENT - BUCKET .
  3. Remove the lumbar switch from the seat. Refer to LUMBAR SWITCH REPLACEMENT .
  4. Remove the power seat switch from the seat. Refer to SEAT SWITCH REPLACEMENT - POWER .
  5. Remove the seat belt buckle from the seat.

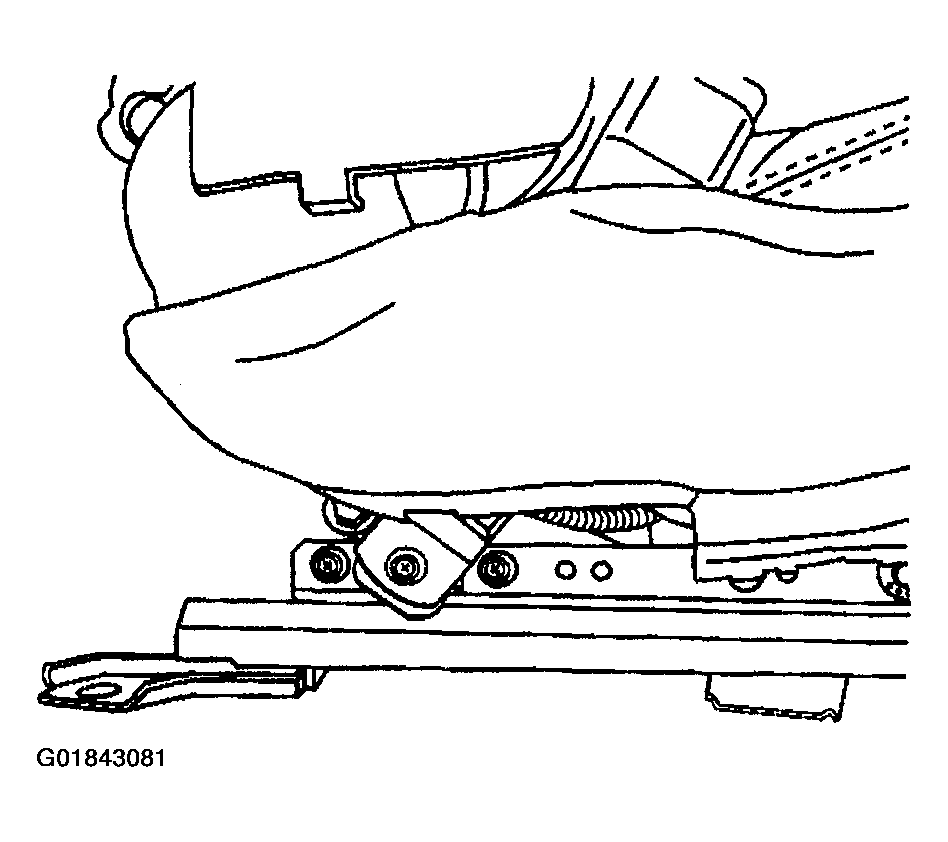

    Fig 1: Locating Seat Belt Buckle Bolt
    G01843081Courtesy of GENERAL MOTORS CORP.
  6. Separate the J-strips from the seat bottom frame.

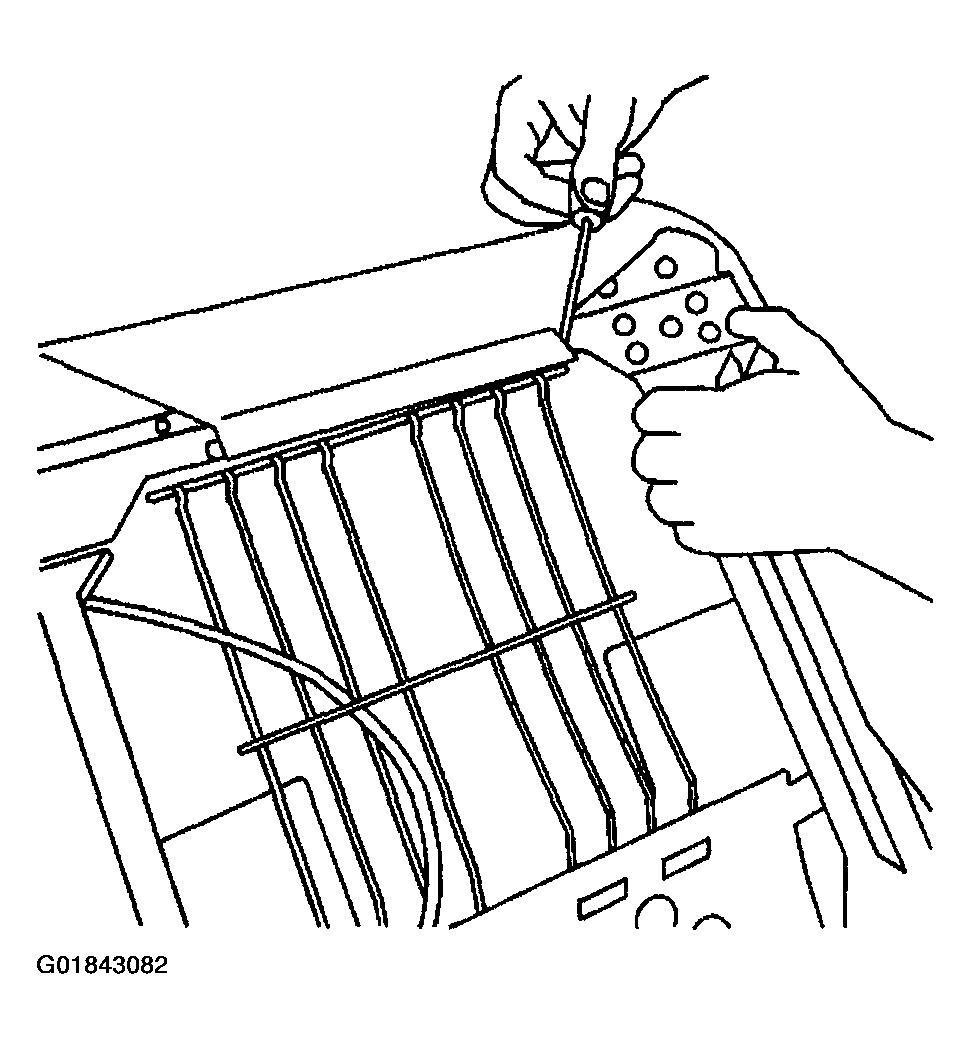

    Fig 2: Locating Seat Bottom Frame J-Strips
    G01843082Courtesy of GENERAL MOTORS CORP.
  7. Pull the seat cover and pad up to expose the seat bottom frame.
  8. Disconnect the electrical connectors as necessary.
  9. Remove the bolts securing the seat back assembly to the seat adjuster assembly.
  10. Remove the seat back assembly.
  11. Remove the 4 nuts securing the seat bottom frame to the seat adjuster assembly.

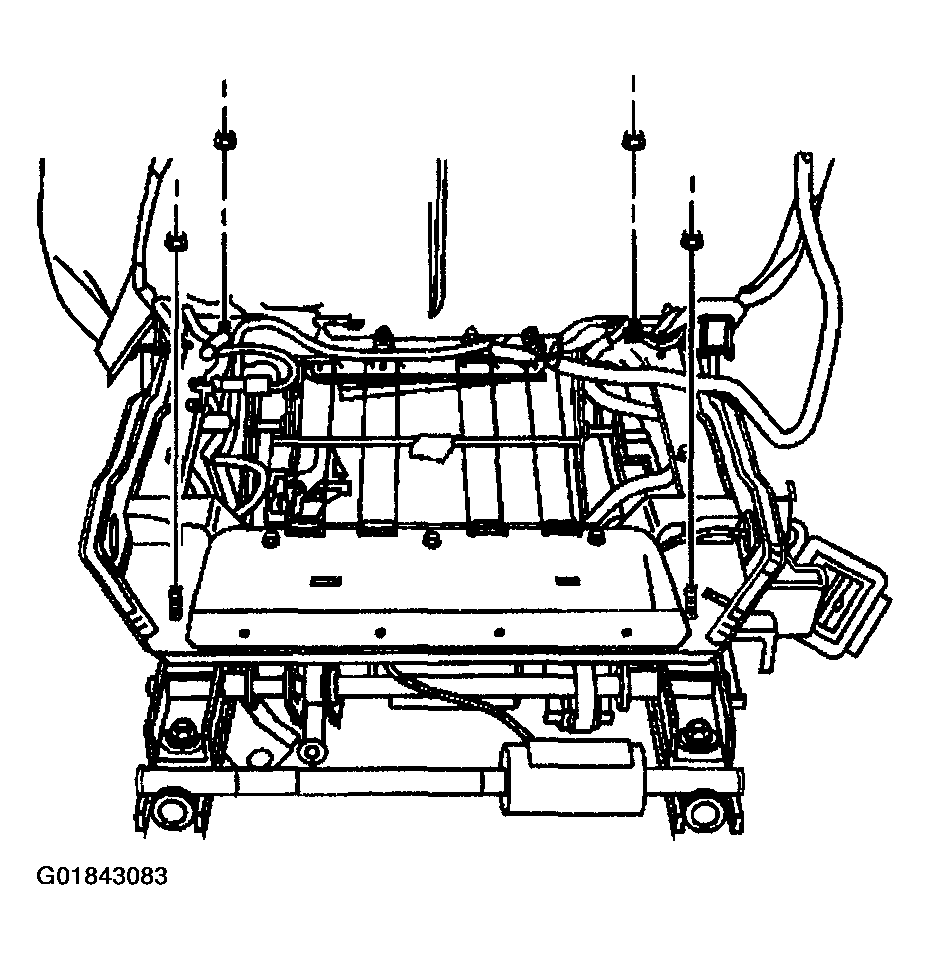

    Fig 3: Locating Seat Bottom Frame-To-Seat Adjuster Assembly Nuts
    G01843083Courtesy of GENERAL MOTORS CORP.
  12. Remove the seat adjuster assembly.
